Features

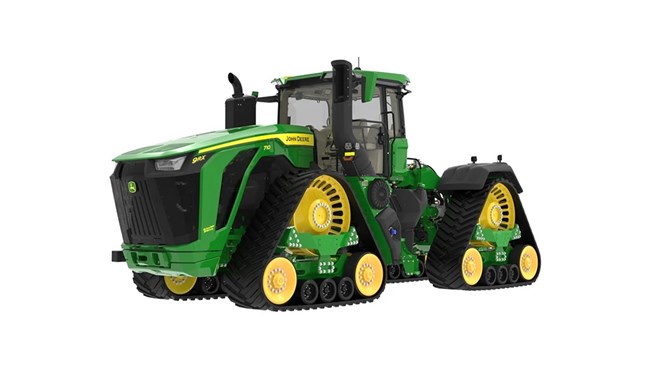

Take on Your Toughest Work with Confidence
When the job demands maximum pull and performance, 9 Series tractors deliver the power, durability, and traction to keep you moving. Built for heavy draft and high-demand applications, they help you maintain field speed, cover more acres, and work through tough conditions—so you can stay on schedule when timing matters most.
Keep Big Tools Moving Efficiently
Wide implements and high-speed operations push equipment to its limits. John Deere's 9 Series tractors are designed to maintain consistent performance under load, with the power, hydraulics, and traction needed to keep large tools operating at peak efficiency - helping you reduce bottlenecks, improve productivity, and get more done in every pass.
Turn Power into Predictable Performance
Productivity isn’t just about horsepower - it’s about how consistently you can apply it. 9 Series tractors combine integrated technology, precision capabilities, and reliable performance to help you work with confidence. From the cab to the cloud, you can monitor performance, document work, and make better decisions across your operation.
Specifications
Rear Axle
| Rear Differential Lock | Full-locking electrohydraulic |
| Final Drive | Outboard planetary with three planetary gears |
Hydraulics
| Hydraulic System Type | Axial piston, closed-center, pressure-and-flow compensated, naturally-aspirated |
| Pump Rated Output | Triple: 636 L/min (168 gpm) |
| Number of Rear Selective Control Valves (SCVs) | Six 1.9-cm (3/4-in.) couplers |
| Available Flow at a Single Rear SCV | 1.9-cm (3/4-in.) couplers: 180 L/min (44 gpm) |
| SCV Control | Electronic |
Dimensions & Weights
| Wheelbase | 182.4 in. |
| Wheelbase | 4620 mm |
| Base Machine Weight | 74000 lb. |
| Base Machine Weight | 33500 kg |
| Overall Length | 349.2 in. |
| Overall Length | 8869 mm |
| Drawbar Ground Clearance | 14.1 in. |
| Drawbar Ground Clearance | 359 mm |
| Maximum Ballast Level | 76000 lb. |
| Maximum Ballast Level | 34500 kg |
Engine
| Engine Make | John Deere |
| Engine Model | JD18 |
| Engine Family | VJDXL18.0342 |
| Emissions Certifications | Final Tier 4 (FT4) / Stage V Compliant Diesel Engine |
| Displacement | 1098 cu in. |
| Displacement | 18 L |
| Aspiration | Dual turbochargers in series; Primary fixed displacement turbocharger and secondary wastegated turbocharger, air-to-air aftercooling, and cooled exhaust gas recirculation (EGR) |
| Number of Cylinders | 6 |
| Cylinder Liners | Wet-sleeve |
| Aftertreatment Type | Exhaust Gas Recirculation (EGR) - No Diesel Exhaust Fluid (DEF) used |
| Rated Engine Speed | 1900 rpm |
| Rated Engine Power | 700 hp |
| Rated Engine Power | 522 kW |
| Rated Engine Power | 710 PS |
| Maximum Engine Power | 770 hp |
| Maximum Engine Power | 574 kW |
| Maximum Engine Power | 781 PS |
| Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) | 781 hp |
| Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) | 574 kW |
| Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) | 791 PS |
| Maximum Engine Torque | At 1400 rpm: 3622 Nm / 2671 lb-ft |
| Power Bulge | 10 % |
| Fuel Type | Diesel |
| Alternative Fuel Type | B30 Diesel Compatible |
| Torque Rise | 38 % |
Electrical System
| Battery Voltage | 12 V |
| Battery Cold Cranking Amps | 4750 CCA |
| Alternator Capacity | 330 amp |
| Working Lights | 18-24 LED |
| Driving Lights | LED |
Operator Station
| Seat Suspension | Air seat |
| Degree of Seat Swivel, Left Hand | 25 degree (angle) |
| Degree of Seat Swivel, Right Hand | 40 degree (angle) |
| Cab Suspension | Standard |
| Instructional Seat | Standard |
| Primary Display | G5ᴾˡᵘˢ CommandCenter™: 32.5 cm / 12.8 in. |
| Radio | Varies by comfort and convenience package |
| Inner Cab Volume | 119 cu ft |
| Inner Cab Volume | 3.37 m³ |
| Cab Glass Area | 73.81 sq ft |
| Cab Glass Area | 6.86 m² |
Capacities
| Fuel Tank Capacity | 515 gal. |
| Fuel Tank Capacity | 1952 L |
| Cooling System Capacity | 30.9 gal. |
| Cooling System Capacity | 117 L |
| Transmission - Hydraulic System | 53 gal. |
| Transmission - Hydraulic System | 201 L |
| Crankcase Oil Volume | 18.9 gal. |
| Crankcase Oil Volume | 71.5 L |
Transmission
| Transmission Type | John Deere e21™ 21-speed PowerShift™; 21F, 11R with Efficiency Manager™ |
| Maximum Speed Forward | 40 km/h / 25 mph |
Steering & Brakes
| Steering Type | John Deere ActiveCommand Steering (ACS™) |
Technology Integration
| Guidance | Integrated AutoTrac™ |
| Connectivity | Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination) |
| Remote Diagnostics | Available with activated JDLink hardware and activations |
Drawbar
| Drawbar Category | Drawbar support for short scraper drawbars |
Additional Information
| Country of Manufacture | USA |
| Date Collected | 2025_04_03T00:00:00.0000008 |
Machine Configuration
| Wheel or Track Configuration | 4-Track |
| Drive Type | 4WD |
Front Axle
| Front Axle Differential Lock | Full-locking electrohydraulic |
Tracks
| Track Drive Type | Camso® Scraper 6500 (MICHELIN BIBTRACK 250 SCR) Positive Drive |
| Track Width | 762 mm / 30 in. |
| Number Of Mid Rollers | Three |
