Features

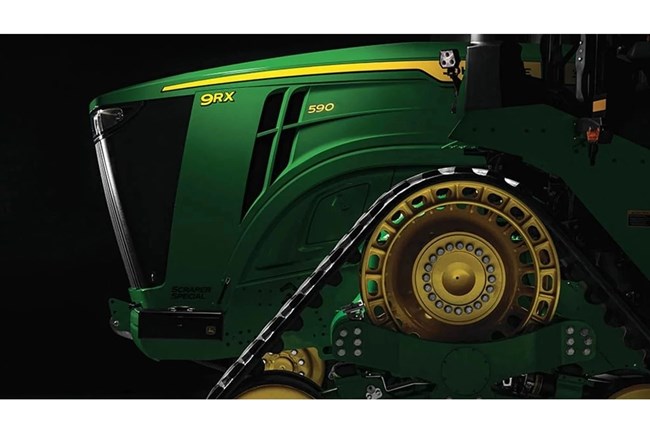

Take on Your Toughest Work with Confidence
When the job demands maximum pull and performance, 9 Series tractors deliver the power, durability, and traction to keep you moving. Built for heavy draft and high-demand applications, they help you maintain field speed, cover more acres, and work through tough conditions—so you can stay on schedule when timing matters most.
Keep Big Tools Moving Efficiently
Wide implements and high-speed operations push equipment to its limits. John Deere's 9 Series tractors are designed to maintain consistent performance under load, with the power, hydraulics, and traction needed to keep large tools operating at peak efficiency - helping you reduce bottlenecks, improve productivity, and get more done in every pass.
Turn Power into Predictable Performance
Productivity isn’t just about horsepower - it’s about how consistently you can apply it. 9 Series tractors combine integrated technology, precision capabilities, and reliable performance to help you work with confidence. From the cab to the cloud, you can monitor performance, document work, and make better decisions across your operation.
Specifications
Rear Axle
| Rear Differential Lock | Full-locking electrohydraulic |
| Final Drive | Bull gear and double idler with floating pinion |
Hydraulics
| Hydraulic System Type | Closed-center, pressure-and-flow compensated |
| Pump Rated Output | 416 L/min (110 gpm) |
| Number of Rear Selective Control Valves (SCVs) | Standard: four 1.9-cm (3/4-in.) deluxe; Optional: six 1.9-cm (3/4-in.) deluxe |
| Available Flow at a Single Rear SCV | 1.9-cm (3/4-in.) couplers: 170 L/min (45 gpm) |
| SCV Control | Electronic |
Dimensions & Weights
| Wheelbase | 162.5 in. |
| Wheelbase | 4128 mm |
| Base Machine Weight | 56714 lb. |
| Base Machine Weight | 25779 kg |
| Overall Length | 327.1 in. |
| Overall Length | 8309 mm |
| Drawbar Ground Clearance | 12.2 in. |
| Drawbar Ground Clearance | 311 mm |
| Maximum Ballast Level | 60000 lb. |
| Maximum Ballast Level | 27216 kg |
Engine
| Engine Make | John Deere |
| Engine Model | JD14 |
| Engine Family | VJDXL13.5334 |
| Emissions Certifications | Final Tier 4 (FT4) |
| Displacement | 827 cu in. |
| Displacement | 13.6 L |
| Aspiration | Dual series turbocharger with fixed geometry first stage and variable geometry second stage; air-to-air aftercooling and cooled exhaust gas recirculation (EGR) |
| Number of Cylinders | 6 |
| Cylinder Liners | Wet-sleeve |
| Aftertreatment Type | Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR) |
| Rated Engine Speed | 2100 rpm |
| Rated Engine Power | 582 hp |
| Rated Engine Power | 434 kW |
| Rated Engine Power | 590 PS |
| Maximum Engine Power | 640 hp |
| Maximum Engine Power | 477 kW |
| Maximum Engine Power | 649 PS |
| Maximum Engine Torque | At 1550 rpm: 2723 Nm / 2008 lb-ft |
| Power Bulge | 10 % |
| Fuel Type | Diesel |
| Alternative Fuel Type | B30 Diesel Compatible |
| Torque Rise | 38 % |
Electrical System
| Battery Voltage | 12 V |
| Battery Cold Cranking Amps | 2850 CCA |
| Alternator Capacity | 250 amp (standard), 330 amp (optional) |
| Working Lights | 18-24 LED |
| Driving Lights | LED |
Operator Station
| Seat Suspension | Air seat |
| Degree of Seat Swivel, Left Hand | 25 degree (angle) |
| Degree of Seat Swivel, Right Hand | 40 degree (angle) |
| Cab Suspension | Standard |
| Instructional Seat | Standard |
| Primary Display | G5ᴾˡᵘˢ CommandCenter™: 32.5 cm / 12.8 in. |
| Radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna; Optional: Touchscreen radio |
| Inner Cab Volume | 115 cu ft |
| Inner Cab Volume | 3.27 m³ |
| Cab Glass Area | 71.47 sq ft |
| Cab Glass Area | 6.64 m² |
Capacities
| Fuel Tank Capacity | 400 gal. |
| Fuel Tank Capacity | 1514 L |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 31.7 gal. |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 120 L |
| Cooling System Capacity | 14.9 gal. |
| Cooling System Capacity | 56.5 L |
| Transmission - Hydraulic System | 59 gal. |
| Transmission - Hydraulic System | 223 L |
| Crankcase Oil Volume | 16.9 gal. |
| Crankcase Oil Volume | 64 L |
Transmission
| Transmission Type | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™ |
| Maximum Speed Forward | 40 km/h / 25 mph |
Front Axle
| Front Axle Type | Diameter: 120 x 3048 mm / 4.72 x 120 in. |
| Front Axle Differential Lock | Full-locking electrohydraulic |
Steering & Brakes
| Steering Type | Standard: Hydraulic power steering; Optional: ActiveCommand Steering (ACS™) |
Drawbar
| Drawbar Category | Drawbar support for short scraper drawbars |
Technology Integration
| Connectivity | Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination) |
| Remote Diagnostics | Available with activated JDLink hardware and activations |
Additional Information
| Country of Manufacture | USA |
| Date Collected | 2025_04_03T00:00:00.0000007 |
Machine Configuration
| Wheel or Track Configuration | 4-Track |
| Drive Type | 4WD |
Tracks
| Track Drive Type | Camso Scraper 6500 (MICHELIN BIBTRACK 250 SCR) Positive Drive |
| Track Width | 762 mm / 30 in. |
| Number Of Mid Rollers | Two |
