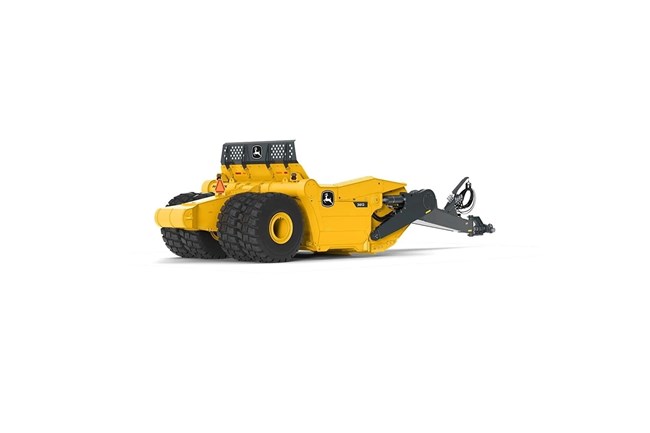

John Deere 3812 Direct Hitch
Double tap to zoom
3812 Direct Hitch
Scraper Systems
Overview:
The John Deere 3812 Gooseneck Scraper ADT-Pulled Scraper Pan helps to maximize earthmoving efficiency, offering versatility and productivity by efficiently handling diverse construction tasks from road and mining projects to landfill applications with ease, while helping to reducing labor and operational costs.
- Struck Capacity: 19.2 m³ (25.1 cu. yd.)
- Heaped Capacity: 29.1 m³ (38.0 cu. yd.)
- Bowl Width: 3656 mm (12 ft. 0 in.)
- Efficient Ejector System and Maneuverability
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Versatility in Applications
A John Deere scraper offers versatility in construction and mining applications. It efficiently handles material excavating, spreading, and grading, proving to be an essential machine in any construction fleet. Its capability to work with various materials makes it ideal for diverse operational needs, enhancing productivity.
One Machine, One Operator, A Lot of Material
The John Deere scraper system allows for efficient material movement with reduced labor and investment. It enables one operator to load, transport, and spread materials, reducing the need for additional equipment. This independent earthmoving system impacts fuel consumption positively and lowers daily operating costs.
Top-Loading Scrapers for Productivity
John Deere scrapers are built to withstand harsh top-loading conditions, enabling higher productivity across various applications. With heavily shielded hydraulic components, the design accommodates top-loading, minimizing risks and optimizing the performance of the hydraulic system for efficient operation.
Specifications
Hydraulics
| Minimum Flow Required | 314.16 L/min |
| Minimum Flow Required | 83 gpm |
| Minimum Pressure Required | 280 bar |
| Minimum Pressure Required | 4061.06 psi |
Weight
| Approximate Shipping Weight | 48898 lb. |
| Approximate Shipping Weight | 22180 kg |
Dimensions
| Overall Height | 11.91 ft |
| Overall Height | 3.56 m |
| Bowl Width | 3.91 m |
| Bowl Width | 12.83 ft |
| Bowl Length | 3.62 m |
| Bowl Length | 11.83 ft |
Scraper Weight Distribution
| Tongue | 26 % |
| Wheels | 74 % |
Horsepower Recommendations
| Minimum Horsepower | 710 hp |
| Minimum Horsepower | 529.1 kW |
| Maximum Horsepower | 574.3 kW |
| Maximum Horsepower | 770 hp |
Capacity
| Struck Capacity | 25.1 cu yd |
| Heaped Capacity | 38 cu yd |
| Heaped Capacity | 29.05 m³ |
| Struck Capacity | 19.19 m³ |
Loading Type
| Push Loading | Yes |
| Direct Loading | Yes |
| Top Loading | Yes |
Tires
| Tire Size - Standard | 29.5R25 |
| Number Of Tires Per Scraper | 4 |
Additional Equipment
| Drawbar Hitch Adapters | Optional |
| Rear Bumper | Standard |
Blades and Router
| Drop Center Configuration | 3-in. (optional), 6-in. (standard), 6-in. HD (optional), Serrated (optional) |
| Straight Blade Configuration | Optional |
Hitches and Drawbars
| Special Tractor Drawbar Required | Yes |
| Hitch Type | Four-Hook Short Drawbar |
Warranty
| Structural Warranty | 36 months |
| Full Warranty | 12 months |
