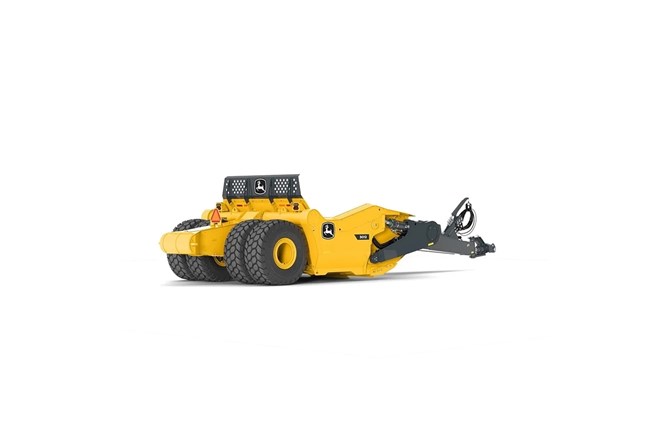

John Deere 3012
Double tap to zoom
3012
Scraper Systems
Overview:
The John Deere 3012 Direct Hitch Scraper 4-Tire helps to maximize productivity by enabling one operator to efficiently load, transport, and spread a large volume of materials using a single machine, reducing labor and operational costs in construction, mining, and development projects.
- Struck Capacity: 15.8 m³ (20.7 cu. yd.)
- Heaped Capacity: 22.9 m³ (30.0 cu. yd.)
- Bowl Width: 3656 mm (12 ft. 0 in.)
- Efficient Load and Unload Mechanism
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

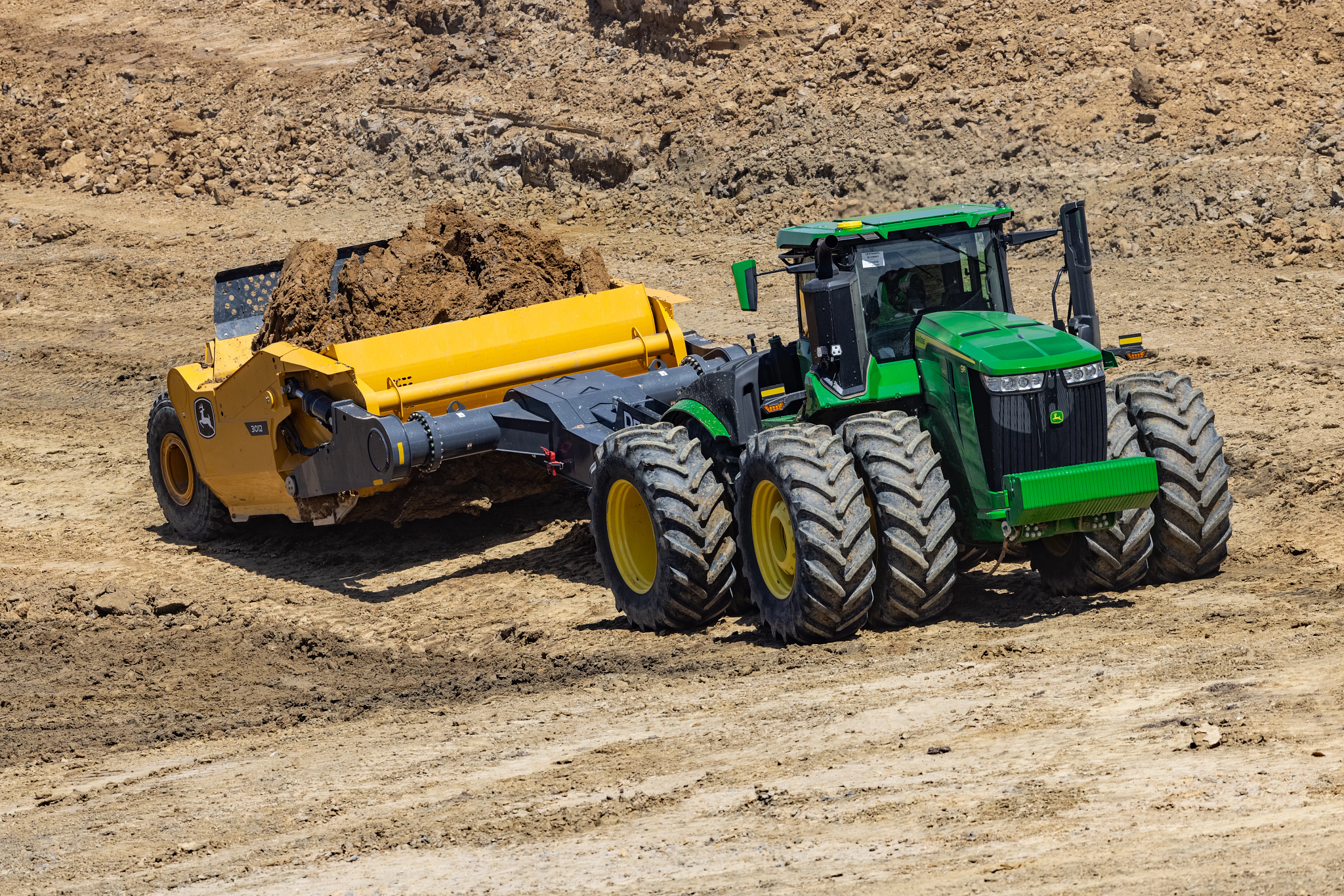

One Machine and One Operator, A Lot of Material
The John Deere scraper system allows for efficient material movement with reduced labor and investment. It enables one operator to load, transport, and spread materials, reducing the need for additional equipment. This independent earthmoving system impacts fuel consumption positively and lowers daily operating costs.

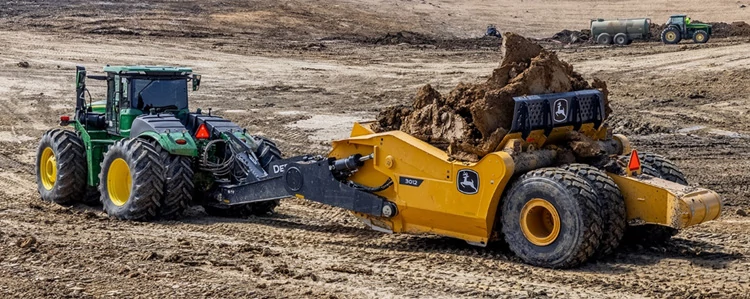

Top-Loading Scrapers Increase Productivity
John Deere scrapers are built to withstand harsh top-loading conditions, enabling higher productivity across various applications. With heavily shielded hydraulic components, the design accommodates top-loading, minimizing risks and optimizing the performance of the hydraulic system for efficient operation.

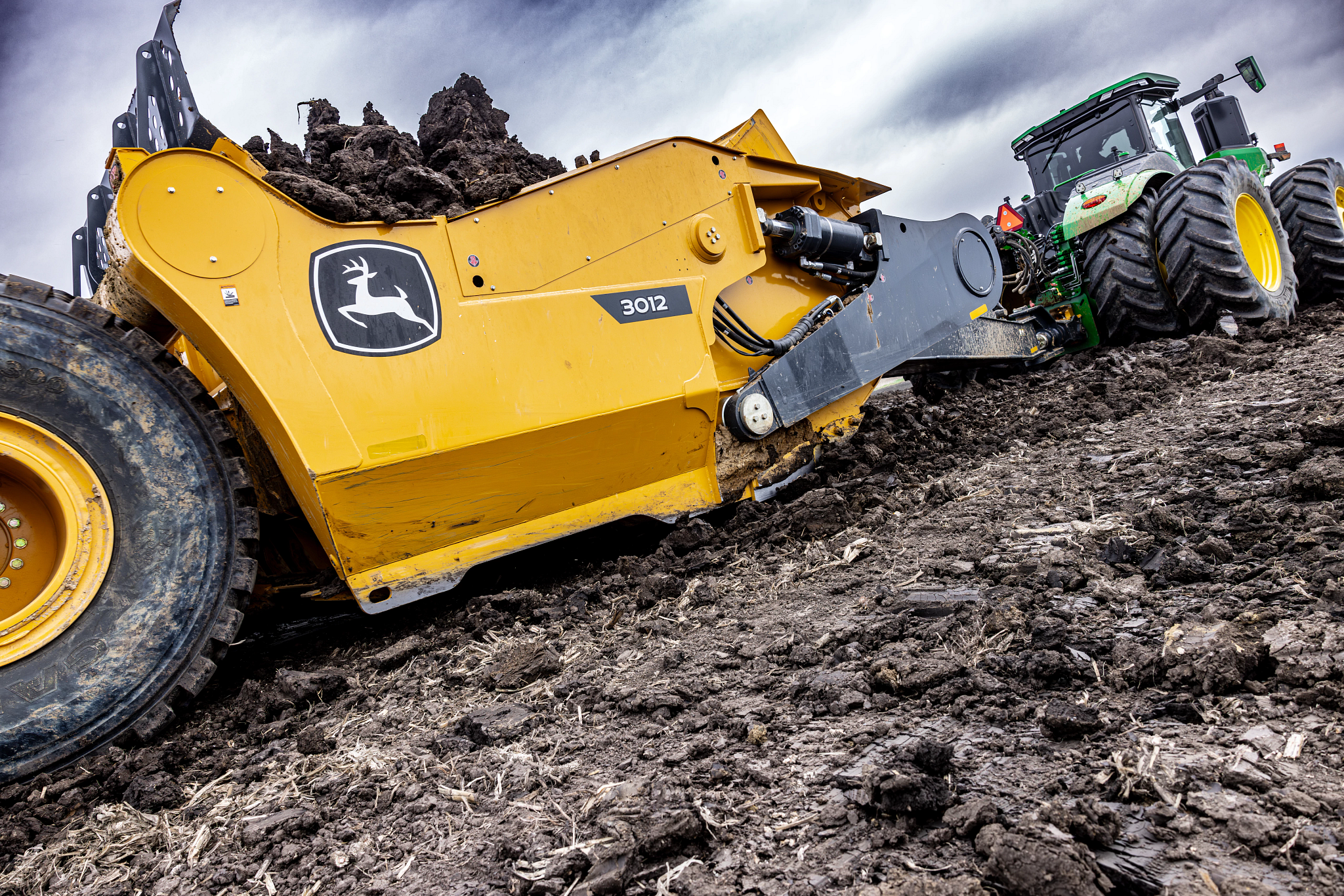

Versatile and Productive in Many Applications
A John Deere scraper offers versatility in construction and mining applications. It efficiently handles material excavating, spreading, and grading, proving to be an essential machine in any construction fleet. Its capability to work with various materials makes it ideal for diverse operational needs, enhancing productivity.
Specifications
Hydraulics
| Minimum Flow Required | 169.95 L/min |
| Minimum Flow Required | 45 gpm |
| Minimum Pressure Required | 199.98 bar |
| Minimum Pressure Required | 2900.47 psi |
Weight
| Approximate Shipping Weight | 38200 lb. |
| Approximate Shipping Weight | 17327 kg |
Dimensions
| Overall Height | 9.5 ft |
| Overall Height | 2.9 m |
| Bowl Width | 3.66 m |
| Bowl Width | 12 ft |
| Bowl Length | 3 m |
| Bowl Length | 9.83 ft |
Scraper Weight Distribution
| Tongue | 23 % |
| Wheels | 77 % |
Horsepower Recommendations
| Minimum Horsepower | 450 hp |
| Minimum Horsepower | 335.6 kW |
| Maximum Horsepower | 428.9 kW |
| Maximum Horsepower | 575 hp |
Capacity
| Struck Capacity | 20.7 cu yd |
| Heaped Capacity | 30 cu yd |
| Heaped Capacity | 22.94 m³ |
| Struck Capacity | 15.83 m³ |
Loading Type
| Push Loading | Yes |
| Direct Loading | Yes |
| Top Loading | Yes |
Tires
| Tire Size - Standard | 26.5R25 |
| Number Of Tires Per Scraper | 4 |
Additional Equipment
| Drawbar Hitch Adapters | Optional |
| Rear Bumper | Standard |
| Quick-Attach Drawbars | Optional |
Blades and Router
| Adjustable Router Bits | Optional |
| Drop Center Configuration | Optional |
| Straight Blade Configuration | Optional |
| Teeth Configuration | Optional |
| Two Rows Of Blade Bolts | Standard |
Hitches and Drawbars
| Special Tractor Drawbar Required | Yes |
| Hitch Type | Quick-attach |
Warranty
| Structural Warranty | 36 months |
| Full Warranty | 12 months |
