Features
AutoLoad™ System for Smooth Loading and Efficient Operations
An innovation in the earthmoving industry exclusive to John Deere, the AutoLoad feature allows novice and experienced operators alike to be consistently productive while operating John Deere tractors and scrapers with the touch of a button, even if they have never operated tractors and scrapers.
Automate Water Management with iGrade™ Leveling System
The iGrade™ controller automates John Deere’s Surface Water Pro™ Plus system and supports new water management tasks by controlling scraper blade height for grading and distance-based operations. It integrates with existing Precision Ag components and supports four key applications on approved John Deere tractors: Surface Water Pro Plus automation, grade control, distance trip, and plane control.

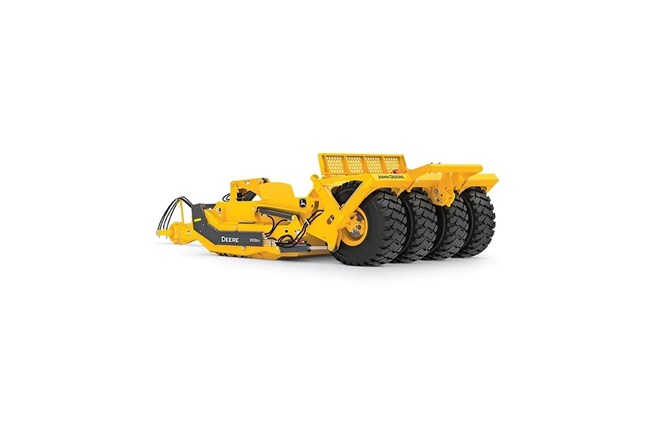

Top-Loading John Deere Scrapers Increase Productivity for All Applications
John Deere scrapers are built to endure the intense impact of top-loading, with a swept-back ejector wall design that improves bowl access and heavily shielded hydraulics for protection. To prevent hydraulic damage during loading, always ensure the scraper blade is lowered and resting on the ground.
Specifications
Hydraulics
| Minimum Flow Required | 94.6 L/min |
| Minimum Flow Required | 25 gpm |
| Size Of Lines And Hoses | 0.75 in. |
| Size Of Lines And Hoses | 1.91 cm |
| Tandem Lines | Standard |
| Minimum Pressure Required | 2500 psi |
| Minimum Pressure Required | 172.4 bar |
Weight
| Approximate Shipping Weight | 25300 lb. |
| Approximate Shipping Weight | 11475 kg |
Dimensions
| Bowl Height | 3.83 ft |
| Bowl Height | 1.17 m |
| Bowl Width | 3.66 m |
| Bowl Width | 12 ft |
| Bowl Length | 2.69 m |
| Bowl Length | 8.83 ft |
Scraper Weight Distribution
| Tongue | 28 % |
| Wheels | 72 % |
Horsepower Recommendations
| Minimum Horsepower | 450 hp |
| Minimum Horsepower | 335.6 kW |
| Maximum Horsepower | 575+ hp |
| Maximum Horsepower | 428.9+ kW |
Capacity
| Struck Capacity | 14 cu yd |
| Heaped Capacity | 21.5 cu yd |
| Heaped Capacity | 16.4 m³ |
| Struck Capacity | 10.7 m³ |
Loading Type
| Push Loading | Not approved |
| Direct Loading | Yes |
| Top Loading | Yes |
| Autoload | Yes |
Precision Leveling
| GPS/Laser Adaptable | Yes |
Warranty
| Extended Warranty | Optional |
| Full Warranty | Standard |
Additional Equipment
| Drawbar Hitch Adapters | Optional |
| Scraper-To-Scraper Quick-Attach | Factory installed only |
| Laser Receiver Bracket | Optional |
| Rear Bumper | Optional |
| Quick-Attach Drawbars | Optional |
| Yoke-Type Drawbars | Optional |
Blades and Router
| Adjustable Router Bits | Standard |
| Drop Center Configuration | Optional |
| Straight Blade Configuration | Standard, 3 piece blades |
| 6-in. Bolt-Hole Spacing | Standard |
| Teeth Configuration | Optional |
| Two Rows Of Blade Bolts | Standard |
Tires
| Tire Size - Standard | 23.5x25 |
| Number Of Tires Per Scraper | 4 |
| Tire Size - Option 1 | 26.5x25 |
Hitches and Drawbars
| Special Tractor Drawbar Required | Yes |
| Hitch Type | Yoke |
