John Deere 2014DE
Double tap to zoom

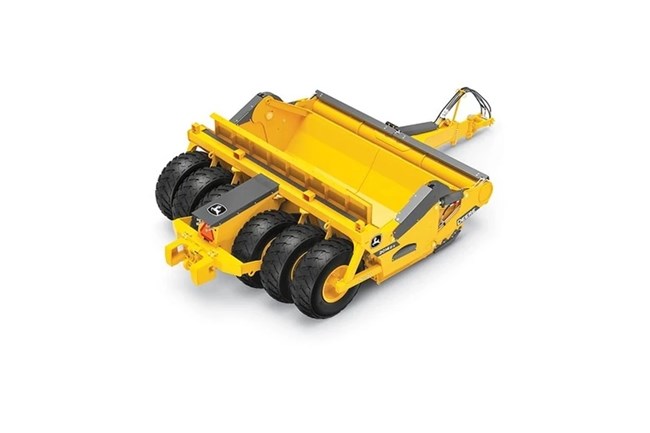

2014DE
Scraper Systems
Overview:

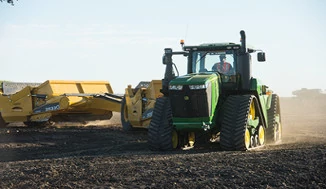

Fully integrated John Deere tractor-scraper systems are built to move more dirt than self-propelled scrapers or competitive tractors and scrapers.
- Struck Capacity: 11.1 m³ (14.6 cu. yd.)
- Heaped Capacity: 15.3 m³ (20.0 cu. yd.)
- Bowl Width: 4.4 m (14 ft. 6 in.)
- AutoLoad™ System for Smooth Loading and Efficient Operation
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Adjustable Cast Router Bits

Cast router bits offer a lifespan 25% greater than previous models with wear indicators and embedded numbers, based on test data, and customer validation. The double-hole design allows for extended use by simply lowering the bit for continued operation. One cast-router bit can be used on both scraper sides.
Half the Cost, 1/3 the Investment

Single-operator scraper system cuts labor and capital needs, saving up to $0.50 per cu yd compared to truck/excavator setups, based on test data, customer validation, and equipment purchase prices; further boost output with 21–24 cu yd tandem/triple scrapers.
High-Strength Standard Blades

Crafted from high-carbon steel, these 406-mm long blades effectively cut through stubborn soils. They feature a unique double-edge design, doubling blade life when rotated. Available in three widths, they optimize precision leveling and penetration in compacted soils.
Specifications
Hydraulics
| Size Of Lines And Hoses | 0.75 in. |
| Size Of Lines And Hoses | 1.9 cm |
| Tandem Lines | Standard |
| Minimum Flow Required | 25 gpm |
| Minimum Flow Required | 94.6 L/min |
| Minimum Pressure Required | 2900 psi |
| Minimum Pressure Required | 199.95 bar |
Weight
| Approximate Shipping Weight | 26500 lb. |
| Approximate Shipping Weight | 12020 kg |
Dimensions
| Overall Height | 7.58 ft |
| Overall Height | 2.3 m |
| Bowl Width | 4.4 m |
| Bowl Width | 14.5 ft |
| Bowl Length | 2.3 m |
| Bowl Length | 7.67 ft |
Scraper Weight Distribution
| Tongue | 26 % |
| Wheels | 74 % |
Additional Equipment
| Yoke-Type Drawbars | Optional |
| Quick-Attach Drawbars | Optional |
| Drawbar Hitch Adapters | Optional |
| Scraper-To-Scraper Quick-Attach | Optional |
| Rear Bumper | Optional |
| Laser Receiver Bracket | Optional |
Tires
| Number Of Tires Per Scraper | 6 |
| Tire Size - Standard | 20.5 x 25 24-ply E3 Radial |
| Tire Size - Option 1 | 20.5 x 25 24 Ply E3 Bias |
Capacity
| Struck Capacity | 14.6 cu yd |
| Struck Capacity | 11.1 m³ |
| Heaped Capacity | 20 cu yd |
| Heaped Capacity | 15.3 m³ |
Loading Type
| Direct Loading | Yes |
| Top Loading | Yes |
| Push Loading | Yes |
| Autoload | Yes |
Precision Leveling
| GPS/Laser Adaptable | Yes |
Blades and Router
| Two Rows Of Blade Bolts | Standard |
| 6-in. Bolt-Hole Spacing | Standard |
| Straight Blade Configuration | Standard |
| Drop Center Configuration | Optional |
| Teeth Configuration | Optional |
| Adjustable Router Bits | Standard |
Hitches and Drawbars
| Hitch Type | Yoke |
| Special Tractor Drawbar Required | Yes |
