John Deere 2010DE
Double tap to zoom
2010DE
Scraper Systems
Overview:

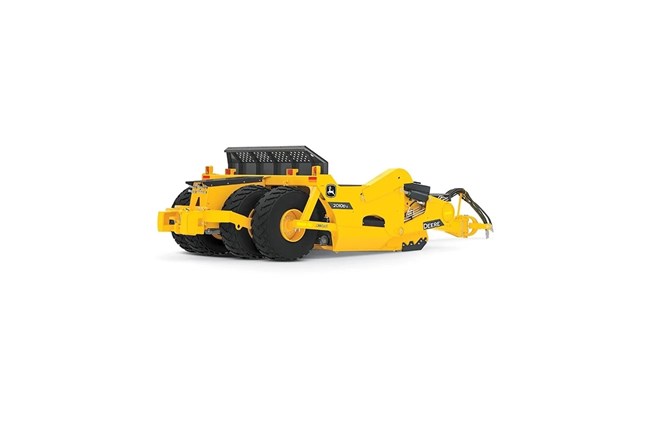

The John Deere 2010DE 4-Tire Ejector Scraper is a versatile and robust earthmoving tool designed for handling a variety of material conditions.
- Struck Capacity: 10.4 m³ (13.6 cu. yd.)
- Heaped Capacity: 15.3 m³ (20.0 cu. yd.)
- Bowl Width: 3.2 m (10 ft. 6 in.)
- Versatile Applications
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Adjustable Cast Router Bits
Cast router bits offer a lifespan 25% greater than previous models with wear indicators and embedded numbers, based on test data, and customer validation. The double-hole design allows for extended use by simply lowering the bit for continued operation. One cast-router bit can be used on both scraper sides.
High-Strength Standard Blades
Crafted from high-carbon steel, these 406-mm long blades effectively cut through stubborn soils. They feature a unique double-edge design, doubling blade life when rotated. Available in three widths, they optimize precision leveling and penetration in compacted soils.
Comprehensive Tire Options
The scraper offers substantial tire options, including the two-tire model with premium rock-lug radial tires. These provide exceptional load-bearing capacity and durability, enhancing flotation in heavy conditions. Various configurations are available to optimize performance in differing ground conditions.
Specifications
Hydraulics
| Size Of Lines And Hoses | 0.75 in. |
| Size Of Lines And Hoses | 1.91 cm |
| Tandem Lines | Standard |
| Minimum Flow Required | 25 gpm |
| Minimum Flow Required | 94.6 L/min |
| Minimum Pressure Required | 2900 psi |
| Minimum Pressure Required | 199.9 bar |
Weight
| Approximate Shipping Weight | 23100 lb. |
| Approximate Shipping Weight | 10480 kg |
Dimensions
| Overall Height | 7.58 ft |
| Overall Height | 2.31 m |
| Bowl Width | 3.2 m |
| Bowl Width | 10.5 ft |
| Bowl Length | 2.79 m |
| Bowl Length | 9.17 ft |
Scraper Weight Distribution
| Tongue | 25 % |
| Wheels | 75 % |
Horsepower Recommendations
| Minimum Horsepower | 360 hp |
| Minimum Horsepower | 268.5 kW |
| Maximum Horsepower | 575+ hp |
| Maximum Horsepower | 428.9+ kW |
Capacity
| Struck Capacity | 13.6 cu yd |
| Struck Capacity | 10.4 m³ |
| Heaped Capacity | 20 cu yd |
| Heaped Capacity | 15.3 m³ |
Loading Type
| Direct Loading | Yes |
| Top Loading | Yes |
| Push Loading | Yes |
| Autoload | Yes |
Precision Leveling
| GPS/Laser Adaptable | Yes |
Warranty
| Full Warranty | Standard (1 year) |
| Extended Warranty | No longer available |
Additional Equipment
| Yoke-Type Drawbars | Optional |
| Quick-Attach Drawbars | Optional |
| Drawbar Hitch Adapters | Optional |
| Scraper-To-Scraper Quick-Attach | Optional |
| Rear Bumper | Optional |
| Laser Receiver Bracket | Optional |
| High-Speed Leveling Skid Pads | Yes |
Blades and Router
| Two Rows Of Blade Bolts | Standard |
| 6-in. Bolt-Hole Spacing | Standard |
| Straight Blade Configuration | Standard |
| Drop Center Configuration | Optional |
| Teeth Configuration | Optional |
| Adjustable Router Bits | Standard |
Tires
| Number Of Tires Per Scraper | 4 |
| Tire Size - Standard | 20.5 X 25 |
| Tire Size - Option 1 | 20.5 X 25 Premium Radial |
Hitches and Drawbars
| Hitch Type | Yoke |
| Special Tractor Drawbar Required | Yes |
