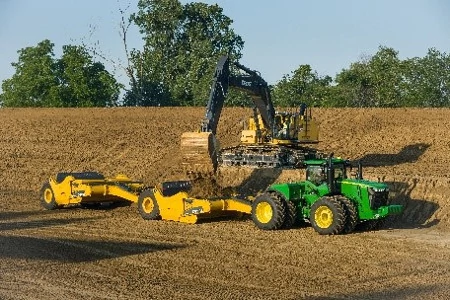

Top-Loading John Deere Scrapers Increase Productivity for All Applications
John Deere scrapers are built to endure the intense impact of top-loading, with a swept-back ejector wall design that improves bowl access and heavily shielded hydraulics for protection. To prevent hydraulic damage during loading, always ensure the scraper blade is lowered and resting on the ground.
Automate Water Management with iGrade™ Leveling System
The iGrade™ controller automates John Deere’s Surface Water Pro™ Plus system and supports new water management tasks by controlling scraper blade height for grading and distance-based operations. It integrates with existing Precision Ag components and supports four key applications on approved John Deere tractors: Surface Water Pro Plus automation, grade control, distance trip, and plane control.
AutoLoad™ System for Smooth Loading and Efficient Operations
An innovation in the earthmoving industry exclusive to John Deere, the AutoLoad feature allows novice and experienced operators alike to be consistently productive while operating John Deere tractors and scrapers with the touch of a button, even if they have never operated tractors and scrapers.
Specifications
Hydraulics
| Size Of Lines And Hoses | 0.75 in. |
| Size Of Lines And Hoses | 1.9 cm |
| Tandem Lines | Standard |
| Minimum Flow Required | 25 gpm |
| Minimum Flow Required | 94.6 L/min |
| Minimum Pressure Required | 2900 psi |
| Minimum Pressure Required | 199.9 bar |
Weight
| Approximate Shipping Weight | 22700 lb. |
| Approximate Shipping Weight | 10297 kg |
Dimensions
| Overall Height | 7.58 ft |
| Overall Height | 2.3 m |
| Bowl Width | 3.66 m |
| Bowl Width | 12 ft |
| Bowl Length | 2.33 m |
| Bowl Length | 7.67 ft |
Scraper Weight Distribution
| Tongue | 24 % |
| Wheels | 76 % |
Horsepower Recommendations
| Minimum Horsepower | 360 hp |
| Minimum Horsepower | 268.5 kW |
| Maximum Horsepower | 575 hp |
| Maximum Horsepower | 428.8 kW |
Capacity
| Struck Capacity | 12 cu yd |
| Struck Capacity | 9.2 m³ |
| Heaped Capacity | 16 cu yd |
| Heaped Capacity | 12.2 m³ |
Loading Type
| Direct Loading | Yes |
| Top Loading | Yes |
| Push Loading | Yes |
| Autoload | Yes |
Precision Leveling
| GPS/Laser Adaptable | Yes |
Warranty
| Full Warranty | Standard (1 year) |
| Extended Warranty | No longer available |
Additional Equipment
| Yoke-Type Drawbars | Optional |
| Quick-Attach Drawbars | Optional |
| Drawbar Hitch Adapters | Optional |
| Scraper-To-Scraper Quick-Attach | Optional |
| Rear Bumper | Optional |
| Laser Receiver Bracket | Optional |
| High-Speed Leveling Skid Pads | Yes |
Blades and Router
| Two Rows Of Blade Bolts | Standard |
| 6-in. Bolt-Hole Spacing | Standard |
| Straight Blade Configuration | Standard |
| Drop Center Configuration | Optional |
| Teeth Configuration | Optional |
| Adjustable Router Bits | Standard |
Tires
| Number Of Tires Per Scraper | 4 |
| Tire Size - Standard | 20.5 x 25 24-ply E3 Radial |
| Tire Size - Option 1 | 20.5 x 25 24 Ply E3 Bias |
Hitches and Drawbars
| Hitch Type | Yoke |
| Special Tractor Drawbar Required | Yes |
