Features
Maximize Productivity with Every Pass

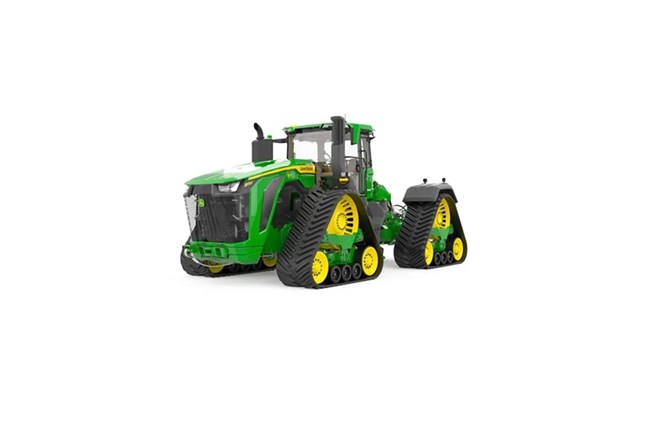

Big tools demand consistent performance to deliver results. HHP 9RX tractors are designed to pull wider implements at higher speeds while maintaining stability and traction in the field. The result is more acres covered per day, fewer passes required, and a more efficient operation that keeps your entire production system moving forward.
Put Advanced Technology to Work at Scale
Productivity at this level requires more than power - it requires precision and control. HHP 9RX tractors integrate advanced technology, automation readiness, and connectivity to help you monitor performance, optimize machine settings, and document every pass. From the cab to the cloud, you can operate with confidence and make smarter decisions across your operation.
Power Through the Toughest Conditions with Confidence
When conditions push equipment to the limit, HHP 9RX tractors deliver the power, traction, and durability to keep you moving. Built for extreme workloads, they maintain speed with the widest tools and toughest soils—helping you stay productive, protect your timeline, and get more done when every acre and every hour matters.
Specifications
Rear Axle
| Rear Differential Lock | Full-locking electrohydraulic |
| Final Drive | Outboard planetary with three planetary gears |
Rear Power Take-Off (PTO)
| PTO Category | 45 mm (1.75 in.) 20-spline, 1000 rpm |
| Rated PTO Power | 335 hp |
| Rated PTO Power | 249 kW |
| Rated PTO Power | 340 PS |
| Engagement Method | Electrohydraulic |
| Number of Splines | 20 |
Hydraulics
| Hydraulic System Type | Axial piston, closed-center, pressure-and-flow compensated, naturally-aspirated |
| Pump Rated Output | Single: 212 L/min (56 gpm); Dual: 424 L/min (112 gpm); Triple: 636 L/min (168 gpm) |
| Number of Rear Selective Control Valves (SCVs) | Base: four 1.3-cm (1/2-in.) couplers; Optional: five or six 1.3-cm (1/2-in.) couplers; Optional: three 1.9-cm (3/4-in.) couplers and three 1.3-cm (1/2-in.) couplers; 7th and 8th SCV options are available as field install kits |
| Available Flow at a Single Rear SCV | 1.3-cm (1/2 in.) couplers: 140 L/min (35 gpm); 1.9-cm (3/4-in.) couplers: 180 L/min (44 gpm) |
| SCV Control | Electronic |
Dimensions & Weights
| Wheelbase | 181.9 in. |
| Wheelbase | 4620 mm |
| Base Machine Weight | 76000 lb. |
| Base Machine Weight | 34473 kg |
| Overall Length | 349.2 in. |
| Overall Length | 8869 mm |
| Drawbar Ground Clearance | 22.3 in. |
| Drawbar Ground Clearance | 567 mm |
| Maximum Ballast Level | 84000 lb. |
| Maximum Ballast Level | 38100 kg |
Engine
| Engine Make | John Deere |
| Engine Model | JD18 |
| Engine Family | VJDXL18.0342 |
| Emissions Certifications | Final Tier 4 (FT4) / Stage V Compliant Diesel Engine |
| Displacement | 1098 cu in. |
| Displacement | 18 L |
| Aspiration | Dual turbochargers in series; Primary fixed displacement turbocharger and secondary wastegated turbocharger, air-to-air aftercooling, and cooled exhaust gas recirculation (EGR) |
| Number of Cylinders | 6 |
| Cylinder Liners | Wet-sleeve |
| Aftertreatment Type | Exhaust Gas Recirculation (EGR) - No Diesel Exhaust Fluid (DEF) used |
| Intelligent Power Management (IPM) | 40 hp at rated engine RPM |
| Rated Engine Speed | 1900 rpm |
| Rated Engine Power | 819 hp |
| Rated Engine Power | 610 kW |
| Rated Engine Power | 830 PS |
| Engine Torque at Rated Speed | 3123 lb-ft |
| Engine Torque at Rated Speed | 4234 Nm |
| Maximum Engine Power | 819 hp |
| Maximum Engine Power | 610 kW |
| Maximum Engine Power | 830 PS |
| Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) | 913 hp |
| Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) | 672 kW |
| Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) | 926 PS |
| Maximum Engine Torque | At 1400 rpm: 4234 Nm / 3123 lb-ft |
| Alternative Fuel Type | B30 Diesel Compatible |
| Power Bulge | 10 % |
| Fuel Type | Diesel |
| Torque Rise | 38 % |
Electrical System
| Battery Voltage | 12 V |
| Battery Cold Cranking Amps | 4750 CCA |
| Alternator Capacity | 330 amp |
| Working Lights | 18 halogen; Optional: 20 or 24 light-emitting diode (LED) |
| Driving Lights | Select Visibility: Halogen: 65 W; Premium and Ultimate Visibility: LED |
Operator Station
| Degree of Seat Swivel, Left Hand | 8 degree (angle) |
| Degree of Seat Swivel, Right Hand | 40 degree (angle) |
| Cab Suspension | Standard |
| Instructional Seat | Standard |
| Primary Display | G5ᴾˡᵘˢ CommandCenter™: 12.8 in. (32.5 cm) |
| Radio | Varies by comfort and convenience package |
| Inner Cab Volume | 119 cu ft |
| Inner Cab Volume | 3.37 m³ |
| Cab Glass Area | 73.81 sq ft |
| Cab Glass Area | 6.86 m² |
Capacities
| Fuel Tank Capacity | 515 gal. |
| Fuel Tank Capacity | 1952 L |
| Cooling System Capacity | 30.9 gal. |
| Cooling System Capacity | 117 L |
| Transmission - Hydraulic System | 53 / 60 gal. |
| Transmission - Hydraulic System | 201 / 226 L |
| Crankcase Oil Volume | 18.9 gal. |
| Crankcase Oil Volume | 71.5 L |
Transmission
| Transmission Type | John Deere e21 21-speed PowerShift; 21F, 11R with Efficiency Manager |
| Maximum Speed Forward | 25 mph / 40 km/h |
Steering & Brakes
| Steering Type | John Deere ActiveCommand Steering (ACS™) |
Technology Integration
| Guidance | Integrated AutoTrac™; Available with Autonomy Ready |
| Connectivity | Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination) |
| Remote Diagnostics | Available with activated JDLink hardware and activations |
Drawbar
| Drawbar Category | Category 5 |
| Maximum Vertical Load | 19000 lb / 8618 kg |
Additional Information
| Country of Manufacture | USA |
| Date Collected | 4/3/2025 12:00:00 AM |
Machine Configuration
| Wheel or Track Configuration | 4-Track |
| Drive Type | 4WD |
Tracks
| Track Drive Type | Camso ® Ag 3500 or 6500 Tracks |
| Track Tread Spacing | Only compatible with 762 mm (30 in.) tracks: 2235 mm (88 in.); Optional: 3048 mm (120 in.) |
| Track Width | Standard: 762 mm (30 in.); Optional - only compatible with 3048 mm (120 in.) spacing: 914 mm (36 in.) |
| Number Of Mid Rollers | 3 |
Front Axle
| Front Axle Differential Lock | Full-locking electrohydraulic |
