Features

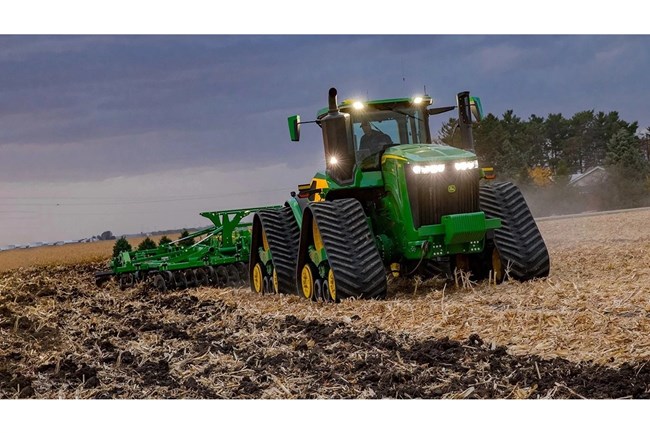

Take on Your Toughest Work with Confidence
When the job demands maximum pull and performance, 9 Series tractors deliver the power, durability, and traction to keep you moving. Built for heavy draft and high-demand applications, they help you maintain field speed, cover more acres, and work through tough conditions—so you can stay on schedule when timing matters most.
Keep Big Tools Moving Efficiently
Wide implements and high-speed operations push equipment to its limits. John Deere's 9 Series tractors are designed to maintain consistent performance under load, with the power, hydraulics, and traction needed to keep large tools operating at peak efficiency - helping you reduce bottlenecks, improve productivity, and get more done in every pass.
Turn Power into Predictable Performance
Productivity isn’t just about horsepower - it’s about how consistently you can apply it. 9 Series tractors combine integrated technology, precision capabilities, and reliable performance to help you work with confidence. From the cab to the cloud, you can monitor performance, document work, and make better decisions across your operation.
Specifications
Rear Axle
| Rear Differential Lock | Full-locking electrohydraulic |
| Final Drive | Bull gear and double idler with floating pinion |
Hydraulics
| Hydraulic System Type | Closed-center, pressure-and-flow compensated |
| Pump Rated Output | 208 L/min / 55 gpm (Standard); 416 L/min / 110 gpm (Optional) |
| Number of Rear Selective Control Valves (SCVs) | Four to six factory or field installed; Base: four 1.3-cm (1/2-in.) couplers; Optional: five to six 1.3-cm (1/2-in.) couplers factory installed; Optional: three 1.9-cm (3/4-in.) couplers plus three 1.3-cm (1/2-in.) couplers factory installed |
| Available Flow at a Single Rear SCV | 1.3-cm (1/2-in.) couplers: 132 L/min (35 gpm); 1.9-cm (3/4-in.) couplers: 170 L/min (45 gpm) |
| SCV Control | Electronic |
Dimensions & Weights
| Wheelbase | 162.5 in. |
| Wheelbase | 4128 mm |
| Base Machine Weight | 56320 lb. |
| Base Machine Weight | 25546 kg |
| Overall Length | 326.6 in. |
| Overall Length | 8295 mm |
| Drawbar Ground Clearance | 12.2 in. |
| Drawbar Ground Clearance | 311 mm |
| Maximum Ballast Level | 67000 lb. |
| Maximum Ballast Level | 30391 kg |
Engine
| Engine Make | John Deere |
| Engine Model | JD14 |
| Engine Family | VJDXL13.5334 |
| Emissions Certifications | Final Tier 4 (FT4) |
| Displacement | 827 cu in. |
| Displacement | 13.6 L |
| Aspiration | Dual series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air aftercooling and cooled exhaust gas recirculation (EGR) |
| Number of Cylinders | 6 |
| Cylinder Liners | Wet-sleeve |
| Aftertreatment Type | Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR) |
| Rated Engine Speed | 2100 rpm |
| Rated Engine Power | 582 hp |
| Rated Engine Power | 434 kW |
| Rated Engine Power | 590 PS |
| Engine Torque at Rated Speed | 2008 lb-ft |
| Engine Torque at Rated Speed | 2723 Nm |
| Maximum Engine Power | 640 hp |
| Maximum Engine Power | 477 kW |
| Maximum Engine Power | 649 PS |
| Maximum Engine Torque | At 1550 rpm: 2723 Nm / 2008 lb-ft |
| Alternative Fuel Type | B30 Diesel Compatible |
| Power Bulge | 10 % |
| Fuel Type | Diesel |
Electrical System
| Battery Voltage | 12 V |
| Battery Cold Cranking Amps | 2850 CCA |
| Alternator Capacity | Standard: 250 amp; Optional: 330 amp |
| Working Lights | Standard: 20 halogen; Optional: 20 or 24 light-emitting diode (LED) |
| Driving Lights | Halogen, 65 W; Optional: LED |
Rear Hitch
| Rear Hitch Category (SAE Designation) | Category 4N/4: 6804 kg (15,000 lb); Category 4N/4: 9072 kg (20,000 lb) |
| Maximum Lift Capacity Directly at Coupling Points | 20.000 |
| Sensing Type | Electrohydraulic with draft sensing |
Operator Station
| Seat Suspension | Air suspension |
| Degree of Seat Swivel, Left Hand | 25 degree (angle) |
| Degree of Seat Swivel, Right Hand | 25 degree (angle) |
| Cab Suspension | Standard |
| Instructional Seat | Standard |
| Primary Display | G5 Plus CommandCenter™: 32.5 cm (12.8 in.) |
| Radio | AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna; Optional: Touchscreen radio |
| Inner Cab Volume | 115 cu ft |
| Inner Cab Volume | 3.27 m³ |
| Cab Glass Area | 71.47 sq ft |
| Cab Glass Area | 6.64 m² |
Rear Power Take-Off (PTO)
| PTO Category | Independent, 44 mm (1.75 in.) 20-spline, 1000 rpm |
| Rated PTO Power | 335 hp |
| Rated PTO Power | 249 kW |
| Rated PTO Power | 340 PS |
| Engagement Method | Electrohydraulic |
Capacities
| Fuel Tank Capacity | 400 gal. |
| Fuel Tank Capacity | 1514 L |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 31.7 gal. |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 120 L |
| Cooling System Capacity | 14.9 gal. |
| Cooling System Capacity | 56.5 L |
| Transmission - Hydraulic System | With 3-point hitch and PTO: 60 Without 3-point hitch and PTO: 58 gal. |
| Transmission - Hydraulic System | With 3-point hitch and PTO: 242 Without 3-point hitch and PTO: 235 L |
| Crankcase Oil Volume | 16.9 gal. |
| Crankcase Oil Volume | 64 L |
Transmission
| Transmission Type | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager |
| Maximum Speed Forward | 40 km/h / 25 mph |
Steering & Brakes
| Steering Type | Hydraulic power steering; Optional: ActiveCommand Steering (ACS™) |
Technology Integration
| Guidance | Integrated AutoTrac™; Autonomy Ready (available in select regions) |
| Connectivity | Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination) |
| Remote Diagnostics | Available with activated JDLink hardware and activations |
Drawbar
| Drawbar Category | Category 5 |
| Maximum Vertical Load | 12,000 lb / 5440 kg |
Additional Information
| Country of Manufacture | USA |
| Date Collected | 4/3/2025 12:00:00 AM |
Machine Configuration
| Wheel or Track Configuration | 4-Track |
| Drive Type | 4WD |
Tracks
| Track Tread Spacing | Wide undercarriage: 2218 or 3048 mm (87 or 120 in.) |
| Track Width | 762 or 914 mm (30 or 36 in.) |
| Number Of Mid Rollers | Two |
Front Axle
| Front Axle Differential Lock | Full-locking electrohydraulic |
