Features
Take on Your Toughest Work with Confidence
When the job demands maximum pull and performance, 9 Series tractors deliver the power, durability, and traction to keep you moving. Built for heavy draft and high-demand applications, they help you maintain field speed, cover more acres, and work through tough conditions—so you can stay on schedule when timing matters most.

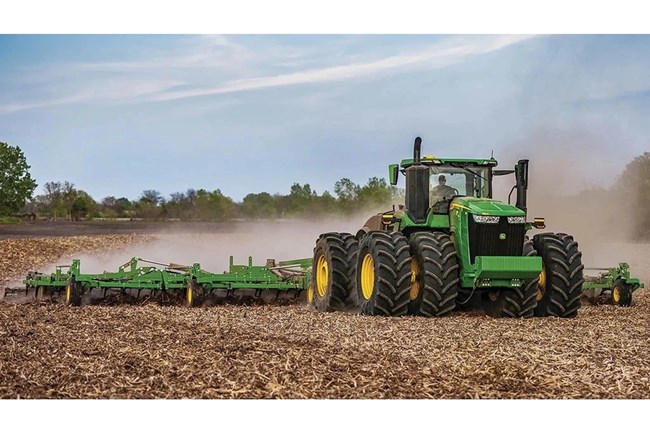

Keep Big Tools Moving Efficiently
Wide implements and high-speed operations push equipment to its limits. John Deere's 9 Series tractors are designed to maintain consistent performance under load, with the power, hydraulics, and traction needed to keep large tools operating at peak efficiency - helping you reduce bottlenecks, improve productivity, and get more done in every pass.
Turn Power into Predictable Performance
Productivity isn’t just about horsepower - it’s about how consistently you can apply it. 9 Series tractors combine integrated technology, precision capabilities, and reliable performance to help you work with confidence. From the cab to the cloud, you can monitor performance, document work, and make better decisions across your operation.
Specifications
Rear Axle
| Rear Axle Type | Diameter: 120 x 3048 mm (4.72 x 120 in.) |
| Rear Differential Lock | Full-locking electrohydraulic |
| Final Drive | Inboard planetary with double-reduction axle |
Rear Power Take-Off (PTO)
| PTO Category | Independent, 44 mm (1.75 in.) 20-spline, 1000 rpm |
| Rated PTO Power | 335 hp |
| Rated PTO Power | 249 kW |
| Rated PTO Power | 340 PS |
| Engagement Method | Electrohydraulic |
| Number of Splines | 20 |
Hydraulics
| Hydraulic System Type | Closed-center, pressure-and-flow compensated |
| Pump Rated Output | 208 L/min / 55 gpm (Standard); 416 L/min / 110 gpm (Optional) |
| Number of Rear Selective Control Valves (SCVs) | Four to six factory or field installed; Base: four 1.3-cm (1/2-in.) couplers; Optional: five to six 1.3-cm (1/2-in.) couplers factory installed; Optional: three 1.9-cm (3/4-in.) couplers plus three 1.3-cm (1/2-in.) couplers factory installed |
| Available Flow at a Single Rear SCV | 1.3-cm (1/2-in.) couplers: 132 L/min (35 gpm); 1.9-cm (3/4-in.) couplers: 170 L/min (45 gpm) |
| SCV Control | Electronic |
Dimensions & Weights
| Wheelbase | 154 in. |
| Wheelbase | 3912 mm |
| Base Machine Weight | 40660 lb. |
| Base Machine Weight | 18482 kg |
| Overall Length | 312.8 in. |
| Overall Length | 7945 mm |
| Ground Clearance | 20.7 in. |
| Ground Clearance | 527 mm |
| Drawbar Ground Clearance | 20.7 in. |
| Drawbar Ground Clearance | 527 mm |
| Maximum Ballast Level | 60000 lb. |
| Maximum Ballast Level | 27216 kg |
Engine
| Engine Make | John Deere |
| Engine Model | JD14 |
| Engine Family | MJDXL13.5334 |
| Emissions Certifications | Final Tier 4 (FT4) |
| Displacement | 827 cu in. |
| Displacement | 13.6 L |
| Aspiration | Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) |
| Number of Cylinders | 6 |
| Cylinder Liners | Wet-sleeve |
| Aftertreatment Type | Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR) |
| Rated Engine Speed | 2100 rpm |
| Rated Engine Power | 533 hp |
| Rated Engine Power | 397 kW |
| Rated Engine Power | 540 PS |
| Engine Torque at Rated Speed | 1838 lb-ft |
| Engine Torque at Rated Speed | 2492 Nm |
| Maximum Engine Power | 586 hp |
| Maximum Engine Power | 437 kW |
| Maximum Engine Power | 594 PS |
| Maximum Engine Torque | At 1550 rpm: 2492 Nm / 1838 lb-ft |
| Alternative Fuel Type | B30 Diesel Compatible |
| Power Bulge | 10 % |
| Fuel Type | Diesel |
| Alternative Fuel Type | B20 diesel compatible |
| Torque Rise | 38 % |
Electrical System
| Battery Voltage | 12 V |
| Battery Cold Cranking Amps | 2850 CCA |
| Alternator Capacity | Standard: 250 amp; Optional: 330 amp |
| Working Lights | Standard: 20 halogen; Optional: 20 or 24 light-emitting diode (LED) |
| Driving Lights | Halogen, 65 W; Optional: LED |
Rear Hitch
| Rear Hitch Category (SAE Designation) | Category 4N/4: 6804 kg (15,000 lb); Category 4N/4: 9072 kg (20,000 lb) |
| Maximum Lift Capacity Directly at Coupling Points | 20.000 |
| Lift Capacity Through Full Lift Range at Coupling Points | 15,000 lb, 6804 kg |
| Sensing Type | Electrohydraulic with draft sensing |
Operator Station
| Seat Suspension | Air suspension; Optional: ActiveSeat™ II |
| Degree of Seat Swivel, Left Hand | 8 degree (angle) |
| Degree of Seat Swivel, Right Hand | 40 degree (angle) |
| Instructional Seat | Standard |
| Primary Display | G5ᴾˡᵘˢ CommandCenter™: 32.5 cm (12.8 in.) |
| Radio | AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna; Optional: Touchscreen radio |
| Inner Cab Volume | 115 cu ft |
| Inner Cab Volume | 3.27 m³ |
| Cab Glass Area | 71.47 sq ft |
| Cab Glass Area | 6.64 m² |
Capacities
| Fuel Tank Capacity | 400 gal. |
| Fuel Tank Capacity | 1514 L |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 31.7 gal. |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 120 L |
| Cooling System Capacity | 14.9 gal. |
| Cooling System Capacity | 56.5 L |
| Transmission - Hydraulic System | With 3-point hitch and PTO: 60, Without 3-point hitch and PTO: 58 gal. |
| Transmission - Hydraulic System | With 3-point hitch and PTO: 242, Without 3-point hitch and PTO: 235 L |
| Crankcase Oil Volume | 16.9 gal. |
| Crankcase Oil Volume | 64 L |
Transmission
| Transmission Type | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager |
| Maximum Speed Forward | 40 km/h / 25 mph |
Front Axle
| Front Axle Type | Diameter: 120 x 3048 mm (4.72 x 120 in.) |
| Front Axle Differential Lock | Full-locking electrohydraulic |
Steering & Brakes
| Steering Type | Hydraulic power steering; Optional: ActiveCommand Steering (ACS™) |
Technology Integration
| Guidance | Integrated AutoTrac™; Autonomy Ready (available in select regions) |
| Connectivity | Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination) |
| Remote Diagnostics | Available with activated JDLink hardware and activations |
Drawbar
| Drawbar Category | Category 5 |
| Maximum Vertical Load | 12,000 lb / 5440 kg |
Additional Information
| Country of Manufacture | USA |
| Date Collected | 4/3/2025 12:00:00 AM |
Machine Configuration
| Wheel or Track Configuration | Wheel |
| Drive Type | 4WD |
