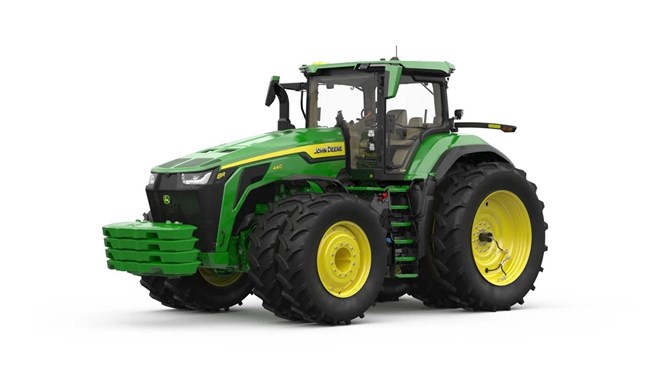

Bring High Horsepower to More of Your Operation
Big jobs don’t always fit a four-track footprint. HHP 8R tractors deliver the power of larger machines in a versatile row-crop frame - making them a total planting solution capable of pulling wider planters, running at higher speeds, and maximizing acres per day. From planting to tillage and grain handling, you can increase productivity without sacrificing maneuverability or field accessibility.
Do More Jobs with One Machine
Operations need flexibility, especially when timing is tight. HHP 8R tractors are designed to handle multiple roles - from primary tillage to high-speed planting and grain cart work - without compromise. With the ability to match a wide range of implements and conditions, you can reduce equipment needs and keep your operation moving with fewer tradeoffs.
Put Power to the Ground Efficiently and Intelligently
Performance is more than horsepower - it’s how efficiently you use it. HHP 8R tractors combine advanced power management like Peak Power IPM, traction solutions, and integrated technologies to maintain speed under load, reduce slip, and optimize fuel use. The result is more consistent output, better field efficiency, and the confidence to push through demanding conditions.
Specifications
Front PTO
| PTO Speed | 1000 |
| Maximum PTO Power | 130 kW |
| Maximum PTO Power | 176 PS |
Dimensions & Weights
| Wheelbase | 131.9 in. |
| Wheelbase | 3350 mm |
| Base Machine Weight | 37377 lb. |
| Base Machine Weight | 16954 kg |
| Overall Height | 145 in. |
| Overall Height | 3683 mm |
| Transport Height | 145 in. |
| Transport Height | 3683 mm |
| Overall Width | 113.6 in. |
| Overall Width | 2886 mm |
| Overall Length | 277.8 in. |
| Overall Length | 7057 mm |
| Ground Clearance | 15.9 in. |
| Ground Clearance | 405 mm |
| Front Axle Ground Clearance | 21.9 in. |
| Front Axle Ground Clearance | 555 mm |
| Drawbar Ground Clearance | 15.9 in. |
| Drawbar Ground Clearance | 405 mm |
| Maximum Ballast Level | 52910 lb. |
| Maximum Ballast Level | 24000 kg |
| Maximum Permissible Weight | 52910 lb. |
| Maximum Permissible Weight | 24000 kg |
Engine
| Engine Make | John Deere |
| Engine Model | JD14 |
| Engine Family | SJDXL13.5334 |
| Emissions Certifications | Stage V |
| Displacement | 827 cu in. |
| Displacement | 13.6 L |
| Aspiration | Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) |
| Number of Cylinders | 6 |
| Cylinder Liners | Wet-sleeve |
| Aftertreatment Type | Diesel oxidation catalyst (DOC), diesel particulate filter (DPF) and selective catalytic reduction (SCR) |
| Intelligent Power Management (IPM) | 40 |
| Rated Engine Speed | 1900 rpm |
| Rated Engine Power | 434 hp |
| Rated Engine Power | 324 kW |
| Rated Engine Power | 440 PS |
| Rated Engine Power with IPM | 353 kW |
| Rated Engine Power with IPM | 480 PS |
| Maximum Engine Speed | 1900 rpm |
| Maximum Engine Power | 477 hp |
| Maximum Engine Power | 356 kW |
| Maximum Engine Power | 484 PS |
| Maximum Engine Power with IPM | 385 kW |
| Maximum Engine Power with IPM | 524 PS |
| Maximum Engine Torque | 2,196 Nm (1620 lb-ft) |
| Constant Power Range | 1450-1900 rpm |
| Power Bulge | 10 % |
| Bore and Stroke | 5.2 x 6.5 in. |
| Bore and Stroke | 132 x 165 mm |
| Compression Ratio | 15:9:1 |
| Lubrication | Full-pressure, full-flow filtration with bypass |
| Cooling System Type | Liquid |
| Fuel Type | Ultra-low sulfur diesel |
| Alternative Fuel Type | B8 diesel compatible |
| Air Cleaner Type | Dual stage with exhaust aspiration |
| Torque Rise | 35 % |
Rear Hitch
| Lift Capacity Through Full Lift Range at Coupling Points | 5660 |
| Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point | 10886 kg (24000 lb) |
Operator Station
| Degree of Seat Swivel, Left Hand | 25 degree (angle) |
| Degree of Seat Swivel, Right Hand | 40 degree (angle) |
| Inner Cab Volume | 114.42 cu ft |
| Inner Cab Volume | 3.24 m³ |
| Cab Glass Area | 70.61 sq ft |
| Cab Glass Area | 6.56 m² |
Capacities
| Diesel Exhaust Fluid (DEF) Tank Capacity | 18.2 gal. |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 69 L |
| Cooling System Capacity | 18.5 gal. |
| Cooling System Capacity | 70 L |
| Transmission - Hydraulic System | 54.4 gal. |
| Transmission - Hydraulic System | 206 L |
| Crankcase Oil Volume | 12.9 gal. |
| Crankcase Oil Volume | 49 L |
Front Hitch
| Lift Capacity Through Full Lift Range at Coupling Points | 12478 lb. |
| Lift Capacity Through Full Lift Range at Coupling Points | 5660 kg |
| Maximum Lift Capacity at Coupling Points | 16950 lb. |
| Maximum Lift Capacity at Coupling Points | 7690 kg |
Electrical System
| Battery Voltage | 12 V |
| Electrical System Voltage | 12 V |
| Battery Cold Cranking Amps | 2850 CCA |
| Battery Capacity | 950 CCA |
Hydraulics
| Maximum Operating Pressure | 2958 psi |
| Maximum Operating Pressure | 204 bar |
| Available Flow at Front SCVs | 31 gpm |
| Available Flow at Front SCVs | 120 L/min |
Additional Information
| Country of Manufacture | USA |
Machine Configuration
| Wheel or Track Configuration | Wheel |
Rear Power Take-Off (PTO)
| Rated PTO Power | 288 kW |
| Rated PTO Power | 391 PS |
| Engine rpm at Rated PTO Speeds (1000/1000E/1.300) | 1,801/1,387/1,803 |
