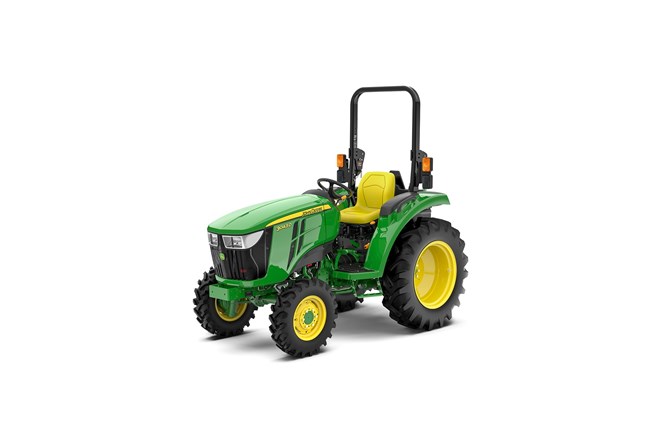

John Deere 3043D
Double tap to zoom
3043D
Compact Tractors
Overview:
Count on the 3043D Compact Tractor for dependable power. Move between tasks efficiently, while simple operation helps you stay productive. Easy to operate and built to perform.
- 4WD for Maximum Traction
- Heavy-Duty Drive Train With a Gear Drive Transmission 8F/8R
- Maximum Versatility With Category 1 3-Point Hitch
- Efficient Operation With High-Capacity Hydraulic System
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Optional Two-Spool Rear Selective Control Valve (SCV)
3D Series Tractors can be upgraded with a rear hydraulic remote kit that adds two independent hydraulic spools, enabling compatibility with various rear attachments like angled blades and snow blowers. The first spool includes a float position for better landscape contouring and grading precision.
Clean and Simple Operator Station
The 3D operator station is designed to keep operation comfortable, simple, and intuitive throughout the workday. An easy step‑through layout and thoughtfully placed controls support confident operation and reduce unnecessary effort when getting on and off. The clean, practical design helps you stay focused on the task at hand without added complexity.
Optional iMatch™ Quick-Hitch Feature
John Deere’s iMatch™ Quick-Hitch simplifies implement attachment by ensuring a guaranteed fit for all ASABE Category 1-compatible tools, using included bushings to align implement pins with hitch hooks.
Specifications
Engine
| Engine Model | 3TNV86CT-KJPT |
| Emissions Certifications | Final Tier 4 |
| Displacement | 96 cu in. |
| Aspiration | Turbocharged |
| Number of Cylinders | 3 |
| Cylinder Liners | Cast-in-block |
| Rated Engine Speed | 2800 rpm |
| Rated Engine Power | 42 hp |
| Rated Engine Power | 31 kW |
| Rated Engine Power | 42 PS |
| Compression Ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling System Type | Liquid |
| Fuel Type | Diesel |
| Air Cleaner Type | Dual element |
Hydraulics
| Hydraulic System Type | Open center |
| Number of Rear Selective Control Valves (SCVs) | 2 |
Rear Power Take-Off (PTO)
| PTO Category | 540 rpm |
| Engine rpm at Rated PTO Speeds (540/1.000) | 2400 |
| Engagement Method | Mechanical |
| PTO Clutch | Transmission |
| Brake (For Mid and Rear PTO) | Wet disk |
Rear Axle
| Final Drive | Spur gear |
Machine Configuration
| Wheel or Track Configuration | Wheel |
| Drive Type | 4WD |
Tires
| Front Tires Size | R1 Bar: 7-14; R3 Turf: 27x8.5-15; R4 Industrial: 25x8.5-14 |
Steering & Brakes
| Primary Brakes | Wet disk |
Rear Hitch
| Draft Control Sensing | Position control |
Electrical System
| Alternator Capacity | 55 amp |
Operator Station
| Gearshift Location | Right-hand side |
Transmission
| Creeper | No |
| Cruise Control | No |
