Features

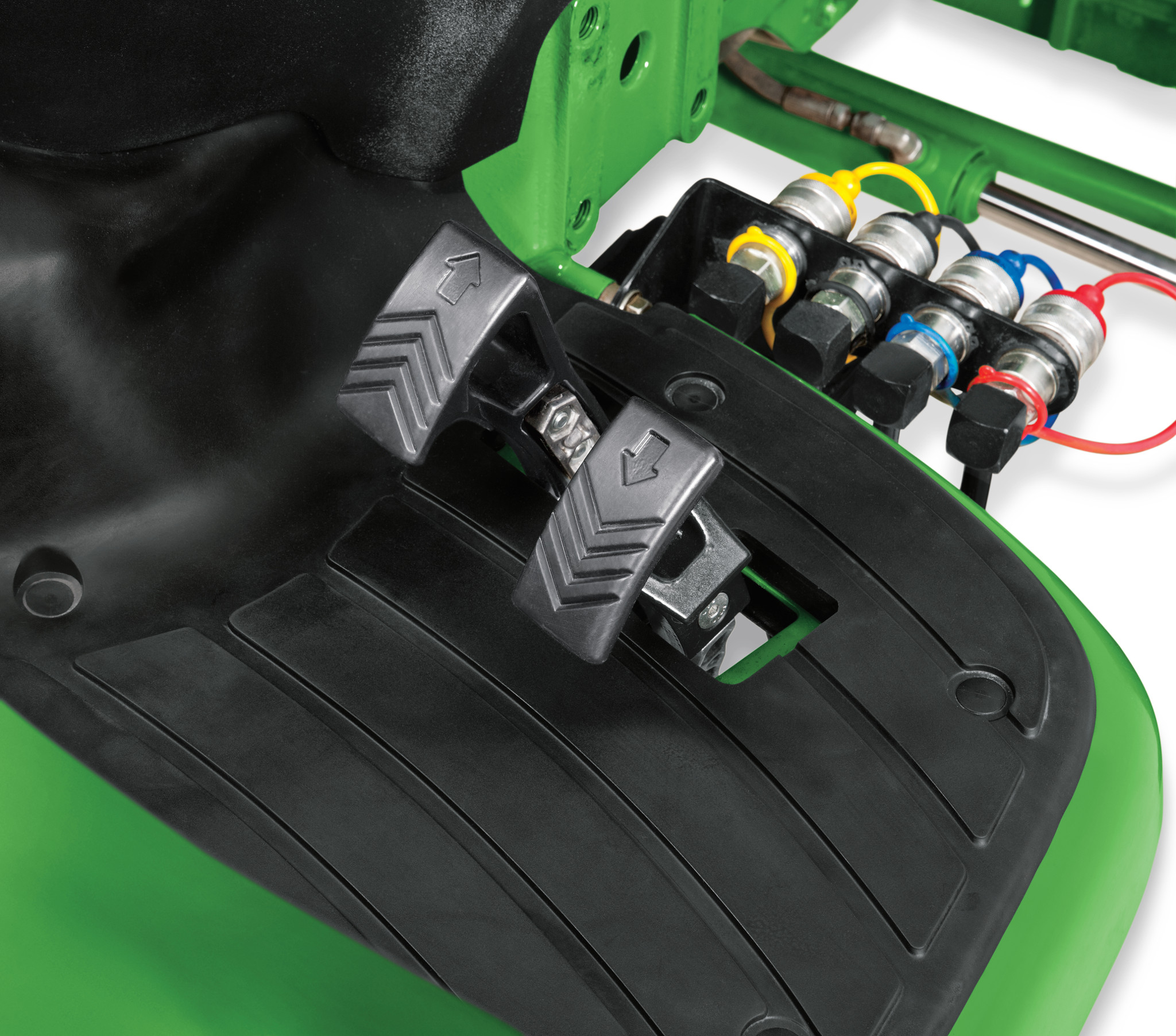

Easy-to-Use eHydro™ Transmission
The eHydro™ transmission provides seamless, gradual speed shifts, requiring no clutching. Its Twin Touch™ foot controls allow for quick, precise direction and speed changes, ideal for loader or mower applications, enhancing overall productivity.
More Time Working, Less Time Switching Implements
John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.
Comfortable, Easy Operation

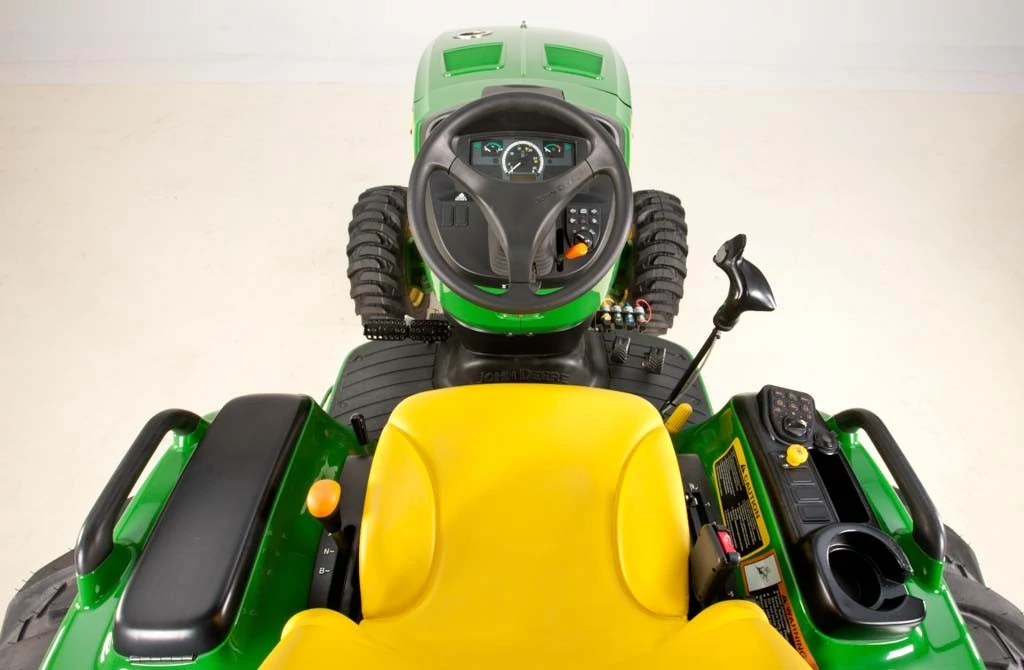

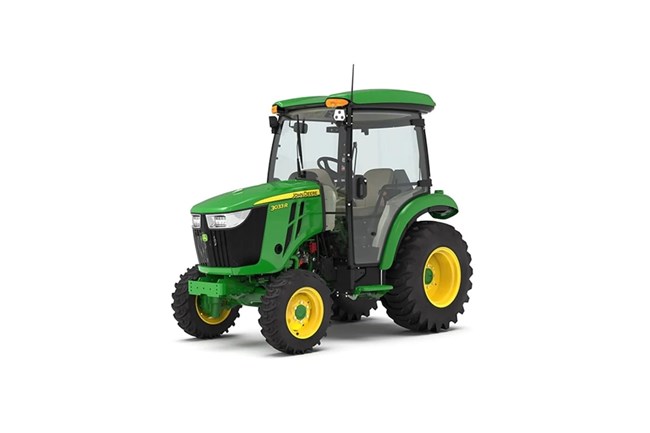

Step in and get to work with a 3R Tractor designed to keep you comfortable and in control. A spacious, easy-to-navigate operator station gives you plenty of room, intuitive controls, and smooth entry and exit for long days on the job. For added comfort in any season, an optional ComfortGard™ cab surrounds you with a quiet, climate-controlled environment with excellent visibility.
Specifications
Rear Axle
| Rear Axle Type | Standard: Flange-type; Optional: Rack-and-pinion rear axle (79-mm shaft; long/short versions) |
| Rear Differential Lock | Electrohydraulically with oil-cooled clutch |
| Final Drive | Three planetary gear reduction |
Hydraulics
| Hydraulic System Type | Standard: Pressure compensated (PC); Optional: Pressure-and-flow compensated (PFC) with Load Sensing |
| Pump Rated Output | Standard: 80 L/min (21 gpm); Optional: 114 L/min (30 gpm) |
| SCV Control | Mechanical/electrical |
Rear Hitch
| Rear Hitch Category (SAE Designation) | 2/3N |
| Sensing Type | Electronic lower link |
Steering & Brakes
| Steering Type | Dynamic load sensing, hydrostatic, flow metering |
| Primary Brakes | Oil-cooled self-equalizing, self-adjusting, hydraulically actuated |
| Secondary Brake | Hydraulically actuated, integrated into primary brake |
| Parking Brake | Mechanical transmission park lock |
Engine
| Engine Make | John Deere PowerTech™ EWL |
| Emissions Certifications | Final Tier 4 |
| Aspiration | Single turbocharger with wastegate |
| Aftertreatment Type | Diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) using diesel exhaust fluid (DEF) |
| Intelligent Power Management (IPM) | Power boost (IPM) |
| Rated Engine Speed | 2600 rpm |
| Rated Engine Power | 32 hp |
| Rated Engine Power | 24 kW |
| Rated Engine Power | 32 PS |
Capacities
| Fuel Tank Capacity | 46.2 gal. |
| Fuel Tank Capacity | 175 L |
Transmission
| Transmission Type | Standard: John Deere 24-speed PowrQuad™ Plus 40 km/h; Optional: John Deere 16-speed PowrQuad Plus 30 km/h; John Deere 24-speed AutoQuad™ Plus 40 km/h; John Deere 24-speed CommandQuad™ Plus 40 km/h; AutoPowr™/IVT™ 40 km/h; Creeper (PowrQuad Plus and AutoQuad Plus) |
| Maximum Speed Forward | Up to 40 km/h (optional 30 km/h) |
| Creeper | Optional |
| Reverser | Electronic left-hand reverser |
Operator Station
| ROPS Type | Rollover protective structure, OOS |
| Gearshift Location | Console |
| Seat Suspension | Standard: Economy seat with mechanical suspension; Optional: Standard seat with air suspension |
| Cab Suspension | Optional: Mechanical Cab Suspension (MCS) |
| Instructional Seat | Optional |
| Primary Display | Cornerpost display (right-hand A-post); Functionality: Performance monitor and individual settings |
| Radio | Optional integrated |
Front Axle
| Front Axle Type | Standard: MFWD; Optional: 2WD; Triple-Link Suspension (TLS) MFWD axle; Triple-Link Suspension MFWD with brakes |
| Front Axle Differential Lock | Self-locking differential |
Rear Power Take-Off (PTO)
| Engagement Method | In-cab switch and external fender-mounted remote control |
| PTO Clutch | Electrohydraulically operated, oil-cooled, multi-disc design |
Electrical System
| Alternator Capacity | Standard: 14 V / 120 amp; Optional: 14 V / 150 amp; 14 V / 200 amp |
Technology Integration
| Guidance | Optional: AutoTrac™ on cornerpost display (straight track only); AutoTrac with 4240/4640 Universal Display |
| Secondary Display | 4240/4640 Universal Display |
| Connectivity | Optional: JDLink™ |
| Remote Diagnostics | Optional: JDLink™ |
| ISOBUS Ready | ISOBUS ready |
Drawbar
| Drawbar Category | Category 2 |
| Maximum Vertical Load | Road/field use (250-mm extended): 2000 kg / 4409.2 lb; Field use (350-mm extended): 1400 kg / 3086.5 lb; Field use (400-mm extended): 1200 kg / 2645.5 lb |
Machine Configuration
| Wheel or Track Configuration | Wheel |
| Drive Type | 4WD |
Additional Information
| Country of Manufacture | Germany |
Front Hitch
| Front Hitch Category | 3N |
| Electric Power | Seven-pin electrical socket |
Tires
| Rear Tires Size | 600/65R38 (175) |
