Features

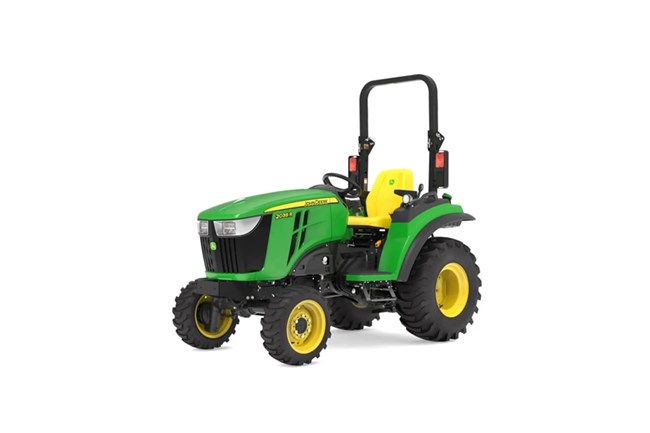

Open Operator's Station
The design of the operator's station focuses on comfort and visibility with a sloped hood, high-back seat, and easy step-through access. The controls are color-coded for ease of use, enhancing the overall operator experience and making control and visibility clear during operation.
Hydrostatic Transmission
Equipped with a standard HST transmission featuring Twin Touch™ foot pedals, this compact utility tractor offers increased performance and convenience. The hydrostatic drive allows for infinite ground speeds even at full throttle, providing smooth and precise operation, particularly useful for loader and mower applications.
More Time Working, Less Time Switching Implements
John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.
Specifications
Rear Axle
| Rear Axle Type | Standard: flange‑type; Optional: rack‑and‑pinion rear axle (79‑mm shaft; standard/short lengths) |
| Rear Differential Lock | Electrohydraulically with oil‑cooled clutch |
Engine
| Engine Make | John Deere PowerTech™ PSS |
| Emissions Certifications | Final Tier 4 |
| Aspiration | Turbo charged. Variable geometry turbo with fixed geometry and cooled exhaust gas recirculation (EGR) |
| Aftertreatment Type | FT4: Cooled exhaust gas recirculation (EGR), Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF |
| Rated Engine Speed | 2500 rpm |
| Rated Engine Power | 37 hp |
| Rated Engine Power | 27 kW |
| Rated Engine Power | 37 PS |
Hydraulics
| Hydraulic System Type | Standard: Pressure compensated (PC); Optional: Pressure‑and‑flow compensated (PFC) with Load Sensing |
| Pump Rated Output | Standard: 80 L/min (21 gpm); Optional: 114 L/min (30 gpm) |
| SCV Control | Mechanical |
Front Axle
| Front Axle Type | Standard: MFWD; Optional: Two-wheel drive (2WD) |
| Front Axle Differential Lock | Self‑locking differential |
Additional Information
| Country of Manufacture | Germany |
| Date Collected | 08/26/2025 |
Rear Hitch
| Rear Hitch Category (SAE Designation) | 2/3N |
| Sensing Type | Electronic lower link |
Capacities
| Fuel Tank Capacity | 52.8 gal. |
| Fuel Tank Capacity | 200 L |
Machine Configuration
| Wheel or Track Configuration | Wheel |
| Drive Type | 4WD |
Drawbar
| Drawbar Category | Category 2 |
| Maximum Vertical Load | Road/field use (250‑mm extended): 2000 kg / 4409.2 lb; Field use (350‑mm extended): 1400 kg / 3086.5 lb; Field use (400‑mm extended): 1200 kg / 2645.5 lb |
Tires
| Front Tires Size | 380/85R24 |
| Rear Tires Size | 460/85R34 |
Operator Station
| ROPS Type | Rollover protective structure, OOS |
| Gearshift Location | Console |
| Seat Suspension | Standard: Economy seat with mechanical suspension, without seat swivel; Optional: Standard seat with mechanical suspension and seat swivel |
| Primary Display | Digital dash display with liquid crystal displays (LCDs) |
Steering & Brakes
| Steering Type | Dynamic load sensing, hydrostatic, flow metering |
Electrical System
| Alternator Capacity | Standard: 14 V/120 amp; Optional: 14 V/250 amp |
Technology Integration
| Remote Diagnostics | JDLink™ |
Transmission
| Transmission Type | PowrQuad™ transmission |
| Creeper | Optional |
| Reverser | Mechanical left-hand reverser |
