John Deere 1R 25
Double tap to zoom
1R 25
Compact Tractors
Overview:

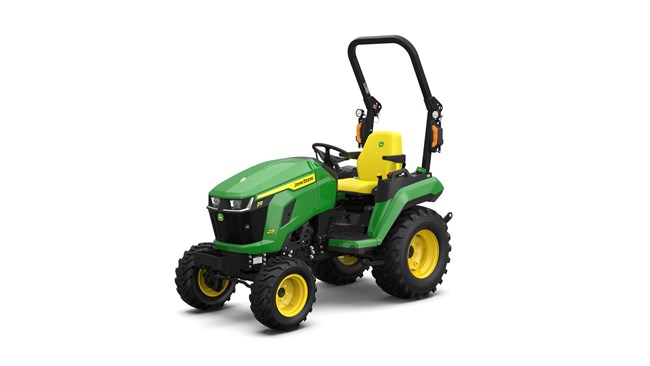

Enjoy year-round versatility without the hassle with the 1R 25 Sub-Compact Tractor. Fast, tool-free Quick Connect implement changes and easy hydro controls make loader and mowing work a breeze. Add the optional HVAC cab for comfortable operation in any season. Built for property owners who want comfortable, capable performance in a compact package.
- Optional Factory-Installed All-Weather HVAC Cab
- One-Piece Hood Design for Easier Maintenance
- Larger Tires for Better Traction, Faster Speed, and Higher Ground Clearance
- 12V Outlet, USB-C Port, Tilt Steering Wheel, and Toolbox
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Convenient Twin Touch™ Foot Controls
Twin Touch™ foot controls let operators change speed and direction with a touch of the toe, making loader and mower work faster and easier. Benefits include infinite ground speeds, no clutching for quick reversals, strong startup torque, and reduced drivetrain shock.
Equipment Mobile and Smart Connector
Equipment Mobile helps you set up, operate, and maintain your tractors from one app. With a John Deere Smart Connector, you can see live tractor data, get DTC alerts, track maintenance, scan the PIN for manuals and parts, and manage your fleet more efficiently in one place.
Check with your John Deere dealer for coverage availability.
More Time Working, Less Time Switching Implements
John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.
Specifications
Front PTO
| PTO Speed | 2100 |
| Front Rated PTO Power | 18 hp |
Engine
| Engine Make | Yanmar® |
| Engine Model | 3TNV80F-NCJT |
| Emissions Certifications | Final Tier 4 |
| Displacement | 77 cu in. |
| Displacement | 1.267 L |
| Aspiration | Natural |
| Number of Cylinders | 3 |
| Rated Engine Speed | 3200 rpm |
| Rated Engine Power | 23 hp |
| Rated Engine Power | 17 kW |
| Rated Engine Power | 23 PS |
| Bore and Stroke | 3.2 x 3.3 in. |
| Cooling System Type | Water pump |
| Fuel Type | Diesel |
| Air Cleaner Type | Dual element with mechanical restriction indicator |
Hydraulics
| Hydraulic System Type | Open center |
| Pump Rated Output | Steering - 3.5 gpm; Implement - 3.9 gpm; Total - 7.4 gpm (27.9 L/min) |
| Number of Rear Selective Control Valves (SCVs) | Two |
Tires
| Front Tires Size | R3 Turf: 23x8.50-12; R3 Radial: 220/55-R12; R4 Industrial: 23x8.50-12 |
| Front Tread Spacing | 37 in. |
| Rear Tires Size | R3 Turf: 12-16.5; R3 Radial: 280/70 R16; R4 Industrial: 12-16.5 |
| Rear Tread Spacing | 35 in. |
Dimensions & Weights
| Wheelbase | 63 in. |
| Base Machine Weight | 1872 lb. |
| Front Axle Ground Clearance | 7.7 in. |
Rear Power Take-Off (PTO)
| PTO Category | Limited Category 1 |
| Engagement Method | Independent |
| PTO Clutch | Wet disk |
| Brake (For Mid and Rear PTO) | Wet disk |
Rear Hitch
| Rear Hitch Category (SAE Designation) | Limited Category 1 |
| Maximum Lift Capacity at 610-mm Behind Hitch Point | 915 lb / 415 kg |
| Sensing Type | Position control |
| Draft Control Sensing | Position control |
Machine Configuration
| Wheel or Track Configuration | Wheel |
Operator Station
| ROPS Type | Foldable |
| Seat Suspension | Suspension seat |
Steering & Brakes
| Steering Type | Power steering |
| Primary Brakes | Wet disc |
Electrical System
| Battery Voltage | 12 V |
| Electrical System Voltage | 12 V |
| Battery Cold Cranking Amps | 500 CCA |
| Alternator Capacity | 40 amp |
Capacities
| Fuel Tank Capacity | 5.4 gal. |
Transmission
| Transmission Type | Hydrostatic - two range |
| Clutch | Wet disc |
| Cruise Control | Standard |
