Features
Convenient Twin Touch™ Foot Controls
Twin Touch™ foot controls let operators change speed and direction with a touch of the toe, making loader and mower work faster and easier. Benefits include infinite ground speeds, no clutching for quick reversals, strong startup torque, and reduced drivetrain shock.

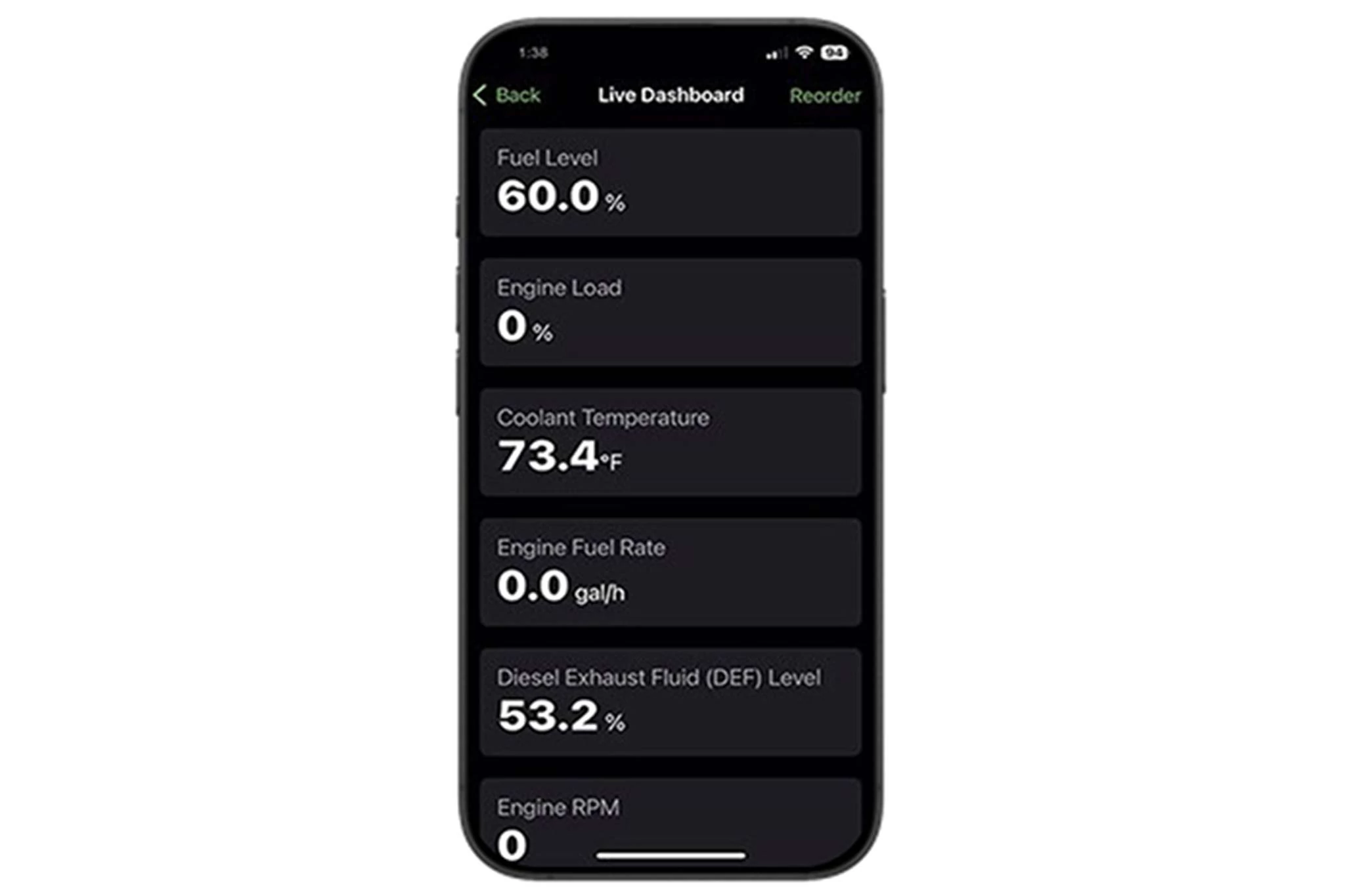

Equipment Mobile and Smart Connector
Equipment Mobile helps you set up, operate, and maintain your tractors from one app. With a John Deere Smart Connector, you can see live tractor data, get DTC alerts, track maintenance, scan the PIN for manuals and parts, and manage your fleet more efficiently in one place.
Check with your John Deere dealer for coverage availability.

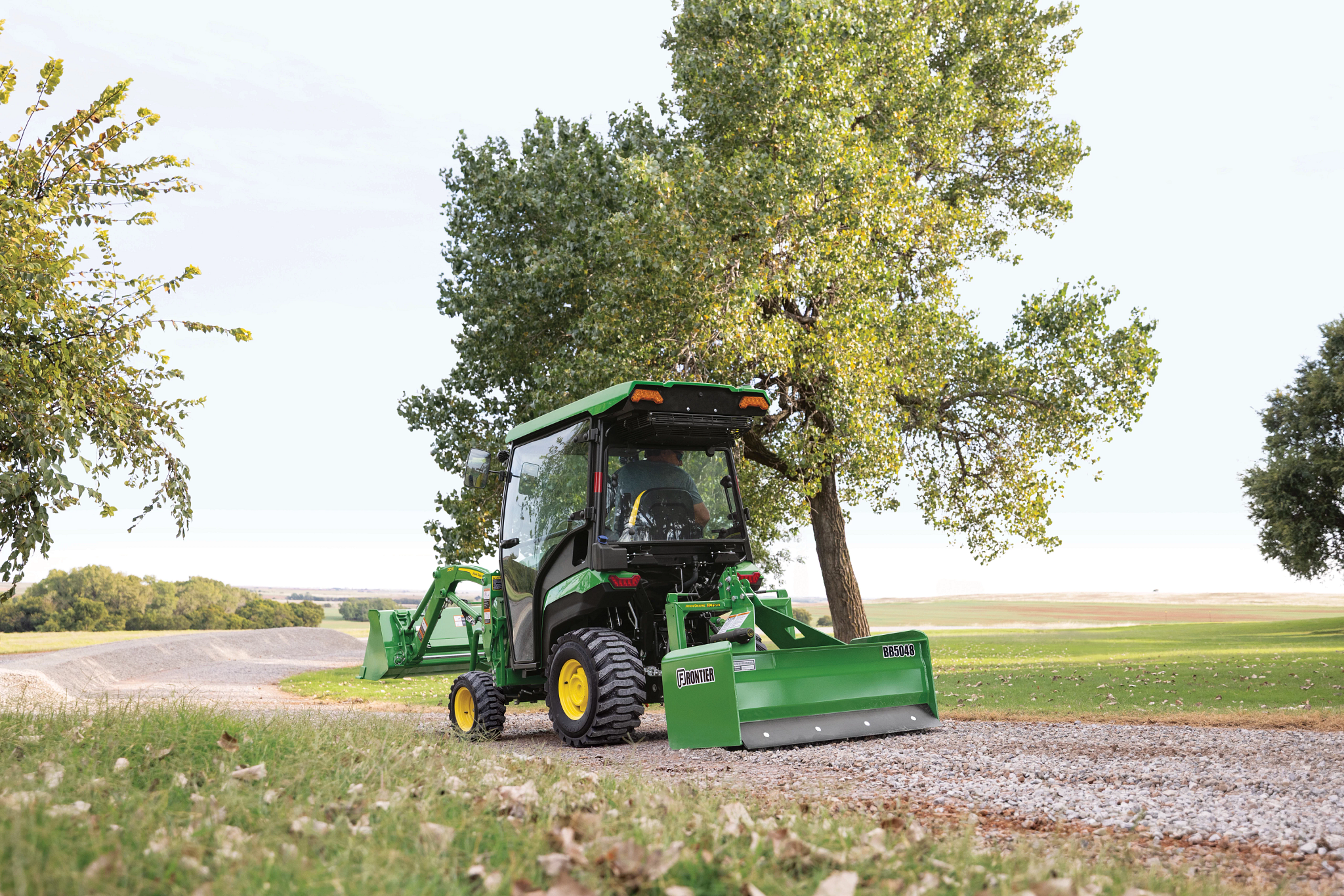

More Time Working, Less Time Switching Implements
John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.
Specifications
Front PTO
| PTO Speed | 2100 |
Engine
| Engine Make | Yanmar® |
| Engine Model | 3TNV80F-NCJT |
| Emissions Certifications | Final Tier 4 |
| Displacement | 77 cu in. |
| Displacement | 1.267 L |
| Aspiration | Natural |
| Number of Cylinders | 3 |
| Rated Engine Speed | 3200 rpm |
| Rated Engine Power | 24 hp |
| Rated Engine Power | 18 kW |
| Rated Engine Power | 24 PS |
| Bore and Stroke | 3.15 x 3.31 in. |
| Cooling System Type | Water pump |
| Fuel Type | Diesel |
| Air Cleaner Type | Dual element with mechanical restriction indicator |
Hydraulics
| Hydraulic System Type | Open center |
| Pump Rated Output | 6.3 gpm (24 L/min) |
| Number of Rear Selective Control Valves (SCVs) | Three |
Tires
| Front Tires Size | R3 Turf: 18x8.50-10; R3 Turf Radial: 18x8.50-10; R4: 18x8.5-10 |
| Front Tread Spacing | 36 in. |
| Rear Tires Size | R3 Turf: 26x12‑12; R4: 26x12‑12 |
| Rear Tread Spacing | 35 in. |
Dimensions & Weights
| Wheelbase | 57.1 in. |
| Base Machine Weight | 1556 lb. |
| Front Axle Ground Clearance | 7.7 in. |
Rear Power Take-Off (PTO)
| PTO Category | Limited Category 1 |
| Rated PTO Power | 18 hp |
| Engagement Method | Independent |
| PTO Clutch | Wet disk |
| Brake (For Mid and Rear PTO) | Wet disk |
Rear Hitch
| Rear Hitch Category (SAE Designation) | Limited Category 1 |
| Maximum Lift Capacity at 610-mm Behind Hitch Point | 758 lb / 344 kg |
| Sensing Type | Position control |
| Draft Control Sensing | Position control |
Machine Configuration
| Wheel or Track Configuration | Wheel |
Operator Station
| ROPS Type | Foldable |
| Seat Suspension | Suspension seat |
Steering & Brakes
| Steering Type | Power steering |
| Primary Brakes | Wet disc (left-hand pedal) |
Electrical System
| Battery Voltage | 12 V |
| Electrical System Voltage | 12 V |
| Battery Cold Cranking Amps | 500 CCA |
| Alternator Capacity | 40 amp |
Capacities
| Fuel Tank Capacity | 6.3 gal. |
Transmission
| Transmission Type | Hydrostatic - two range |
| Clutch | Wet disc |
| Cruise Control | Standard |
