Features
Excellent Maneuverability With 4WD and Power Steering

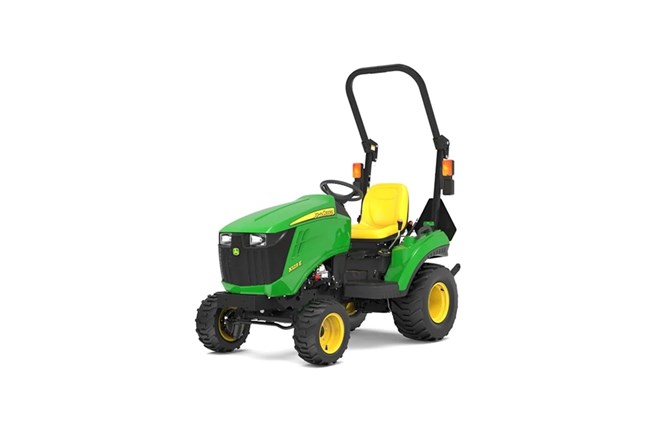

This tractor offers excellent maneuverability due to its standard four-wheel drive and power steering. The narrow wheelbase allows operation in tight spaces, while the power steering ensures smooth navigation around obstacles, ideal for mowing and loader work.
Comfortable and Convenient Open Operator's Station
The tractor features a comfortable open operator station designed for increased visibility and ease of access. With a thick rubber floor mat and an easy step-through flat platform, it reduces vibrations and noise, making it easy to operate for long periods without fatigue.
More Time Working, Less Time Switching Implements
John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.
Specifications
Rear Axle
| Rear Differential Lock | Yes |
| Final Drive | Spur gear |
Hydraulics
| Hydraulic System Type | Open center |
| Pump Rated Output | 24 L/min 6.3 gpm |
| Maximum Operating Pressure | 2000 psi |
| Maximum Operating Pressure | 138 bar |
| Number of Rear Selective Control Valves (SCVs) | 3 |
Tires
| Front Tires Size | R3: 18x8.50-10; R4: 18x8.5-10 |
| Front Tread Spacing | 37 in. |
| Front Tread Spacing | 931 mm |
| Rear Tread Spacing | 35 in. |
| Rear Tread Spacing | 895 mm |
Engine
| Engine Make | Yanmar® |
| Engine Model | 3TNM74F-NCJT |
| Emissions Certifications | Final Tier 4 |
| Displacement | 60 cu in. |
| Displacement | 0.993 L |
| Aspiration | Natural |
| Number of Cylinders | 3 |
| Cylinder Liners | Cast-in-block |
| Rated Engine Speed | 3200 rpm |
| Rated Engine Power | 21 hp |
| Rated Engine Power | 16 kW |
| Rated Engine Power | 22 PS |
| Engine Torque at Rated Speed | 35.2 lb-ft |
| Engine Torque at Rated Speed | 48 Nm |
| Bore and Stroke | 2.91 x 3.03 in. |
| Bore and Stroke | 74 x 77 mm |
| Compression Ratio | 23.5:1 |
| Lubrication | Pressurized |
| Cooling System Type | Water pump |
| Fuel Type | Diesel |
| Air Cleaner Type | Dual element |
Dimensions & Weights
| Wheelbase | 57.1 in. |
| Wheelbase | 1450 mm |
| Base Machine Weight | 1446 lb. |
| Base Machine Weight | 656 kg |
| Front Axle Ground Clearance | 7.7 in. |
| Front Axle Ground Clearance | 195 mm |
Rear Power Take-Off (PTO)
| Rated PTO Power | 16 hp |
| Rated PTO Power | 12 kW |
| Economy PTO Speeds | Rear: 540 rpm; Mid: 2100 rpm |
| Engagement Method | Independent |
| PTO Clutch | Wet disk |
| Brake (For Mid and Rear PTO) | Wet disk |
Capacities
| Fuel Tank Capacity | 6.3 gal. |
| Fuel Tank Capacity | 24 L |
| Transmission - Hydraulic System | 3.2 gal. |
| Transmission - Hydraulic System | 12.3 L |
| Crankcase Oil Volume | 2.9 gal. |
| Crankcase Oil Volume | 2.7 L |
Steering & Brakes
| Steering Type | Power |
| Primary Brakes | Wet disc |
Electrical System
| Electrical System Voltage | 12 V |
| Battery Cold Cranking Amps | 500 CCA |
| Alternator Capacity | 40 amp |
Rear Hitch
| Rear Hitch Category (SAE Designation) | Limited Category 1 |
| Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point | 344 kg 758 lb |
| Draft Control Sensing | Select control |
Drawbar
| Drawbar Category | Select control |
Transmission
| Transmission Type | Hydrostatic - two range |
| Creeper | No |
| Reverser | No |
| Cruise Control | No |
Operator Station
| ROPS Type | Foldable |
| Gearshift Location | Left-hand side |
Machine Configuration
| Wheel or Track Configuration | Wheel |
