John Deere WC1205
Double tap to zoom
WC1205
Tractor Attachments and Implements
Overview:

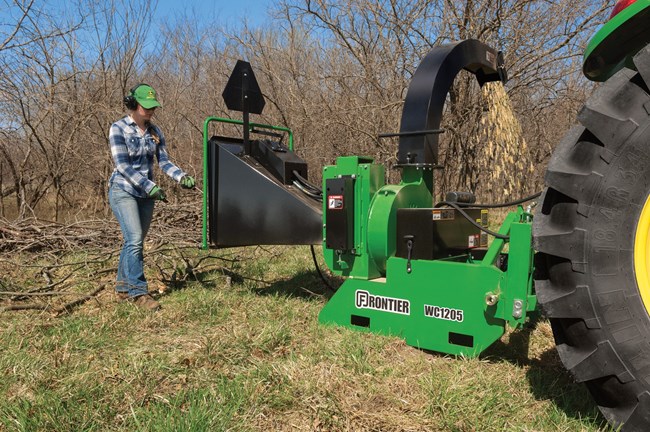

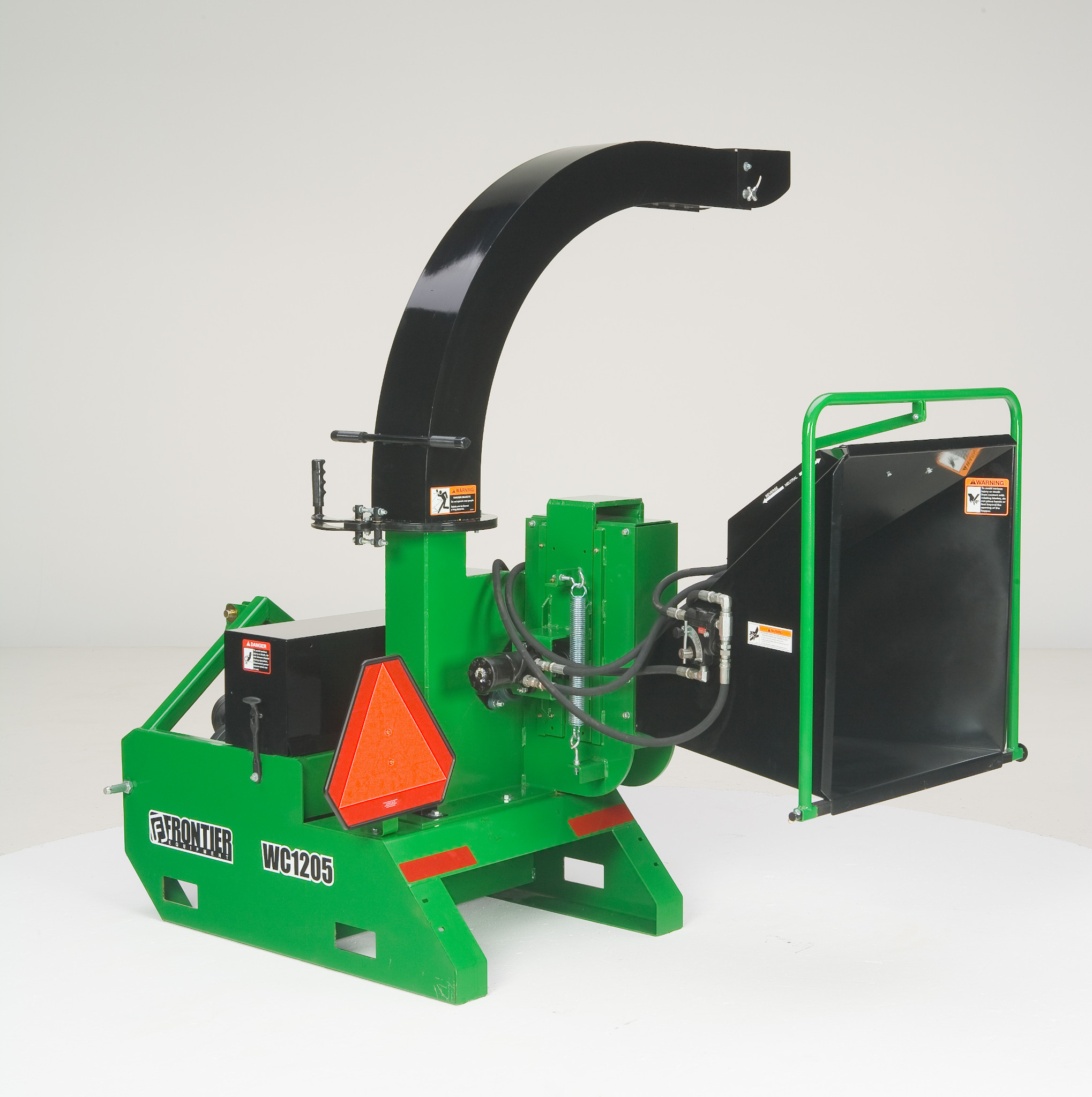

The WC1205 Wood Chipper offers efficient and powerful wood processing with its 3-point PTO drive, hydraulic feed system, and 5-inch capacity, making it an ideal solution for quick and effective wood waste management on your farm or property.
- Chip Opening: 5.5 x 8 in. (14 x 20.3 cm)
- Hopper Opening: 28 x 28 in. (71.1 x 71.1 cm)
- Feed System: Hydraulic
- Adjustable Chip Chute
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Compatible with the iMatch™ Quick-Attach Hitch System
All Frontier™ Wood Chipper models are compatible with the iMatch™ ASAE Category 1 quick-attach hitch system. iMatch converts your tractor’s 3-point hitch to fixed hooks and attaching points for quick and easy connection. (iMatch hitch sold separately.)
Tackle Big Jobs Faster
The hydraulic feed roll handles a variety of wood sizes. Adjustable spring tension lets you choose the setting needed in your operation, so you can tackle big jobs faster.

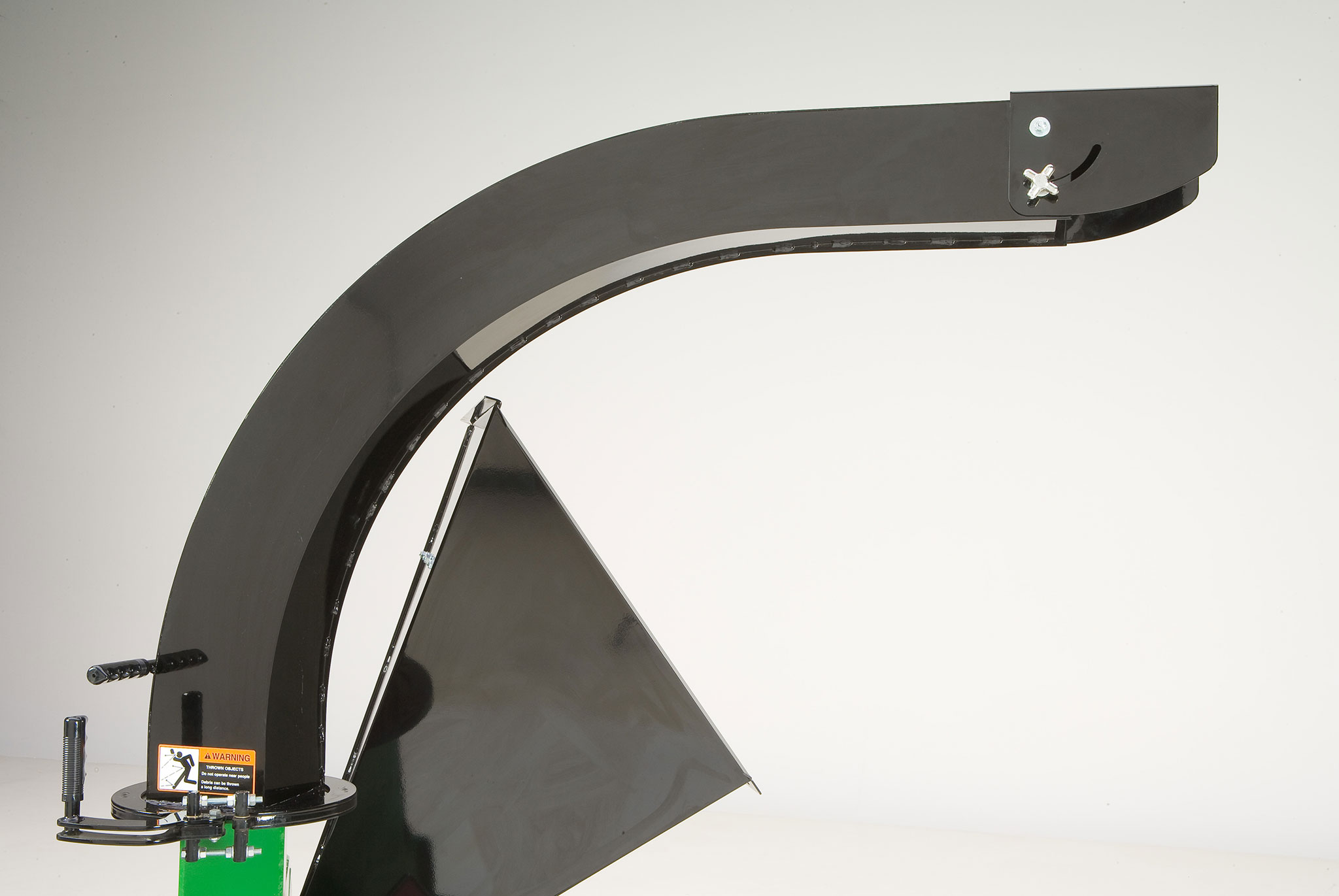

Adjustable Discharge Chute
This chipper includes a 360-degree rotating discharge chute that provides fast and easy positioning. The adjustable deflector accurately directs wood chips to the desired location, enhancing user convenience and operational efficiency.
Specifications
Weights
| Unit | 352 kg |
| Unit | 775 lb. |
| Rotor Style | Disc |
| Rotor Weights | 165 lb. |
| Rotor Weights | 75 kg |
Chip Chute
| Adjustable Chip Chute | Rotation: 360 degree (angle) |
Feed Options
| Feed Options - System | Hydraulic |
| Feed Options - Hopper Height | 21 in. |
| Feed Options - Hopper Height | 53 cm |
Tractor Compatibility
| HP Range (Tractor PTO hp) | 35-95 hp |
| HP Range (Tractor PTO hp) | 26-70.8 kW |
| PTO rpm | 540 rpm |
Dimensions
| Chip Opening | 140x203 mm |
| Chip Opening | 5.5x8 in. |
| Hopper Opening | 28x28 in. |
| Hopper Opening | 711x711 mm |
Chipping
| Knife Size | 2.5x3.25x0.3125 in. |
| Knife Size | 63.5x82.6x7.9 mm |
| Shear Bar | Adjustable hardened anvil |
| Chipping Rotor rpm | 1380 rpm |
| Knife Quantity | Four |
| Knife Bolt | Hardened and recessed bolts: 9.5 mm 0.375 in. |
Belt Drive System
| Belt Drive System - Number | Three |
3-Point Hitch
| 3-Point Hitch Category | Category 1, Category 2 |
Hydraulics
| Hydraulics Requirements | 22.7 L/min 6 gpm |
| Self-Contained Hydraulics System | Optional |
Warranty
| Warranty Time Period | 1 year |
Setup Time
| Set-Up Time Labor Hours | 0.5 hr |
