John Deere WC1103
Double tap to zoom
WC1103
Tractor Attachments and Implements
Overview:

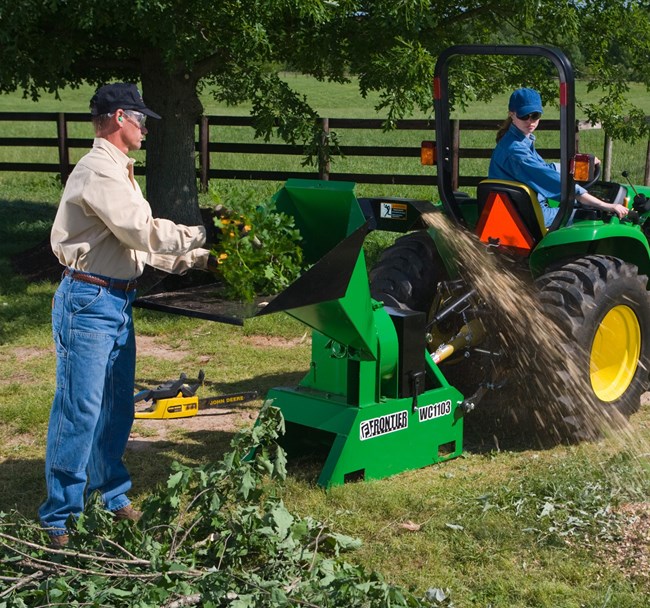

The Frontier™ WC1103 turns branches into mulch fast. With a durable steel frame, powerful cutting system, and quick-hitch compatibility, it accepts material up to 3 in. (7.62 cm) in diameter to keep properties looking clean and professional.
- Chip Opening: 3 x 5.5 in. (7.6 x 14 cm)
- Hopper Opening: 25 x 18 in. (63.5 x 45.7 cm)
- Feed System: Manual (Gravity)
- 2 Position Fixed Chip Chute
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Compatible with the iMatch™ Quick-Attach Hitch System
All Frontier™ Wood Chipper models are compatible with the iMatch™ ASAE Category 1 quick-attach hitch system. iMatch converts your tractor’s 3-point hitch to fixed hooks and attaching points for quick and easy connection. (iMatch hitch sold separately.)

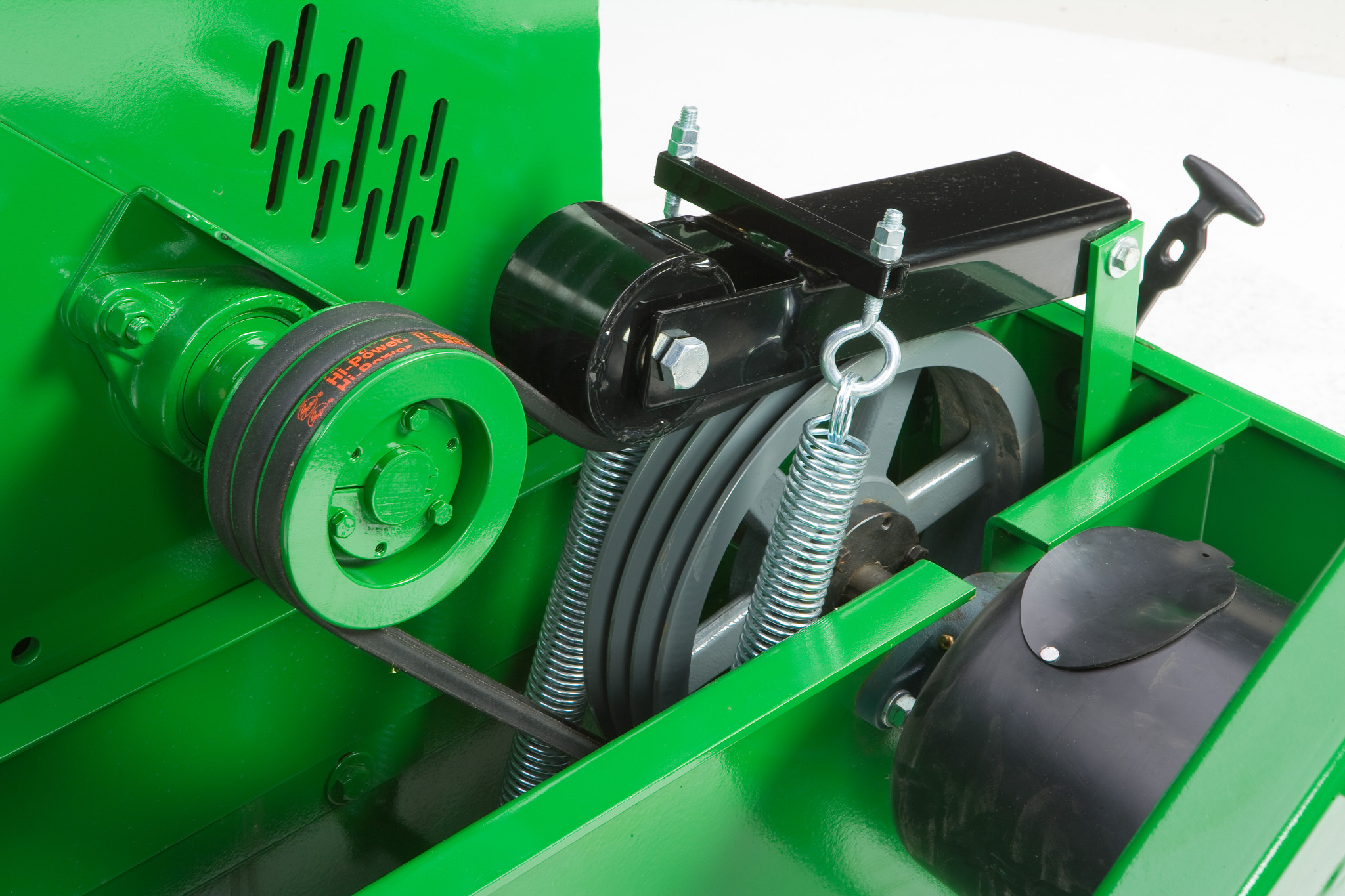

Drive System Operates Efficiently
The belt drive system allows the WC11 Series Wood Chippers to operate using less horsepower while keeping the rotor rpm at a range from 1380 to 1920 rpm, depending on the model. The WC1103 is a single belt drive, while the WC1105 has three belts.

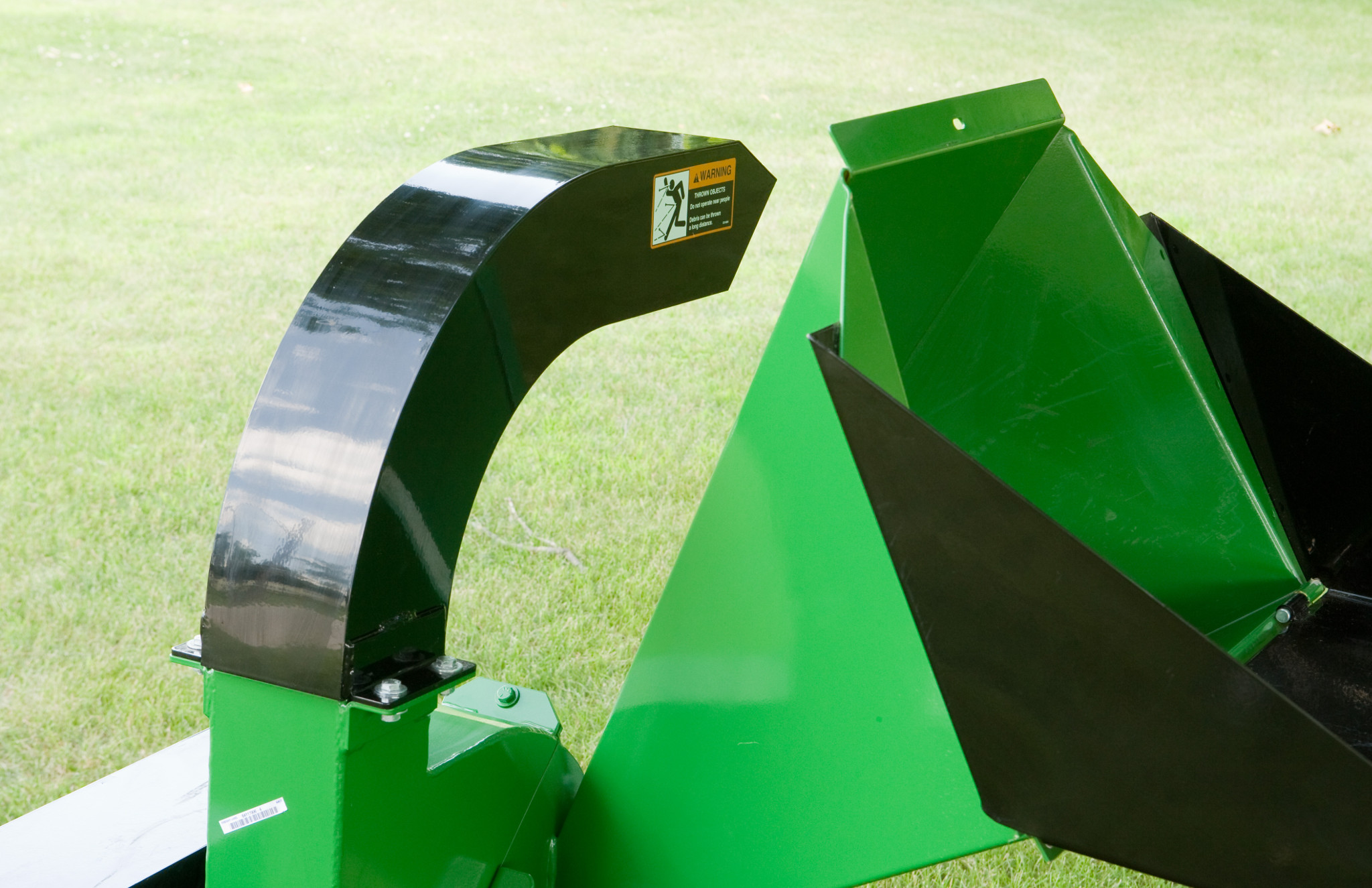

Two Position Fixed Chip Chute
Feed chute direction changes can be made simply by removing the bolts and repositioning the chute to the opposite direction. (Tools required)
Specifications
Weights
| Unit | 170 kg |
| Unit | 375 lb. |
| Rotor Style | Disc |
| Rotor Weights | 65 lb. |
| Rotor Weights | 29.5 kg |
Feed Options
| Feed Options - System | Manual (gravity) |
| Feed Options - Hopper Height | 38 in. |
| Feed Options - Hopper Height | 96 cm |
Tractor Compatibility
| HP Range (Tractor PTO hp) | 18-40 hp |
| HP Range (Tractor PTO hp) | 13.4-29.8 kW |
| PTO rpm | 540 rpm |
Dimensions
| Chip Opening | 76x140 mm |
| Chip Opening | 3x5.5 in. |
| Hopper Opening | 25x18 in. |
| Hopper Opening | 635x457 mm |
Chipping
| Knife Size | 2.5x3.5x0.3125 in. |
| Knife Size | 635x89x7.9 mm |
| Shear Bar | Adjustable hardened anvil |
| Chipping Rotor rpm | 1920 rpm |
| Knife Quantity | Two |
Belt Drive System
| Belt Drive System - Number | One |
3-Point Hitch
| 3-Point Hitch Category | Category 1 |
Warranty
| Warranty Time Period | 1 year |
Setup Time
| Set-Up Time Labor Hours | 0.5 hr |
Chip Chute
| Fixed Chip Chute | 2 positions |
