Features

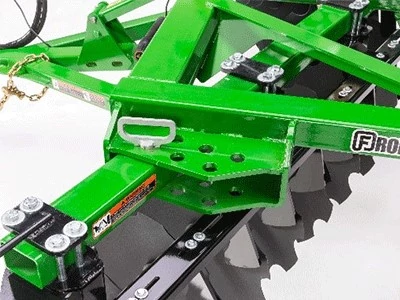

Easy Disk Gang Adjustments
This harrow allows simple gang angle adjustments with an ergonomic pin design. Operators can change the angle for optimal soil penetration or smoothing, adapting efficiently to different residue levels and soil conditions without tools.

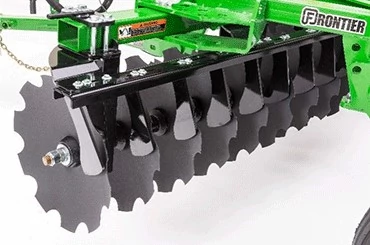

Variety of Disk Blades for Optimal Performance
The TM14D offers multiple blade configurations like notched and smooth blades for diverse soil conditions. It supports 7.5-in. or 9-in. (19-cm or 23-cm) spacings, providing flexibility in seedbed preparation and effective residue handling, suitable for various soil types.

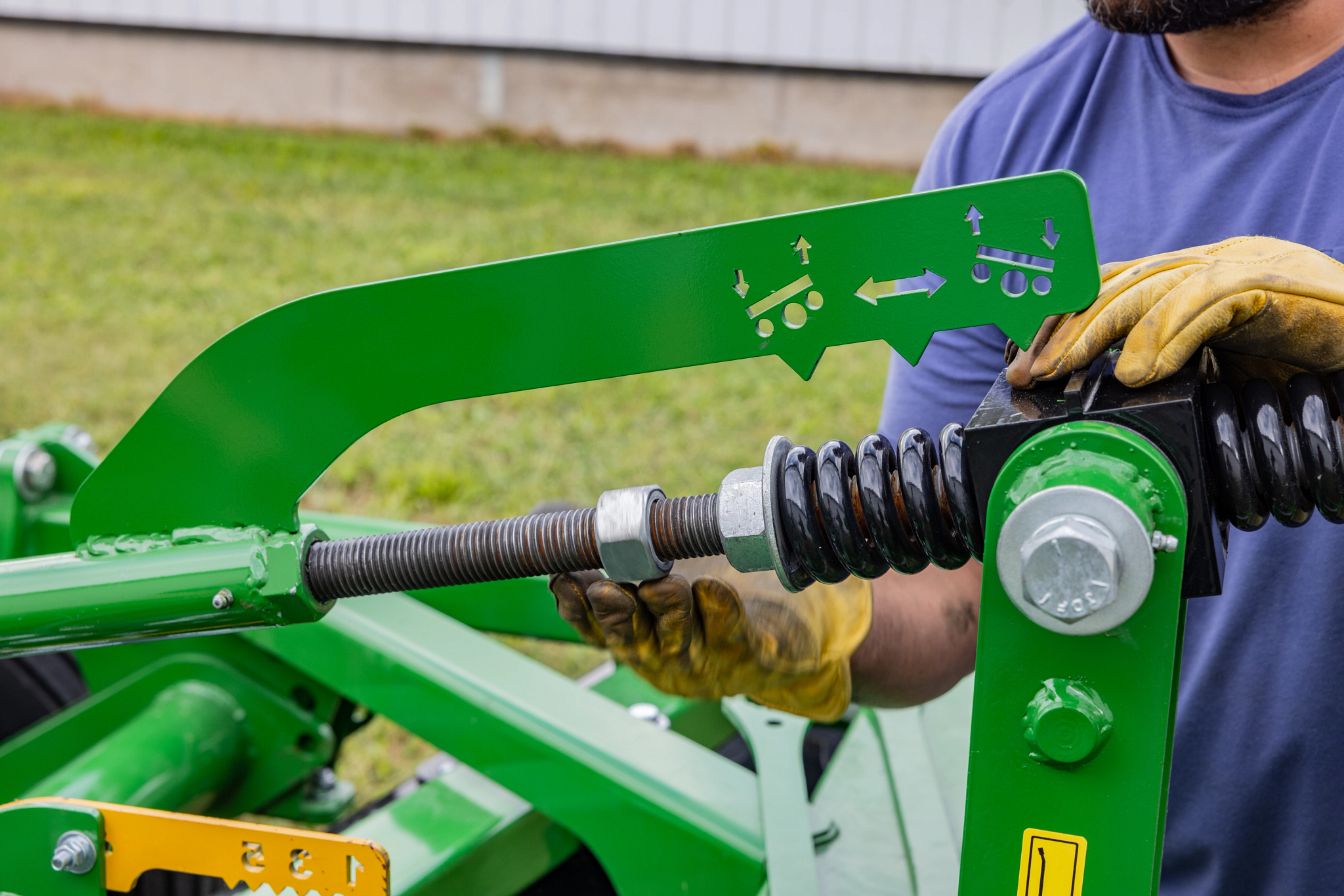

Disk Depth and Leveling
Disk depth and leveling are managed manually with crank adjustments. The depth control crank modifies how deep the disks penetrate, while the front-to-rear leveling crank prevents ridges, ensuring a smooth finished field surface.
Specifications
Field Install Kit
| Middle Breaker Kit | Optional |
| Furrow Filler Kit | Optional |
| Scraper Kit | Optional |
| Rolling Basket | Optional |
Dimensions
| Working Width | 7.5 Spacings: 124; 9 Spacings: 128 in. |
| Working Width | 7.5 Spacings: 315; 9 Spacings: 325 cm |
| Overall Width | 7.5 Spacings: 124; 9 Spacings: 128.5 in. |
| Overall Width | 7.5 Spacings: 315; 9 Spacings: 326.4 cm |
| Overall Height | 64.5 in. |
| Overall Height | 163.8 cm |
| Overall Length | 7.5 Spacings: 169; 9 Spacings: 170.5 in. |
| Overall Length | 7.5 Spacings: 429.3; 9 Spacings: 433 cm |
| Weight Per Disk | 7.5 Spacings: 88; 9 Spacings: 99-104 lb. |
| Weight Per Disk | 7.5 Spacings: 40; 9 Spacings: 44.9-47.2 kg |
| Shipping Weight | 7.5 Spacings: 3124; 9 Spacings: 3086-3232 lb. |
| Shipping Weight | 7.5 Spacings: 1417; 9 Spacings: 1399.8-1466 kg |
| Operating Weight | 7.5 Spacings: 2800; 9 Spacings: 2761-2907 lb. |
| Operating Weight | 7.5 Spacings: 1270; 9 Spacings: 1252.4-1318.6 kg |
Gang Configurations
| Disk Type | Front: Notched; Rear: Notched or Smooth (22 only) |
| Disk Diameter | 7.5 Spacings: 20; 9 Spacings: 20 or 22 |
| Disk Thickness | 20 Disk: 0.138; 22 Disk: 0.157 |
| Disk Spacings | 7.5 or 9 Spacings |
| Front Gang Angle Independent Left To Right | 12, 14, 16, 18, 20, 22 |
| Rear Gang Angle Independent Left To Right | 10, 12, 14, 16, 18, 20 |
| Tool-Less Angle Adjustment | Yes |
| Gang Axle | 1.125 square |
| Number Of Disks | 7.5 Spacings: 32; 9 Spacings: 28 |
Tires
| Type | Pneumatic |
| Size | 11L-15, 8 ply |
Miscellaneous
| Safety Chain | Standard |
| Jack | Standard |
| Transport Lights | N/A |
| Transport Wheel Locking Device | Standard |
| Hydraulic Hoses Support And Storage | Standard |
Hitch
| Category | 1 & 2 |
| Type | Drawn Level Lift with Clevis |
Bearing hanger
| Type Of Hanger | Rigid |
| Type Of Bearing | Self Aligning, Greasable Ball Bearing |
Working Adjustments
| Working Depth Control | Mechanical stopper with depth indicator |
| Working Depth Adjustment | 0-6 |
| Pitch Control | Crank Handle with Indicator |
Tractor Requirements
| Engine HP Range | 33.6-56 (45-75) kW |
