Features

Rolling Basket for Improved Field Conditions

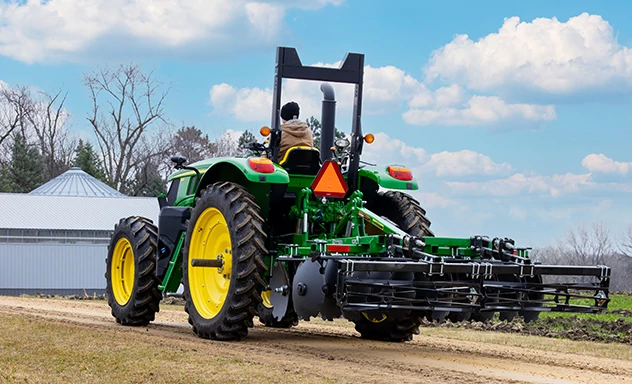

Rear view of a 6M Tractor with a TM13 Series Frontier Tandem Disk Harrow driving through a farmyard.

To help break up clods for improved levelness and uniformity of field finish, an 11-in. (27.9-cm) diameter rolling basket can be added to the TM13. With just a wrench, the down pressure of the rolling basket can be adjusted to suit the conditions.

Additional Kits Available

Close‑up of a black agricultural disc assembly showing multiple scalloped steel blades mounted on a horizontal axle, secured with metal brackets, bolts, and spacers.

A scraper kit (as pictured) is available to improve disk blade performance by removing soil buildup from disk blades in wet, sticky soil types with the scraper kit. The Furrow Filler Kit provides additional smaller-diameter disk blades to mount onto the outermost rear disk gangs, helping to fill in the furrow and eliminate ridging that can be created by the outermost disk blade.

Easy Gang Angle Adjustments

Close-up of agricultural implement frame showing a reinforced mounting bracket with a locking handle, bolt holes, warning label, and spring‑loaded adjustment components.

Each disk gang can be adjusted individually without tools for ease of use. This allows precise disk angle settings to match different soil conditions. The mismatched front and rear gang angles enable straighter tracking for a smoother finish.

Specifications

Disks

Spacing9 in.
Spacing22.9 cm
Quantity20
Notched (Front) Notched (Rear)Optional
Notched (Front) Smooth (Rear)Optional

Dimensions

Working Width96 in.
Working Width243.8 cm
Overall Width98.375 in.
Overall Width250 cm
Overall Height48 in.
Overall Height122 cm
Overall Length72.75 in.
Overall Length185 cm
Weight Per Disk65 lb.
Weight Per Disk29.5 kg
Operating Weight1346 lb.
Operating Weight610.5 kg

Weight

Operating Weight1346 lb.
Operating Weight610.5 kg
Weight Per Disc65 lb.
Weight Per Disc29.5 kg

Disk Hillers

Disk Spacing9 in.
Disk Spacing22.9 cm
Disk Thickness0.16 in.
Disk Thickness4 mm
Disk Diameter22 in.
Disk Diameter55.88 cm
Number Of Disks20
Notched (Front) / Notched (Rear)Optional
Notched (Front) / Smooth (Rear)Optional

Gang axle

Diameter1.125 in.
Diameter2.86 cm
TypeSquare
MaterialAISI 1045

Hitch

CategoryCategory 1 & Category 2
iMatch / Quick HitchYes
TypeIntegral
Height To Hitch Pins20 in.
Height To Hitch Pins50.8 cm

Gang angles

Front Gang Angles6,11,16,21 degree (angle)
Rear Gang Angles4,9,14,19 degree (angle)

Bearing hanger

Bearing Type1 1/8 SQ with steel flanges
Material Thickness3/16 U-shape x 3/8 top plate

Tractor Requirements

Engine HP Range33.6-74.6 (45-100) kW

Setup Time

Approximate Assembly Time30 minutes
Scraper KitOption
Furrow Filler KitOption
Rolling BasketOption

Tubing

Gang / Frame Tubing3x3 square

Construction

Gang / Frame Tubing4x3 rectangle
