Features
Brush Diameter for Large Jobs
The 32-in. (83-cm) diameter brush is large enough for the toughest jobs.
Angling Degree Range

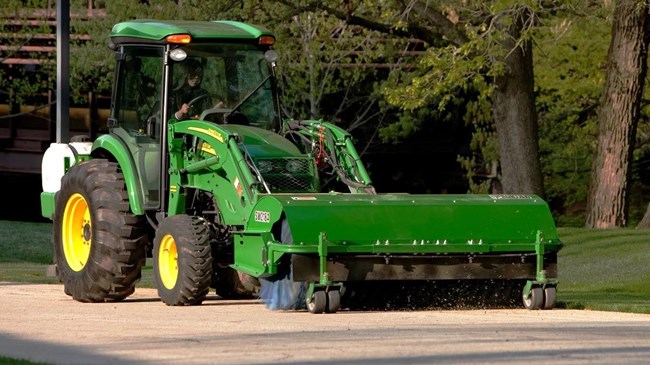

The loader-mount hydraulic rotary broom has an angling range from 0 to 23 degrees both left and right. Setting the angle allows for the windrowing of material off of surfaces.
Optional Dust Suppression System
The optional dust suppression system consists of a 60 gal. (227 L) tank supplying water up the nozzles that are positioned in the front of the broom. The nozzles are easily controlled by a toggle switch located by the height hitch lever.
Specifications
Dimensions
| Machine Length | 69 in. |
| Machine Length | 175 cm |
| Machine Width | 96 in. |
| Machine Width | 244 cm |
| Power Pack Width | 38 in. |
| Power Pack Width | 97 cm |
| Machine Height | 34.25 in. |
| Machine Height | 87 cm |
| Power Pack Height | 52 in. |
| Power Pack Height | 132 cm |
Weight
| Machine Operating Weight | 920 lb. |
| Machine Operating Weight | 417 kg |
| Power Pack Operating Weight | 535 lb. |
| Power Pack Operating Weight | 243 kg |
| Machine Shipping Weight | 1237 lb. |
| Machine Shipping Weight | 561 kg |
| Power Pack Shipping Weight | 535 lb. |
| Power Pack Shipping Weight | 243 kg |
Tractor Compatibility
| PTO Minimum Power | 35 hp |
| PTO Minimum Power | 26.1 kW |
| PTO | 540 rpm |
| Current John Deere Loader Series | 400 |
Hydraulics
| Operating Pressure | 3000 psi |
| Operating Pressure | 207 bar |
| Flow Required At Operating Pressure | 16 gpm |
| Flow Required At Operating Pressure | 61 L/min |
| Power Pack Reservoir | 15 gal. |
| Power Pack Reservoir | 57 L |
| System Capacity | 17 gal. |
| System Capacity | 64 L |
Construction
| Hood Thickness | 0.0747 in. |
| Hood Thickness | 0.19 cm |
| Side Frame Construction | 0.1875 in. |
| Side Frame Construction | 0.48 cm |
Shipping
| Configuration | Wood crate |
| Units Per Crate | 1 |
Brush
| Standard Bristle Materials | Poly |
| Standard Bristle Materials - Diameter | 32 in. |
| Standard Bristle Materials - Diameter | 81 cm |
| Standard Bristle Materials - Number Of Brush Wafers | 46 |
| Optional Bristle Material | Combination (poly/wire) |
| Optional Bristle Materials - Diameter | 32 in. |
| Optional Bristle Materials - Diameter | 81 cm |
| Optional Bristle Material - Number of Brush Wafers | 46 |
Gauge Wheels
| Standard | Optional |
| Material | Solid |
| Location | Front |
| Size (Diameter) | 3.5x10 in. |
| Size (Diameter) | 89x254 mm |
| Adjustable Height Range - Total | 7.5 in. |
| Adjustable Height Range - Total | 190.5 mm |
| Adjustable Height Range - Underground Level | 2.5 in. |
| Adjustable Height Range - Underground Level | 63.5 mm |
Angling
| Angling Range - Left | 23 degree (angle) |
| Angling Range - Center | 0 degree (angle) |
| Angling Range - Right | 23 degree (angle) |
| Shear Pin Protection | Standard |
| Angling Method | Hydraulic |
Setup Time
| Labor Hours | 0.5 hr |
| Labor Hours- With Power Pack | 0-2.5 hr |
Miscellaneous
| Quantity Of Parking Stands Standard With Unit | 4 |
| Hydraulic Protection (Relief Valve) | Standard |
| Dust Deflector | Optional |
| Dust Suppression System (60-Gal. Water Tank) | Optional |
| Brackets For De-Icer Optional System | Standard |
Operation
| Working Width | 84 in. |
| Working Width | 213.36 cm |
| Working Width At Maximum Angle | 77 in. |
| Working Width At Maximum Angle | 195.58 cm |
| Brush Speed | 200 rpm |
Warranty
| Time Period (Machine) | 1 year |
