John Deere SS1023B
Double tap to zoom
SS1023B
Tractor Attachments and Implements
Overview:

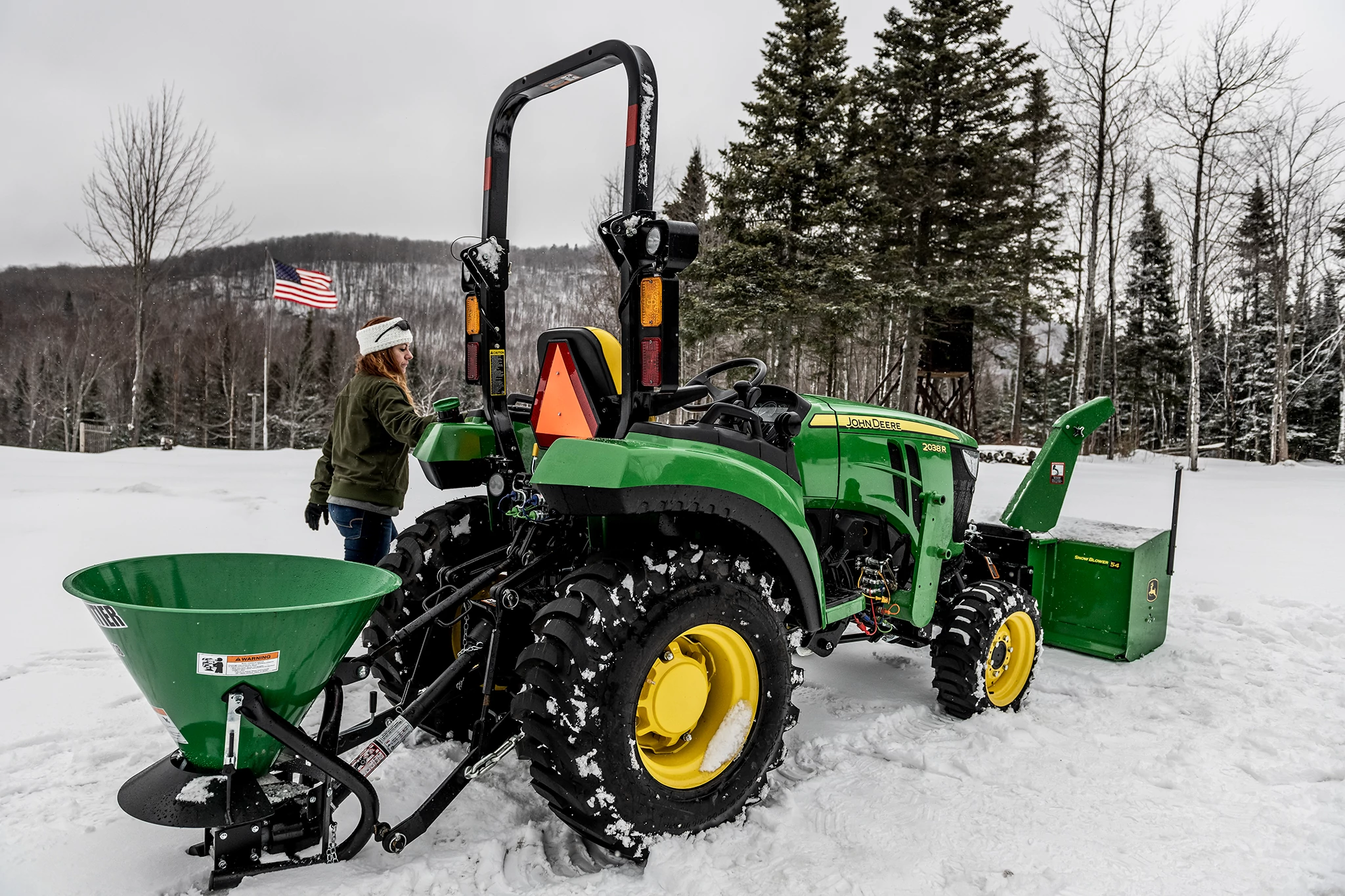

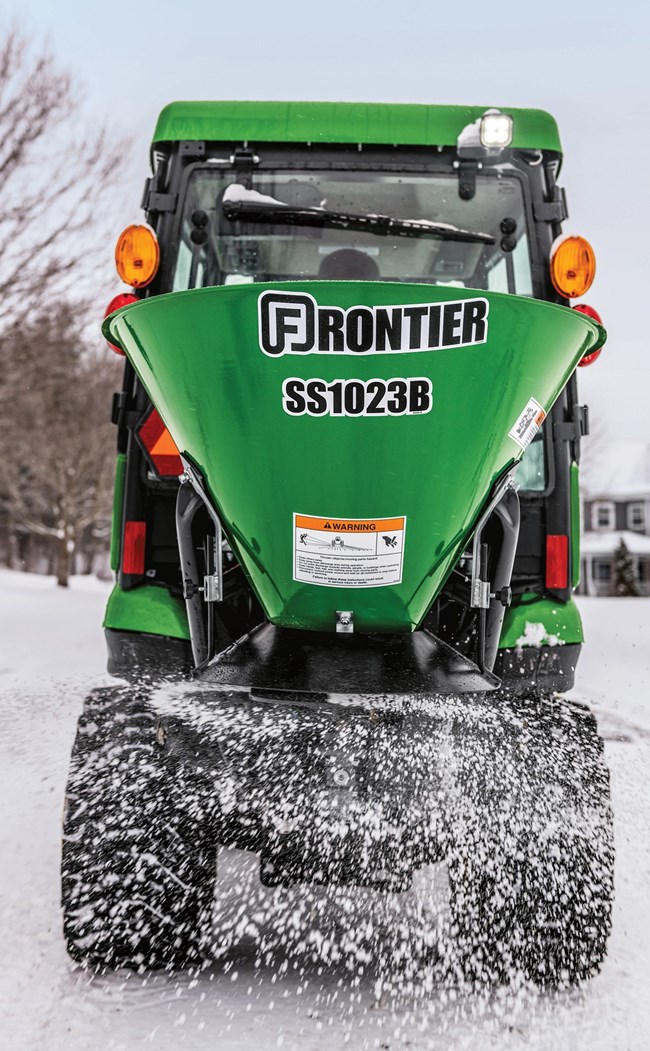

The Frontier™ SS1023B evenly broadcasts granular materials across fields, lawns, or paths with precision and durability. It offers three swath settings—left, right, or full—to spread seed, fertilizer, sand, or salt efficiently.
- Hopper Capacity: 226 lb (102.5 kg)
- Working Width: 23 ft. (7 m) Swath
- Hitch: Cat. 0 and 1
- All Steel Hopper
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Power Take-off (PTO) Driven Broadcast Spreaders
With the PTO-Driven Broadcast Spreader, you can spread seed, granular fertilizers, crystalline herbicide, pesticide, sand, and salt at 540 RPM’s and in three diverse patterns.
Hitching Capabilities
The broadcast spreader is compatible with tractors featuring Category 0 and 1 3-point hitches.
Spreader Strong Enough for Rough Handling and Heavy Use
The one-piece, seamless, all-steel hoppers are strong enough to endure rough handling and heavy use. Each unit features heat-treated paint to prevent corrosion and comes standard with a fixed agitator and shielded driveline gearbox.
Specifications
Dimensions
| Hopper Loading Height | 78.7 cm |
| Hopper Loading Height | 31 in. |
| Hopper Width | 32 in. |
| Hopper Width | 81.3 cm |
Weight
| Shipping (Per Pair) | 232 lb. |
| Shipping (Per Pair) | 105.2 kg |
| Hopper Capacity | 102.5 kg |
| Hopper Capacity | 226 lb. |
| Machine | 36.7 kg |
| Machine | 81 lb. |
Range
| Swath Spread | 7 m |
| Swath Spread | 23 ft |
PTO
| Tractor Horsepower Range | 16-30 hp |
| Tractor Horsepower Range | 12-22.8 kW |
| Shaft Category | 1: Heavy-duty shielded; 3.5 cm 1.375 in. |
| RPM | 540 rpm |
Hopper
| Volume Capacity | 3.5 cu ft |
| Volume Capacity | 0.1 m³ |
| Material | Steel |
Warranty
| Time Period | 1 year |
Setup Time
| Labor Hours | 0.5 |
Hitch
| Type | 3-point, Category 1 |
