John Deere SP2284B

Double tap to zoom

SP2284B

Tractor Attachments and Implements

Overview:

The Frontier™ SP2284B - 7 ft Heavy Duty Soil Pulverizer - Bar Type offers exceptional durability and efficiency for soil preparation, ensuring superior ground leveling and pulverizing capabilities for professional-grade agricultural and landscaping applications.

Compression Springs for Added Force
Cutting Teeth for Superior Soil Preparation
iMatch™ Compatible
Steel Roller Studded With Spikes

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

iMatch™ Quick-Hitch Compatibility

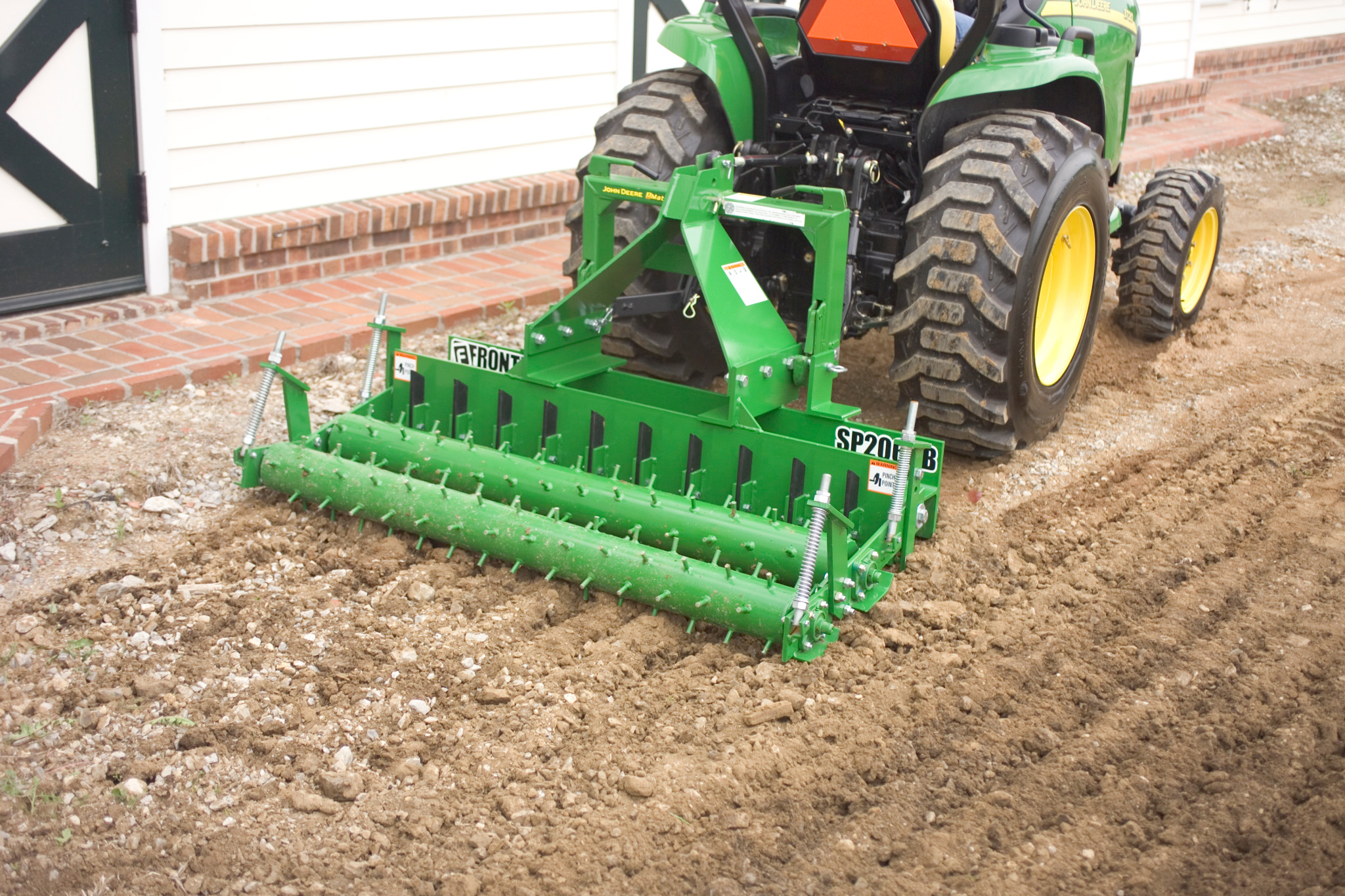

Compact tractor pulling a green soil pulverizer over a dirt surface, leaving a leveled and finely textured seedbed behind it

The iMatch™ quick-hitch system converts the tractor's 3-point hitch to fixed hooks for a super-quick connection.

Compression Springs Provide Added Force

Close-up of a mounting bracket with a visible coil spring, bolted cylindrical bearing housing, and evenly spaced metal spikes along the top.

The SP22 Series features two 160-lb. (72.6-kg) compression springs to ensure the roller remains in contact with the ground. This force allows the spikes to penetrate the soil up to 1-in. (25.4-mm) deep, providing effective soil pulverization.

Cutting Teeth for Superior Soil Preparation

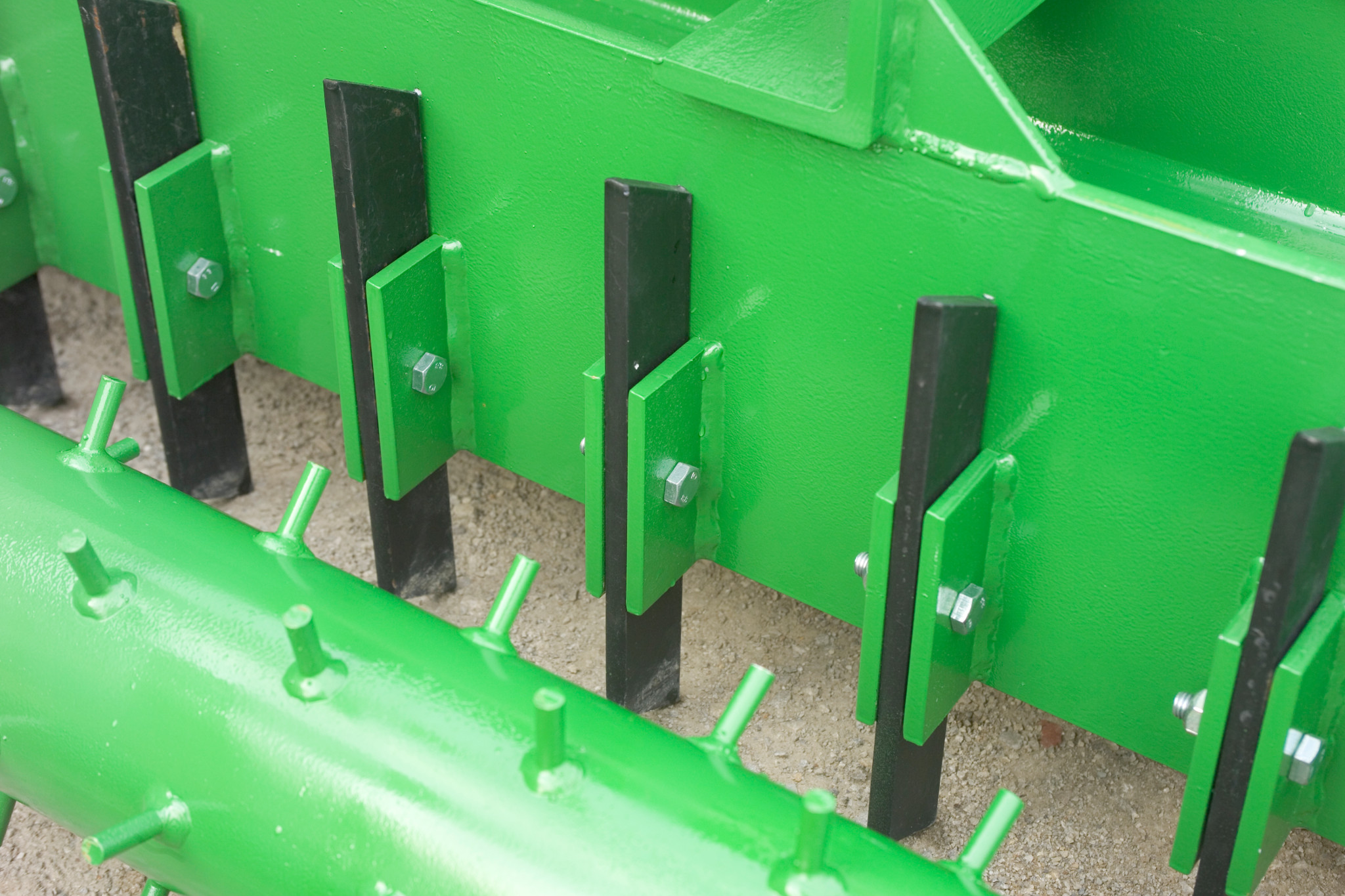

Close-up of green soil pulverizer showing a row of vertical black blades mounted to brackets behind a spiked green roller

The SP20 Series Soil Pulverizers feature a double set of 0.5-in. x 2-in. (12.7-mm x 50.8-mm) bar-type cutting teeth. Their staggered mounting slices the surface every 2.8-in. (71.1-mm) for superior soil preparation. The teeth are reversible for extra life.

Specifications

Scarifying Teeth

Scarifying Teeth - Rear Quantity	14
Scarifying Teeth - Front Quantity	15
Rear Dimensions	1.3x5.1 cm
Rear Dimensions	0.5x2 in.
Front Dimensions	0.5x2 in.
Front Dimensions	1.3x5.1 cm
Type Of Scarifying Teeth	Bar

Dimensions

Height	39 in.
Height	99.1 cm
Working Width	213.4 cm
Working Width	84 in.
H-Beam	30.5x29.2 cm
H-Beam	12x11.5 in.

Weight

Operating Weight	396.9 kg
Operating Weight	875 lb.
Shipping Weight	940 lb.
Shipping Weight	426.4 kg

Tractor Compatibility

Tractor Horsepower	22.4-52.2 kW
Tractor Horsepower	30-70 hp

Compression Springs

Down Pressure Per Spring	160 lb.
Down Pressure Per Spring	72.6 kg
Quantity	2

Roller

Roller Pin Quantity	124
Bearing Size	2.5 cm
Bearing Size	1 in.
Roller Pin Size	0.38x1 in.
Roller Pin Size	1x2.5 cm
Roller Diameter	6.6 in.
Roller Diameter	16.8 cm

Second Roller Assembly (Optional)

Spring Down Pressure Per Spring	36.3 kg
Spring Down Pressure Per Spring	80 lb.
Spring Quantity	2

Hitch

Hitch Category

Category 1

Duty

Type

Heavy

Warranty

Time Period

One year

Setup Time

Labor Hours

0.5 hr
