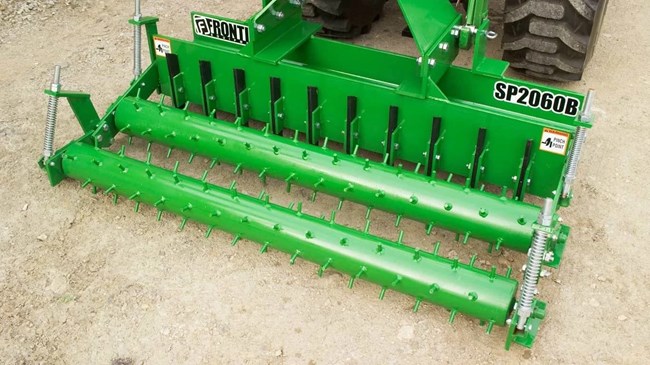

John Deere SP2060B

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / SP2060B

Double tap to zoom



Features

Compression Springs

Close-up of a mounting bracket with a visible coil spring, bolted cylindrical bearing housing, and evenly spaced metal spikes along the top.

The SP20 Series Soil Pulverizers have two 160-lb. (72.6-kg) compression springs to keep the roller in contact with the ground and force the spikes into the soil down to 1-in. (25.4-mm) deep.

iMatch™ Quick-Hitch Compatibility

Compact tractor pulling a green soil pulverizer over a dirt surface, leaving a leveled and finely textured seedbed behind it

The iMatch™ quick-hitch system converts the tractor's 3-point hitch to fixed hooks for a super-quick connection.

Cutting Teeth for Soil Preparation

Close-up of green soil pulverizer showing a row of vertical black blades mounted to brackets behind a spiked green roller

The SP20 Series Soil Pulverizers feature a double set of 0.5-in. x 2-in. (12.7-mm x 50.8-mm) bar-type cutting teeth. Their staggered mounting slices the surface every 2.8-in. (71.1-mm) for superior soil preparation. The teeth are reversible for extra life.

Specifications

Scarifying Teeth

Scarifying Teeth - Rear Quantity10
Scarifying Teeth - Front Quantity11
Rear Dimensions1.3x5.1 cm
Rear Dimensions0.5x2 in.
Front Dimensions0.5x2 in.
Front Dimensions1.3x5.1 cm
Type Of Scarifying TeethBar

Dimensions

Height39 in.
Height99.1 cm
Working Width152.4 cm
Working Width60 in.
H-Beam25.4x25.4 cm
H-Beam10x10 in.

Weight

Operating Weight295.7 kg
Operating Weight652 lb.
Shipping Weight702 lb.
Shipping Weight318.4 kg

Tractor Compatibility

Tractor Horsepower22.4-33.6 kW
Tractor Horsepower30-45 hp

Compression Springs

Down Pressure Per Spring160 lb.
Down Pressure Per Spring72.6 kg
Quantity2

Roller

Roller Pin Quantity88
Bearing Size2.5 cm
Bearing Size1 in.
Roller Pin Size0.38x1 in.
Roller Pin Size1x2.5 cm
Roller Diameter5.6 in.
Roller Diameter14.1 cm

Second Roller Assembly (Optional)

Spring Down Pressure Per Spring36.3 kg
Spring Down Pressure Per Spring80 lb.
Spring Quantity2

Hitch

Hitch CategoryCategory 1

Duty

TypeStandard

Warranty

Time PeriodOne year

Setup Time

Labor Hours0.5 hr
