Features
Hydraulic Drum Rotation
On all SB13R models, the hydraulic drum rotation is standard and is great for operators who want to move large amounts of snow at a faster rate of speed while consuming less horsepower when discharging snow out the drum door. The drum door is hydraulically opened and closed, allowing operators to discharge snow to the side when it is open or discharge snow through the chute when the door is closed. All of this can be done without ever leaving the seat of the tractor.

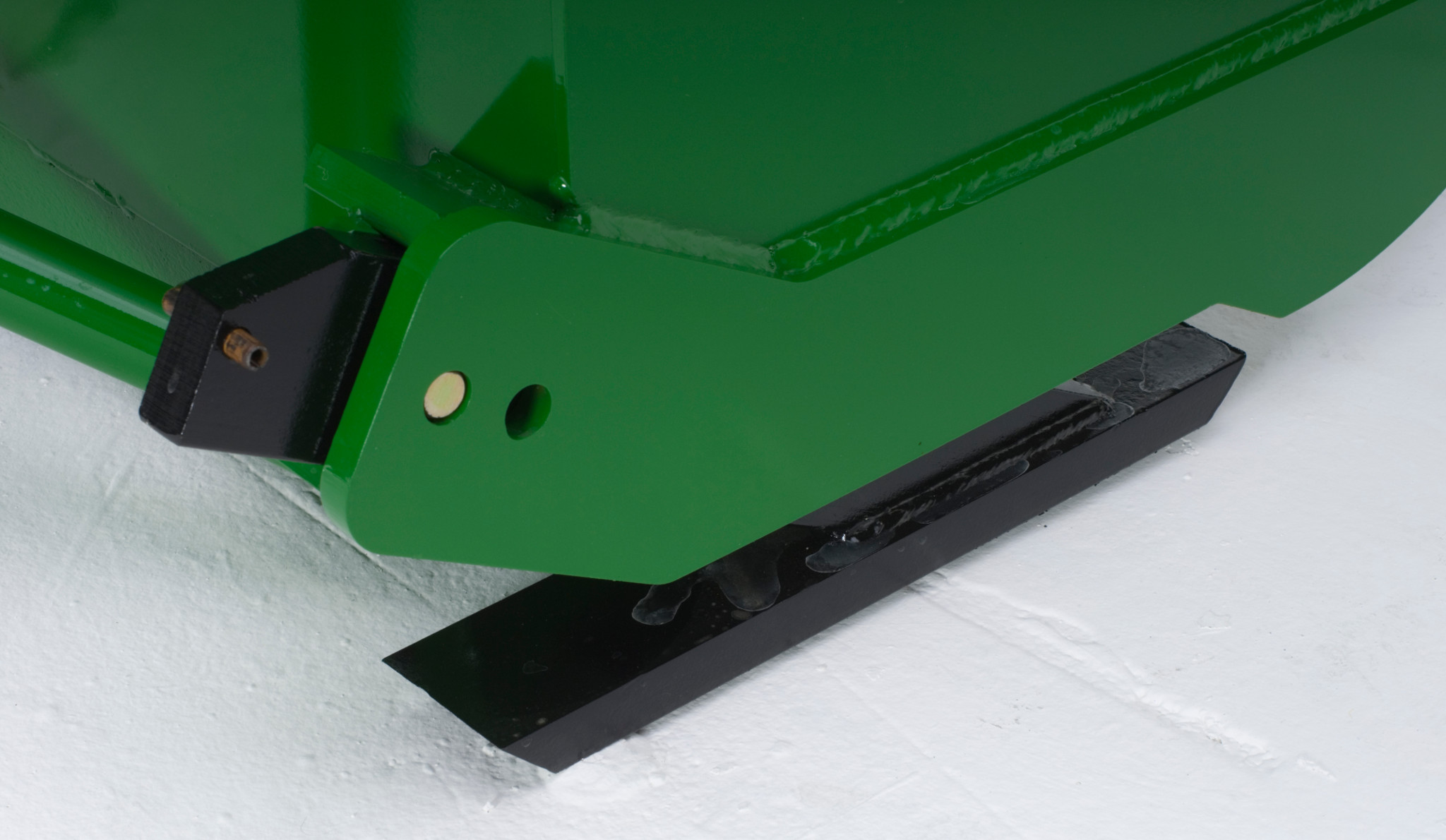

Adjustable Skid Shoes Increase Durability
The adjustable steel skid shoes on the SB13 Series increase the durability and life of the snowblowers.

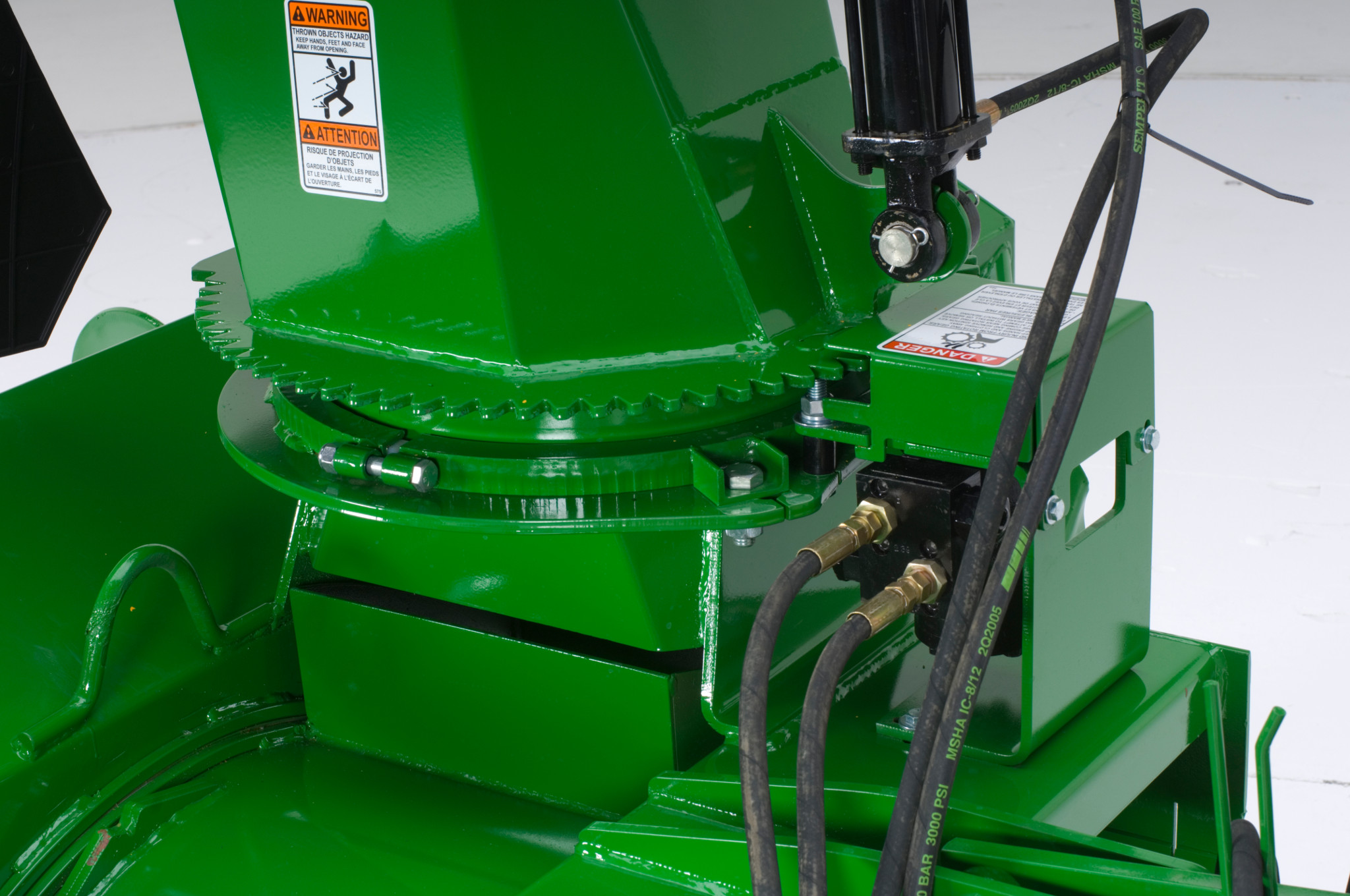

Hydraulic Chute Rotation Blows Snow Anywhere
All SB13 Series Snowblowers are equipped with hydraulic chute rotation. Chute rotation adds versatility by allowing the operator to blow snow exactly where they want it to go.
Specifications
Auger
| Auger - Single / Dual | Single/Dual |
| Auger Diameter | 61 cm |
| Auger Diameter | 24 in. |
| Auger Speed | 190 rpm |
| Auger Flighting Thickness | 7/16 in. (1.11 cm) |
| Second Auger Diameter | 15 in. (38.1 cm) |
Weights
| Operating Weight | 2233 lb. |
| Operating Weight | 1012.87 kg |
| Shipping Weight | 1034.19 kg |
| Shipping Weight | 2280 lb. |
Chute
| Chute Rotation Degrees | 270 degree (angle) |
| Chute Type | Two part: Includes manual deflector; Three part: Includes cylinder (2 in. x 8 in.), hoses, and tips; Base: Heavy Duty |
| Chute Diameter | 37.78 cm |
| Chute Diameter | 14.875 in. |
| Standard Chute Deflector Adjustment | Manual - Must Choose a Chute Option |
| Chute Rotation Type | Hydraulic motor chute rotation |
| Optional Chute Deflector Adjustment | Hydraulic Cylinder (2 in. x 8 in.); Including hoses and tips |
Dimensions
| Transport Width | 251.5 cm |
| Transport Width | 99 in. |
| Working Width | 98 in. |
| Working Width | 248.9 cm |
| Working Height | 44 in. |
| Working Height | 111.8 cm |
| Length | 170.2 cm |
| Length | 67 in. |
Setup Time
| Set-Up Time Labor Hours | 100 minutes |
Tractor Compatibility
| PTO Speed | 540 rpm (1000 rpm optional) rpm |
| Minimum Power | 67.11 kW |
| Minimum Power | 90 hp |
| Maximum Power | 134.22 kW |
| Maximum Power | 180 hp |
Housing
| Side Panel Thickness | 0.63 cm |
| Side Panel Thickness | 0.63 in. |
| Impeller Housing Thickness | 0.48 cm |
| Impeller Housing Thickness | 0.19 in. |
Impeller
| Impeller Shaft Diameter | 2 in. |
| Impeller Shaft Diameter | 5.1 cm |
| Impeller Width | 14 in. |
| Impeller Blades | Six |
| Impeller Width | 35.6 cm |
| Impeller Diameter | 31.5 in. |
| Impeller Diameter | 80 cm |
| Impeller Speed | 540 rpm |
Hitch
| Hitch Compatibility | Category II/III |
| Compatibility With Quick Hitch | Quick Hitch Compatible |
| Parking Stand | Standard |
Skid Shoes
| Adjustable And Replaceable Skid Shoe | Adjustable |
| Skid Shoe Material | Steel |
Chain
| Chain Roller | 80 |
| Chain Idler Adjustment | Automatic |
Cutting Edge
| Cutting Edge Type | Bolt-on / Reversible |
| Cutting Edge Dimension | 0.5 x 4 in. |
| Cutting Edge Dimension | 1.27 x 10.2 cm |
Drive
| Number Of Auger Shearbolt | 5/16 in. (0.79 cm) 5 SAE |
Drum
| Drum Rotation | Standard |
