John Deere SB1154
Double tap to zoom
SB1154
Tractor Attachments and Implements
Overview:

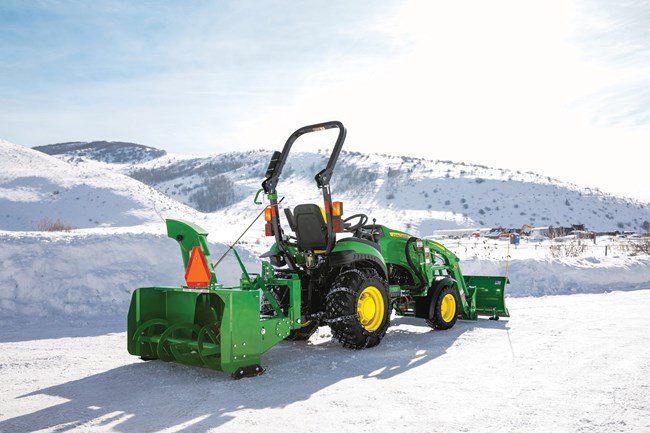

The Frontier™ SB1154 is a powerful 3-point snow blower. It moves snow out of the way so you can get on with your work.
- 54-Inch Width
- Chute Deflector for Easy Snow Removal
- Optional Hydraulic Chute Rotation
- Adjustable Steel Skid Shoes Prevent Gouging
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

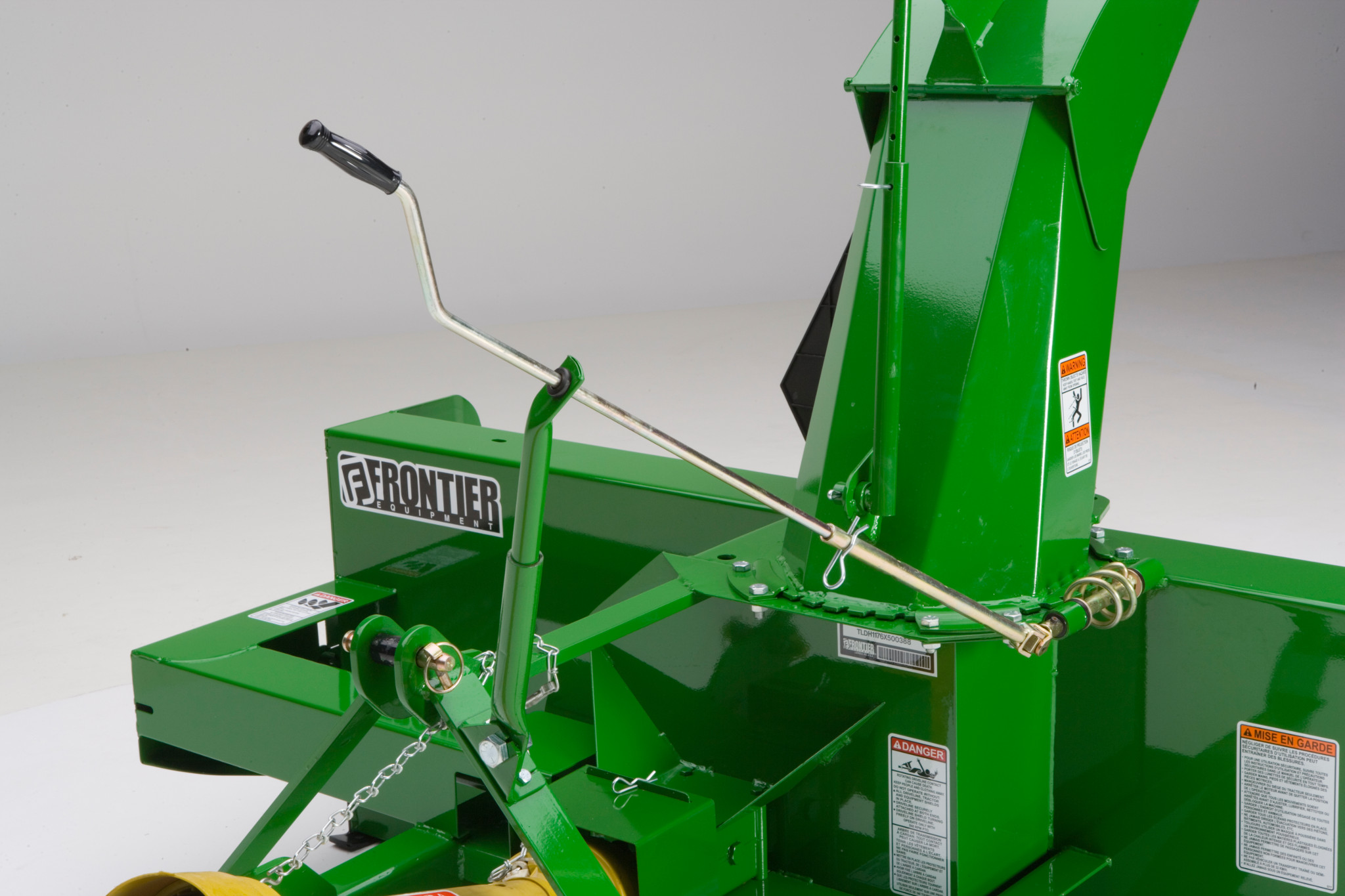

Chute Rotation Can Be Easily Adjusted for Versatility
Chute rotation adds versatility by allowing operators to blow snow exactly where they want it. Standard-equipped manual chute rotation adjustments are easily done from the seat of the tractor.

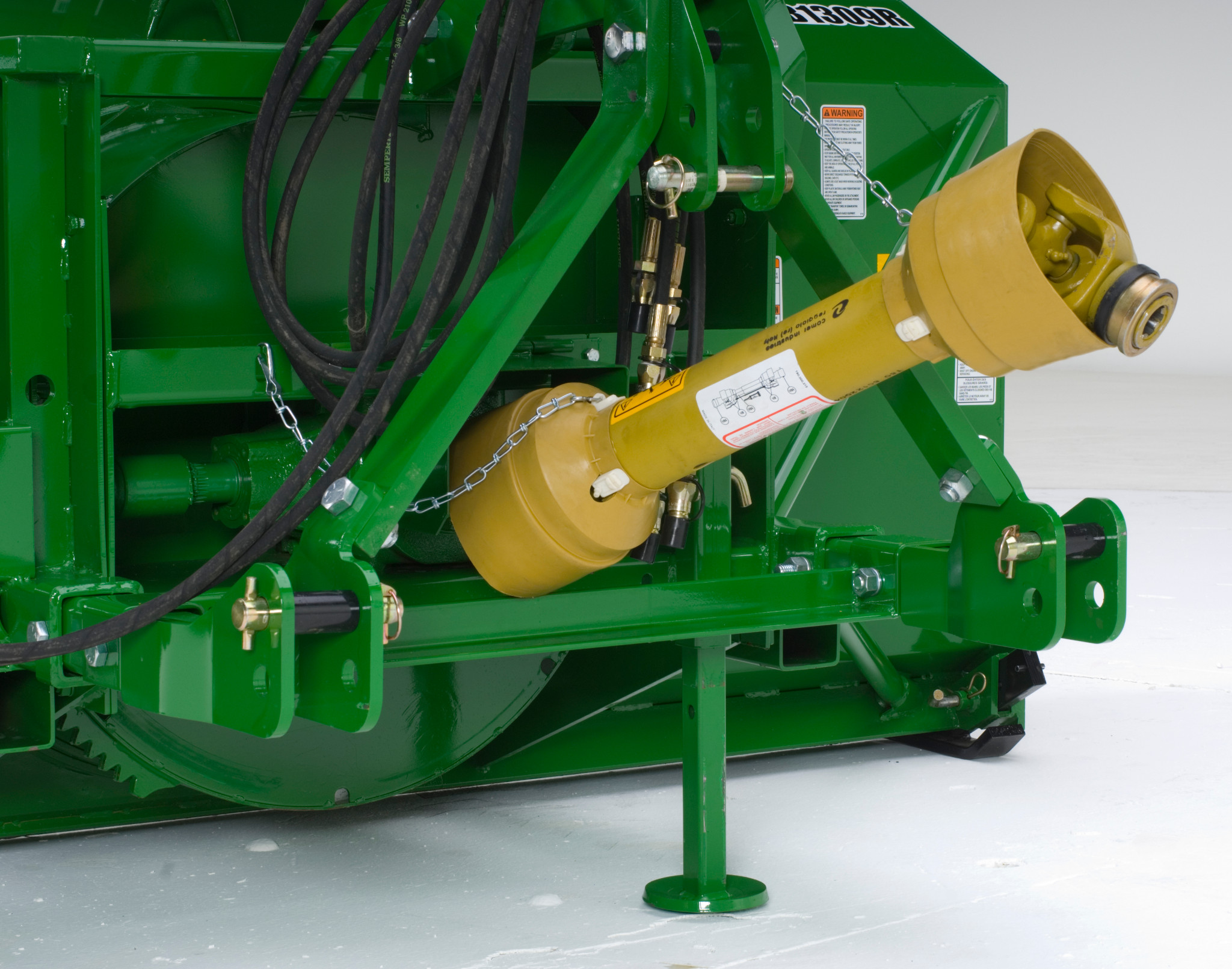

Multiple Hitch Capabilities for Different Uses
SB11 Series Snowblowers have different hitch capabilities. Models SB1148, SB1154, SB1164, and SB1174 are Category 1 and iMatch compatible. Model SB1184 is Category 1 and iMatch compatible and Category 2 and Quik-Coupler compatible. Model SB1194 is Category 2 and Quik-Coupler compatible.

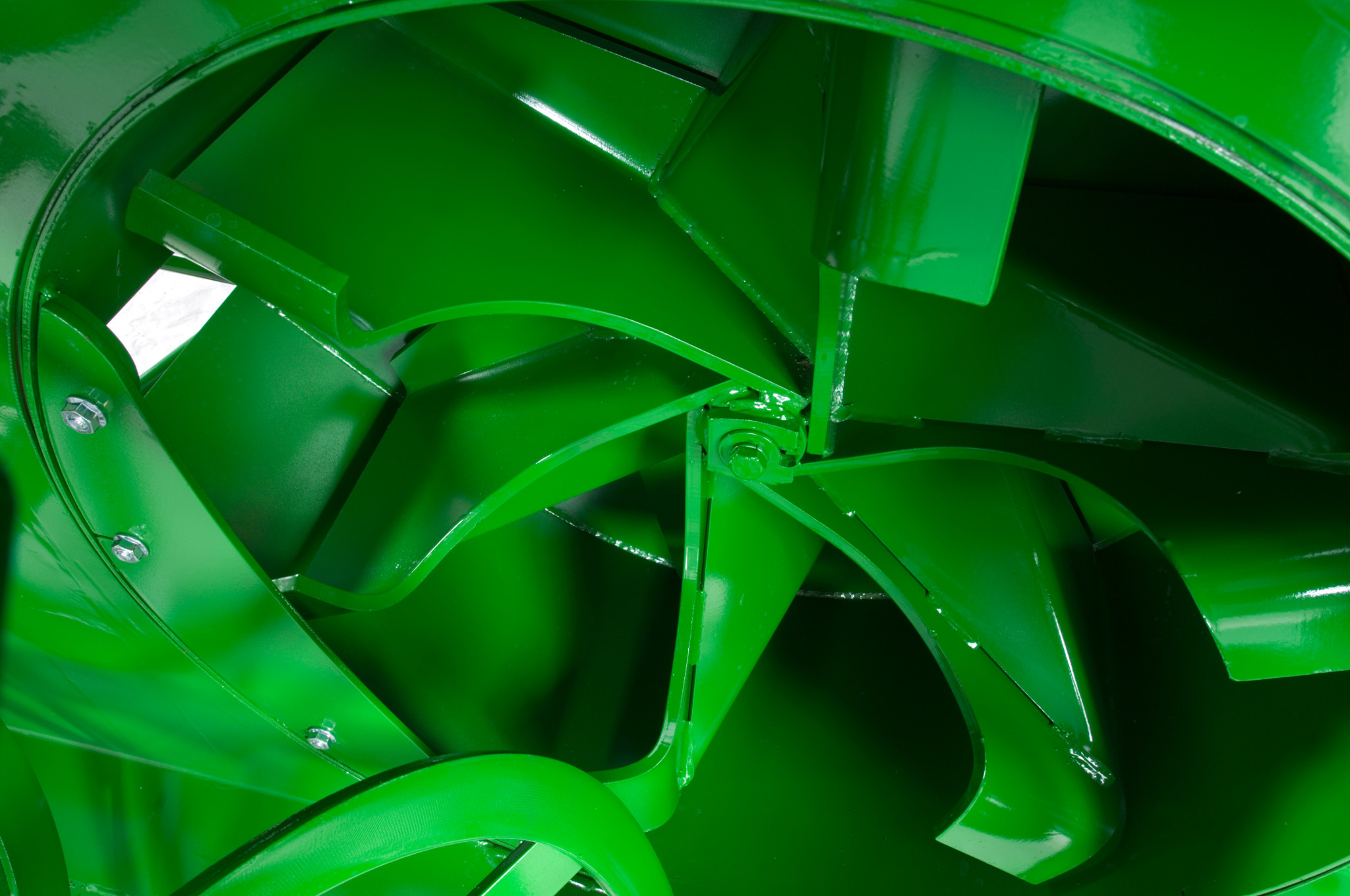

Impeller Blade Provides Fast Snow Removal
Moving snow faster and blowing it farther is simple with four impeller blades on the SB11 Series Snowblowers.
Specifications
Impeller
| Impeller Width | 7 in. |
| Impeller Blades | Four |
| Impeller Width | 17.8 cm |
| Impeller Diameter | 24 in. |
| Impeller Diameter | 61 cm |
| Impeller Speed | 540 rpm |
Warranty period
| Gear Box Warranty Period | 1 year |
| Machine Warranty Period | 1 year |
Auger
| Auger Diameter | 38.1 cm |
| Auger Diameter | 15 in. |
| Auger Speed | 170 rpm |
| Auger Overload Protection | Single |
Weights
| Operating Weight | 475 lb. |
| Operating Weight | 215.5 kg |
| Shipping Weight | 229.1 kg |
| Shipping Weight | 505 lb. |
Chute
| Chute Rotation Degrees | 210 degree (angle) |
| Chute Type | Two-part |
| Chute Diameter | 20.3 cm |
| Chute Diameter | 8 in. |
| Standard Chute Deflector Adjustment | Manual |
| Chute Rotation Type | Manual or hydraulic |
| Optional Chute Deflector Adjustment | Hydraulic cylinder or electric actuator |
Dimensions
| Height | 26 in. |
| Height | 66 cm |
| Transport Width | 138.4 cm |
| Transport Width | 54.5 in. |
| Working Width | 137.2 cm |
| Working Width | 54 in. |
| Length | 99.1 cm |
| Length | 39 in. |
Tractor Compatibility
| PTO Overload Protection | Shearbolt |
| PTO Speed | 540 rpm rpm |
| Minimum Power | 16 hp |
| Minimum Power | 11.9 kW |
| Maximum Power | 26.1 kW |
| Maximum Power | 35 hp |
Setup Time
| Set-Up Time Labor Hours | 1 hour |
Chain
| Chain Roller | 60 |
| Chain Idler Adjustment | Manual |
Hitch
| iMatch Compatibility | Yes |
| Hitch Compatibility | Category 1 |
Cutting Edge
| Cutting Edge Type | Welded |
Skid Shoes
| Skid Shoe Type | Steel, adjustable |
