Features

Quik-Change Capability

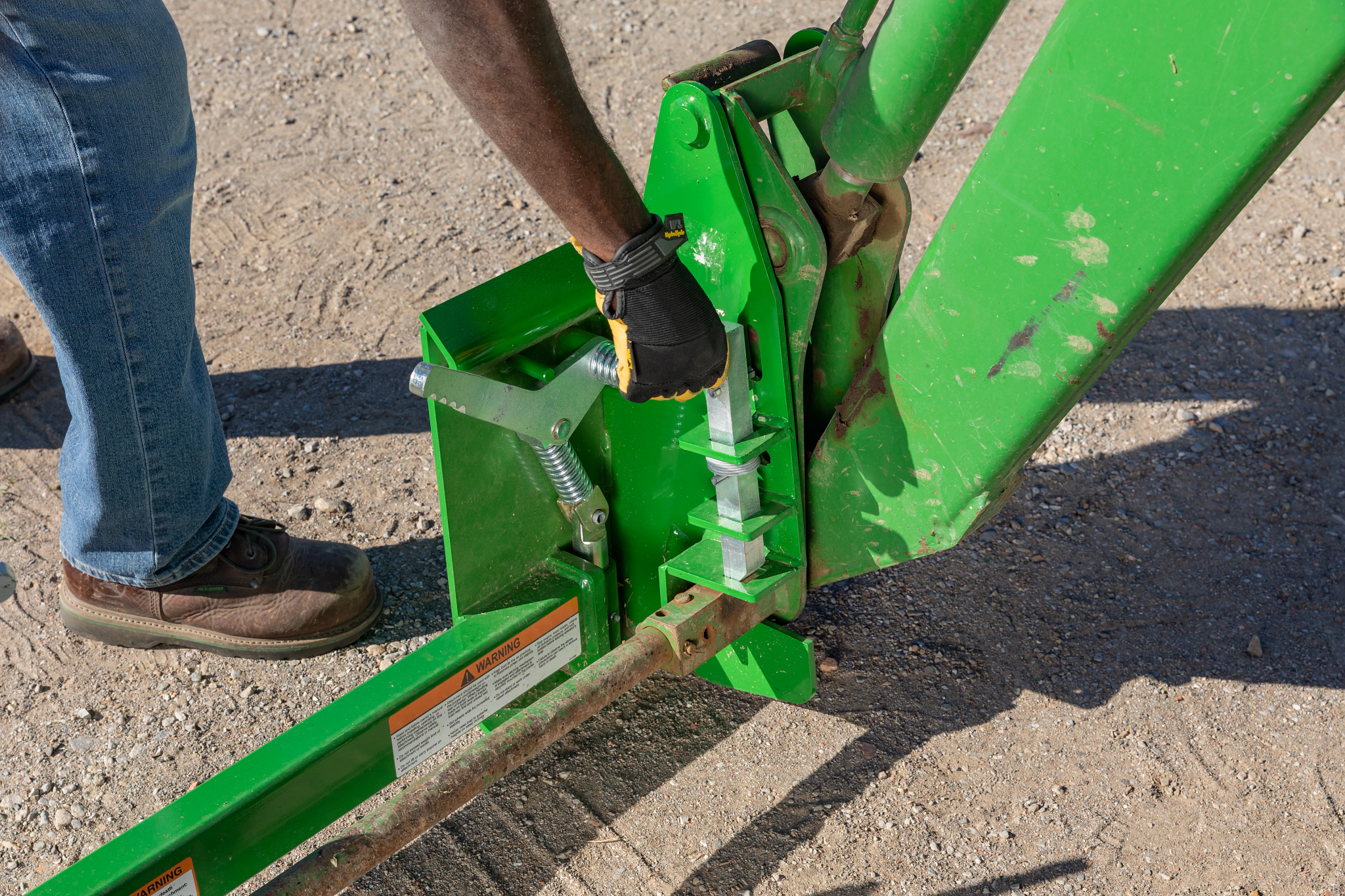

Gloved hand locking the SA22D loader carrier adapter in place on a loader

Hook up the skid steer carrier adapter by lining up the loader’s connecting point to the attachment frame, picking up the attachment, and locking it in place, converting your John Deere Quik-Change to skid steer style carrier. The carrier can also be left hooked to the attachment when using another attachment with a different style carrier.

Use Skid Steer Attachments With Carrier Adapter

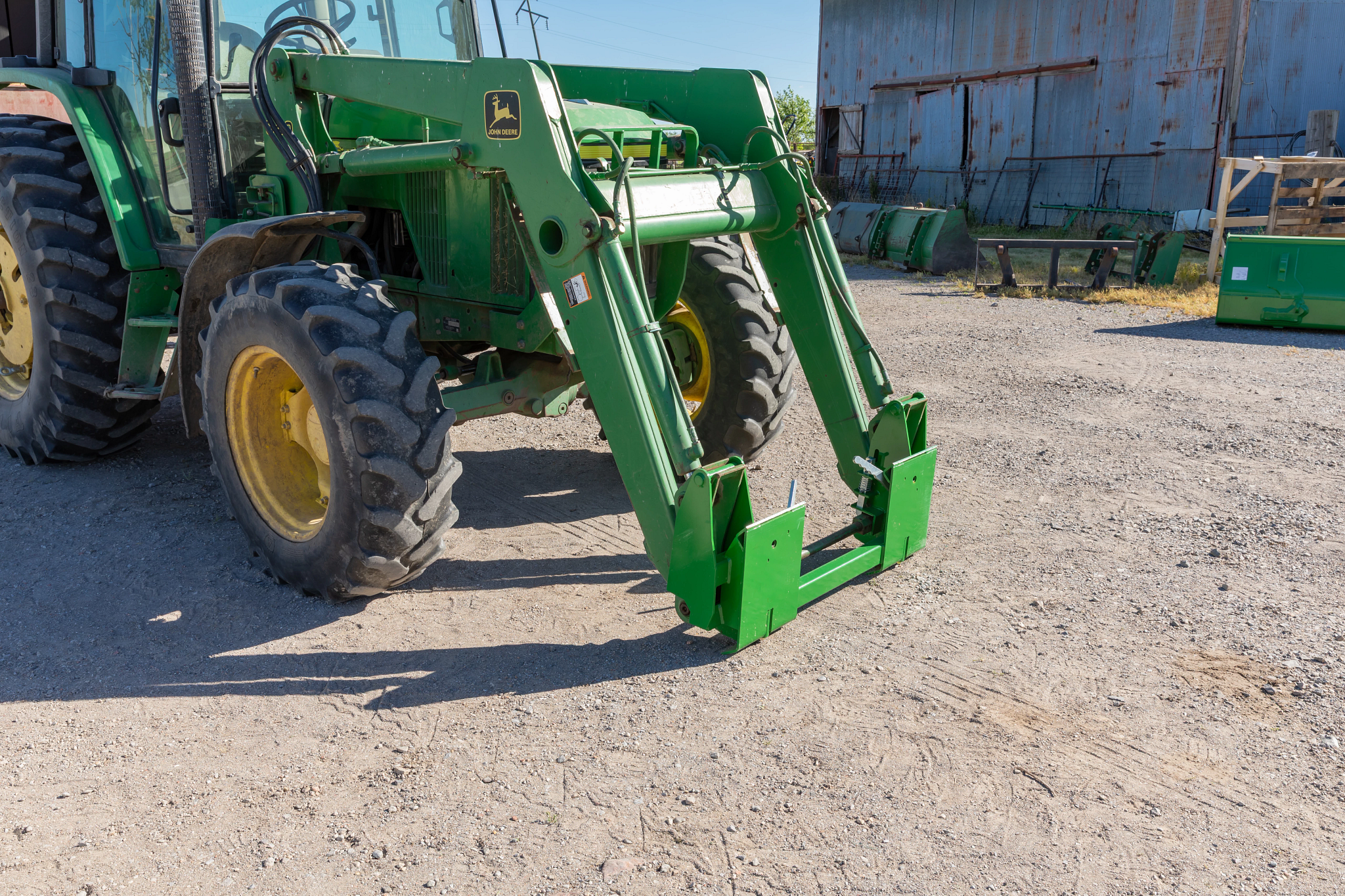

Front right view of a 6 series tractor with attached SA22D loader carrier adapter in a dirt yard

The skid steer carrier adapter allows for the use of skid steer attachments on a Quik-Change 600 Series and 700 Series Loader to increase tractor and attachment compatibility.

Enhanced Load Capacity

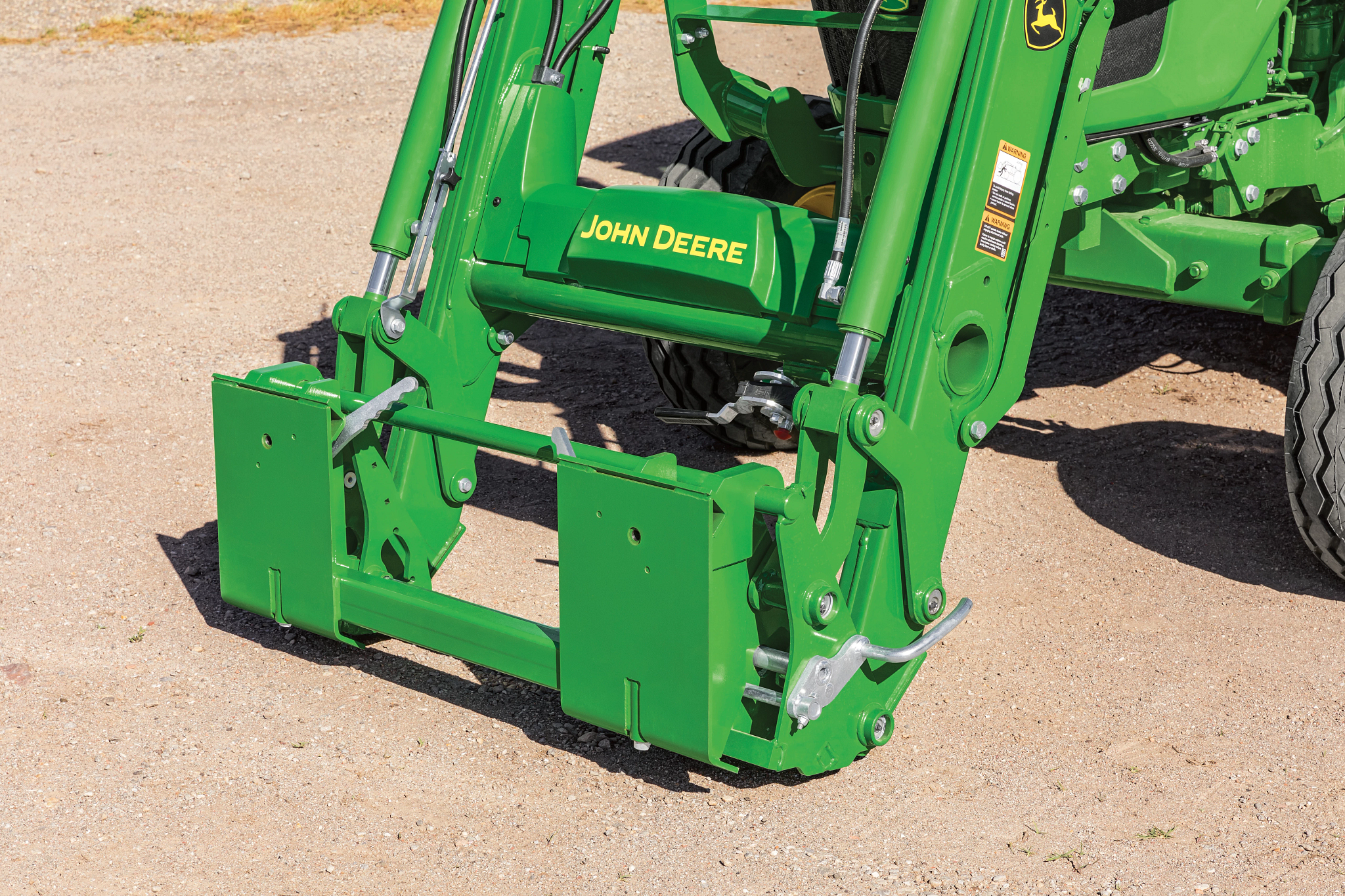

Loader Carrier Adapter in field

The adapter supports a significant capacity of 5000 lb. (2268 kg), allowing it to handle a wide range of heavy-duty tasks. This substantial capacity is ideal for demanding agricultural and construction operations requiring robust equipment.

Specifications

Dimensions

Overall Height58.7 cm
Overall Height23.1 in.
Overall Width125.5 cm
Overall Width49.4 in.
Increased Loader Length12.7 cm
Increased Loader Length5 in.

Weight

Operational Weight86.2 kg
Operational Weight190 lb.

Warranty

Warranty Time Period1 year

Attachment Carrier

Current Series StyleJohn Deere 600 Style Loader

Tractor Compatibility

Maximum Tractor Power108.2 kW
Maximum Tractor Power145 hp

Carrier adapter capacity

Carrier Adapter Capacity2268 kg
Carrier Adapter Capacity5000 lb.
