John Deere SA20F

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / SA20F

Double tap to zoom



Features

More Uptime With Quick-Change Capability

Close-up of a farmer's jeaned legs and gloved hand locking an SA20F skid steer carrier adapter into place on a 3038E compact utility tractor

Hook up the skid steer carrier adapter by lining up the loader’s connecting point to the attachment frame, picking up the attachment, and locking it in place. This process converts your John Deere quick-change attachment carrier to skid steer style carrier.

Robust Carrier Adapter Capacity

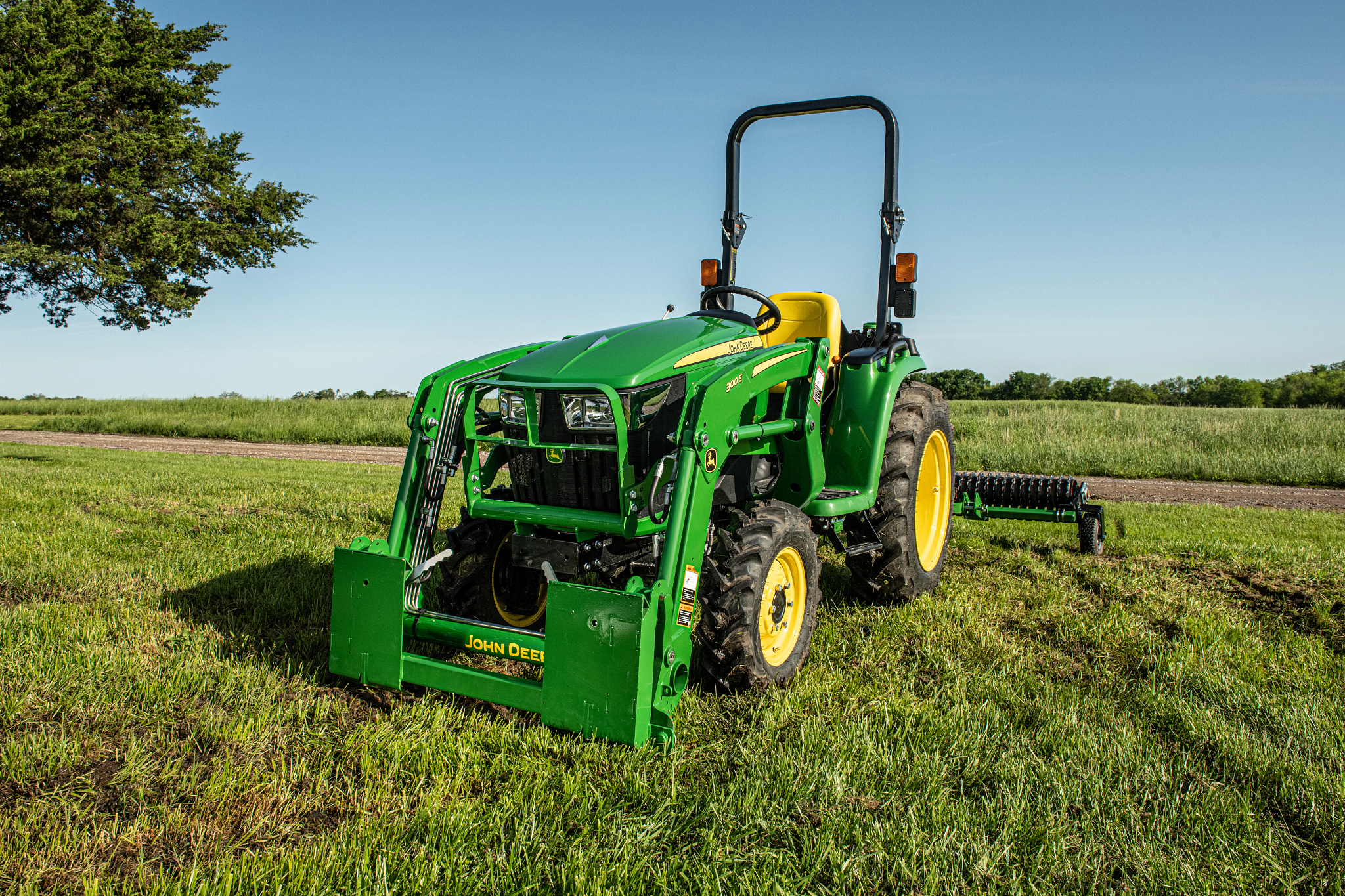

Robust Carrier Adapter Capacity on the SA20F

Designed for strength, the SA20F features a robust carrier adapter with a capacity of 1500 lb. (680 kg). This ensures reliable performance when handling demanding loads, making it a versatile tool for various agricultural and industrial applications.

Expand Equipment Compatibility

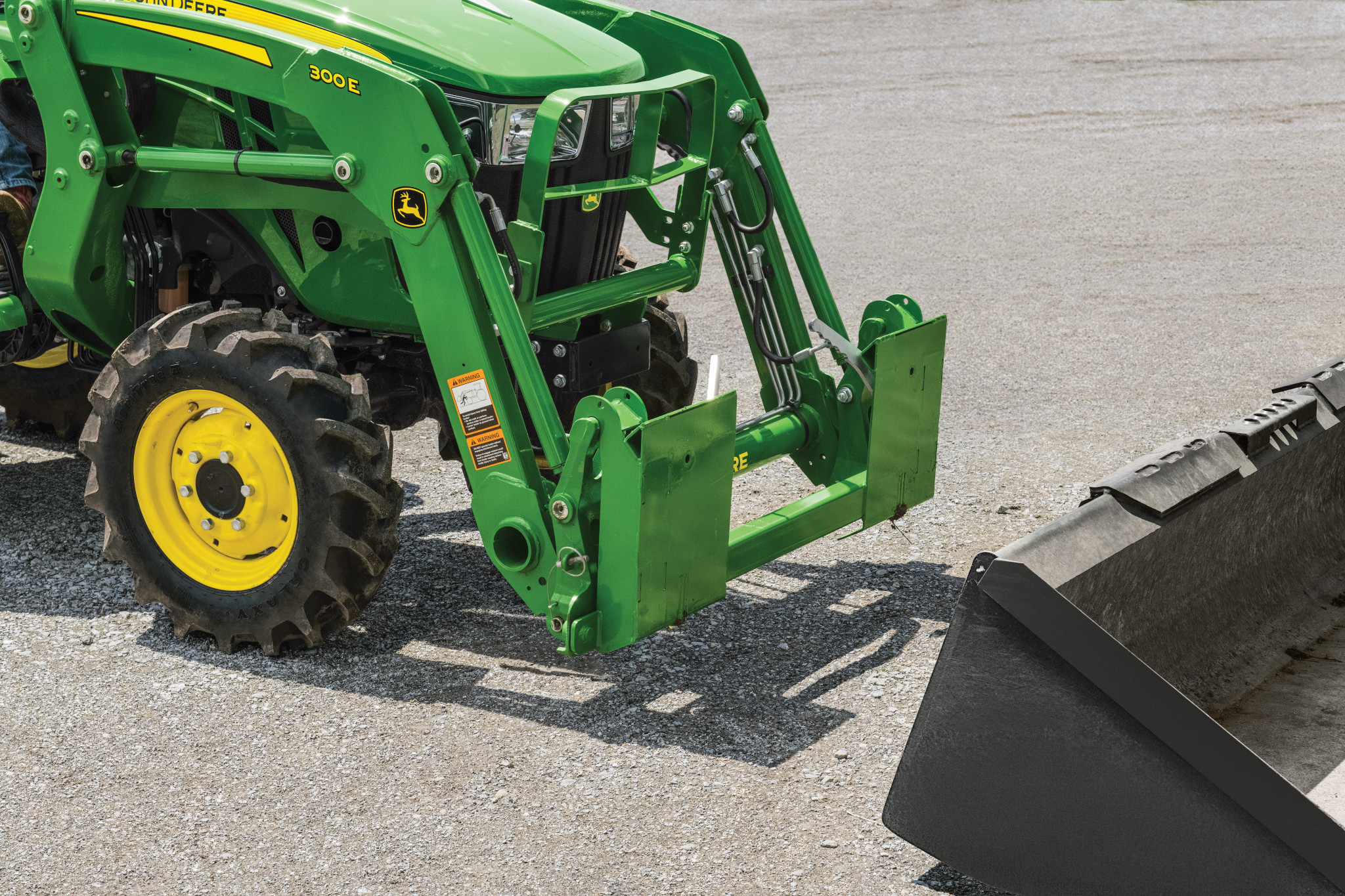

Front loader of a green tractor positioned in front of a detached bucket, showing the carrier adapter and hydraulic connections on a paved surface

The skid steer carrier adapter allows for the use of skid steer attachments on the 100 Series, 200 Series, and 300E Loaders.

Specifications

Dimensions

Overall Height46.2 cm
Overall Height18.2 in.
Overall Width126 cm
Overall Width49.4 in.
Increased Loader Length8.6 cm
Increased Loader Length3.4 in.

Weight

Operational Weight35.4 kg
Operational Weight78 lb.

Warranty

Warranty Time Period1 year

Attachment Carrier

Current Series Style100, 200, 300E

Tractor Compatibility

Maximum Tractor Power23.86 kW
Maximum Tractor Power32 hp

Carrier adapter capacity

Carrier Adapter Capacity680 kg
Carrier Adapter Capacity1500 lb.
