John Deere RT3073R

Double tap to zoom

RT3073R

Tractor Attachments and Implements

Overview:

The Frontier™ RT3073R is an ideal tool for seedbed preparation. It features low maintenance gear-driven durability, reverse tine rotation, adjustable depth, and quick hitch compatibility.

Working Width: 73 in. (185.4 cm)
Duty: Standard
Reverse Rotating Tines
iMatch™ and/or Quick-Hitch Compatible

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

Prevent Damage With a Cold-Formed Transmission Cover

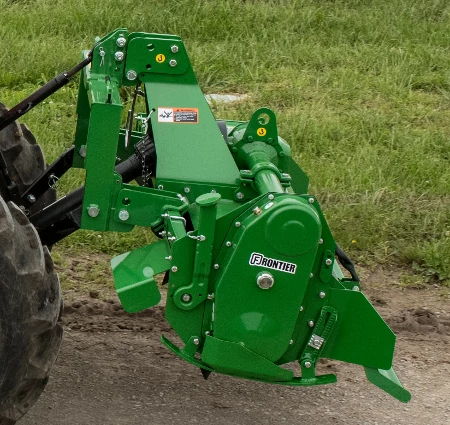

Side left view of a green-painted Frontier rotary tiller hovering over dirt and grass from the back of a tractor. The edges of the tractor's back tires are visible.

The sealed cover ensures the protection of the transmission components, preventing transmission damage due to moisture and mud.

Less Maintenance With Gear Drive Transmission

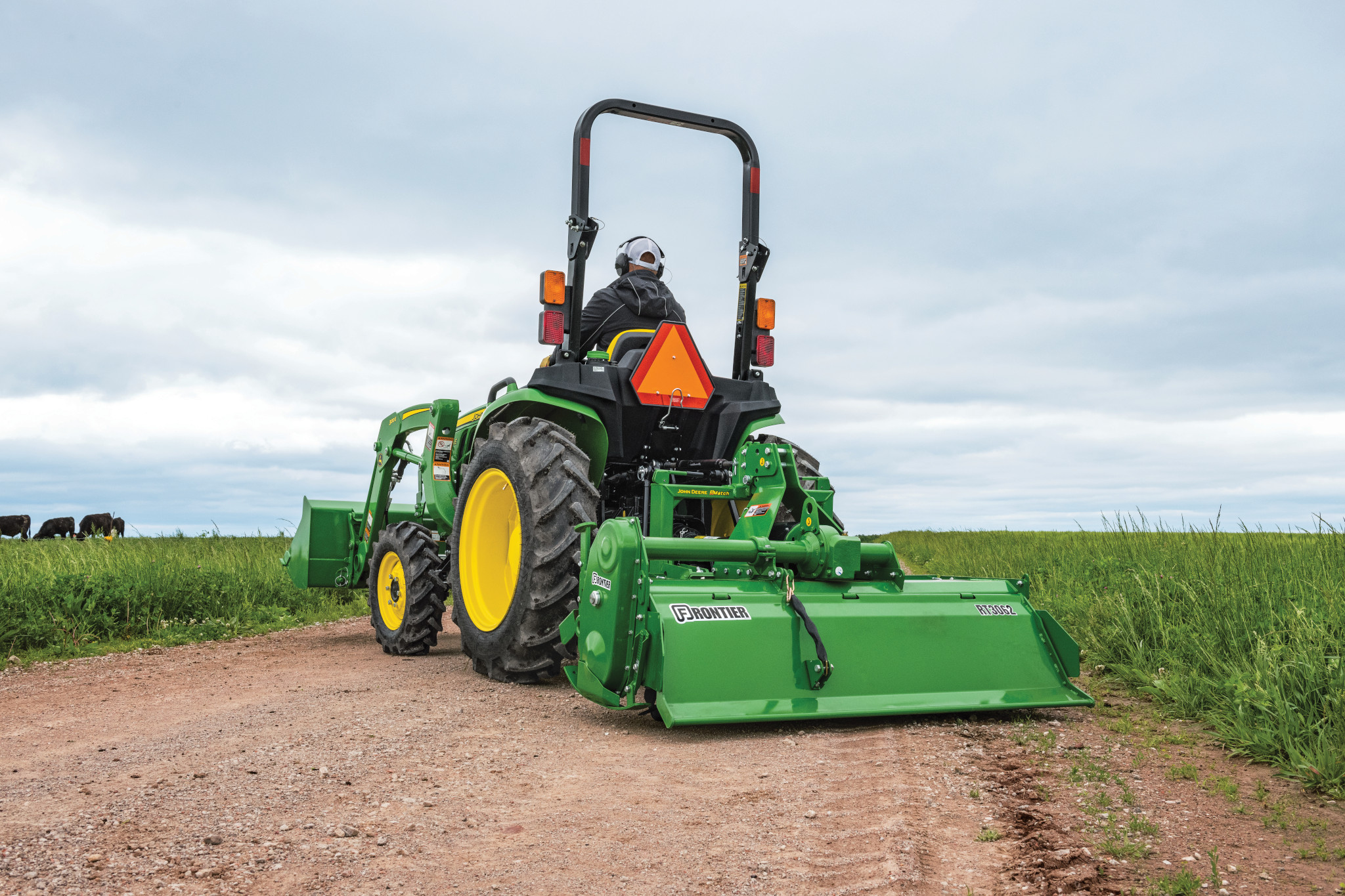

Rear view of a compact tractor driving on a dirt path with a rotary tiller attached, working along a grassy field under a cloudy sky

The hardened and tempered gear drive transmission requires less maintenance than a roller chain drive. Enclosed in an oil bath, gear drive components feature higher wear life, decreasing maintenance costs.

Improve Performance With Reverse Tilling Option

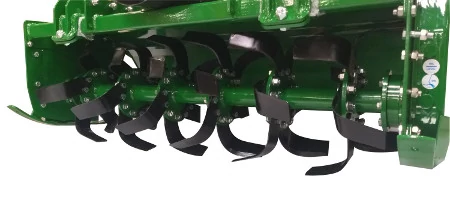

Studio close-up of the underside of a rotary tiller, showing the black tines and green housing

Reverse tilling easily breaks up compacted and rocky soils as well as sod and hard clay. Reverse tines rotation keep the tiller in the ground and prevent the implement from walking on top of the hard soil.

Specifications

Safety And Markings

Markings	Standard
Rear Door Support	Chain
Parking Stand	Standard

Depth Control

Skid Shoes	Four settings - 2.5 to 9.1 cm, 1 to 3.6 in.
Maximum Working Depth	21.6 cm
Maximum Working Depth	8.5 in.
Depth Control Type	Skid shoes

Dimensions

Working Width	2004 mm
Working Width	78.9 in.

Tractor Compatibility

PTO Speed	540 rpm
Minimum Power	30 hp
Minimum Power	22.4 kW
Maximum Power	44.7 kW
Maximum Power	60 hp

Rotor

Blades (Quantity)	6
Flanges (Quantity)	9
Rotor Rotation	Reverse

Gearbox

Gearbox Type

Single speed

Weight

Weight Without Drive Shaft	754 lb.
Weight Without Drive Shaft	342 kg

Drive System

Drive System Type	Gear
Side Drive	Gear

PTO Shaft

Clutch Type	Friction
PTO Shaft Type	Category 4 with slip clutch

Hitch

iMatch™ Compatible (Category 1)	Yes
3-Point Compatible	Category 1 & 2

Blade

Blade Shape

C-shape

Setup Time

Labor Hours

1.5

Warranty

Time Period

1-year whole goods/3-year gearbox

Duty

Duty Type

Standard
