John Deere RT3073
Double tap to zoom
RT3073
Tractor Attachments and Implements
Overview:

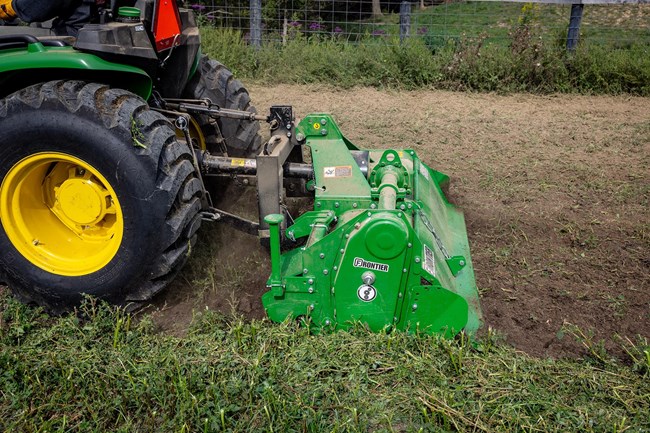

The Frontier™ RT3073 is an ideal tool for seedbed preparation. It features low maintenance gear-driven durability, forward tine rotation, adjustable depth, and quick hitch compatibility.
- Working Width: 73 in. (185.4 cm)
- Duty: Standard
- Forward-Rotating Tines
- iMatch™ and/or Quick-Hitch Compatible
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Increase Efficiency Using Hardened and Tempered C-Shaped Tines
The hardened and tempered C-shaped rotor tines require less horsepower to operate. They are designed to engage the soil at different times for more efficiency.
Prevent Damage With a Cold-Formed Transmission Cover
The sealed cover ensures the protection of the transmission components, preventing transmission damage due to moisture and mud.
Less Maintenance With Gear Drive Transmission
The hardened and tempered gear drive transmission requires less maintenance than a roller chain drive. Enclosed in an oil bath, gear drive components feature higher wear life, decreasing maintenance costs.
Specifications
Safety And Markings
| Markings | Standard |
| Rear Door Support | Chain |
| Parking Stand | Standard |
Depth Control
| Skid Shoes | Four settings - 2.5 to 9.1 cm, 1 to 3.6 in. |
| Maximum Working Depth | 21.6 cm |
| Maximum Working Depth | 8.5 in. |
| Depth Control Type | Skid shoes |
Dimensions
| Working Width | 2004 mm |
| Working Width | 78.9 in. |
Tractor Compatibility
| PTO Speed | 540 rpm |
| Minimum Power | 30 hp |
| Minimum Power | 22.4 kW |
| Maximum Power | 44.7 kW |
| Maximum Power | 60 hp |
Rotor
| Blades (Quantity) | 6 |
| Flanges (Quantity) | 9 |
| Rotor Rotation | Forward |
Gearbox
| Gearbox Type | Single speed |
Weight
| Weight Without Drive Shaft | 732 lb. |
| Weight Without Drive Shaft | 332 kg |
Drive System
| Drive System Type | Gear |
| Side Drive | Gear |
PTO Shaft
| Clutch Type | Friction |
| PTO Shaft Type | Category 4 with slip clutch |
Hitch
| iMatch™ Compatible (Category 1) | Yes |
| 3-Point Compatible | Category 1 & 2 |
Blade
| Blade Shape | C-shape |
Setup Time
| Labor Hours | 1.5 |
Warranty
| Time Period | 1-year whole goods/3-year gearbox |
Duty
| Duty Type | Standard |
