John Deere RT2283
Double tap to zoom
RT2283
Tractor Attachments and Implements
Overview:

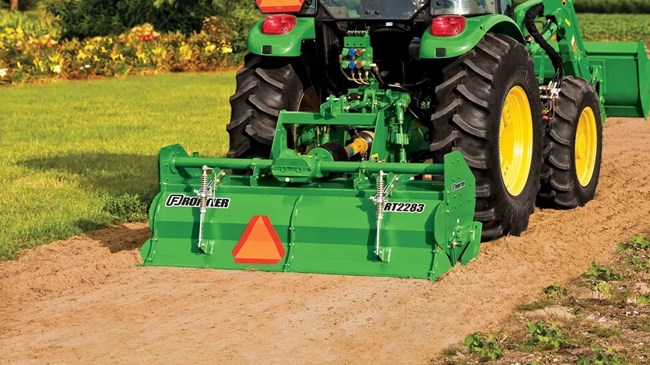

The Frontier™ RT2283 Rotary Tiller is a medium-duty tiller ready to prepare ground for seed, sod, or plants.
- Working Width: 83 in. (210.8 cm)
- Duty: Medium
- Skid Shoes Control Depth
- Category 2 Quick-Hitch Compatible
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Cage Roller Adjustment for Firming Action Is Easy
The hand crank makes adjusting the depth of the roller easy on the RT22 and RT23 Series Rotary Tillers. Use a lower setting for more firming action, ideal for controlling wind erosion. The RT22 and RT23 Series have an optional hydraulic cage roller adjustment kit available to allow for depth adjustments without leaving the tractor seat.
Heavy-Duty Wear Shields for Added Gearcase Protection
The gearcase is protected from abrasion and premature wear by the heavy-duty wear shields.
Rotor Is Helical-Shaped for Higher Efficiency
The helical-shaped rotor decreases horsepower required to drive units. They are designed so they enter the field at different times for more efficiency.
Specifications
Safety And Markings
| Markings | Standard |
| Rear Door Support | Chain |
| Parking Stand | Standard |
Tractor Compatibility
| PTO Speed | 540 rpm |
| Maximum PTO Power | 90 hp |
| Maximum PTO Power | 67 kW |
| Minimum PTO Power | 34 kW |
| Minimum PTO Power | 45 hp |
Depth Control
| Maximum Working Depth | 27 cm |
| Maximum Working Depth | 10.6 in. |
| Depth Control Type | Skid shoes |
Dimensions
| Outside To Outside Width | 88 in. |
| Outside To Outside Width | 2234 mm |
| Working Width | 2108 mm |
| Working Width | 83 in. |
Weight
| Operating With Skid Shoes | 1719 lb. |
| Operating With Skid Shoes | 779.7 kg |
Gearbox
| Gearbox Type | Multi-stage |
Hitch
| Quick Coupler (Category 2) | Yes |
| 3-Point Compatible | Category 2 |
Blade
| Blade Shape | L-shape |
Rotor
| Blades (Quantity) | 6 |
| Flanges (Quantity) | 8 |
Drive System
| Drive System Type | Gear |
Warranty
| Time Period | 1 year |
PTO Shaft
| Clutch Type | Friction |
Duty
| Duty Type | Medium |
