John Deere RT1273
Double tap to zoom

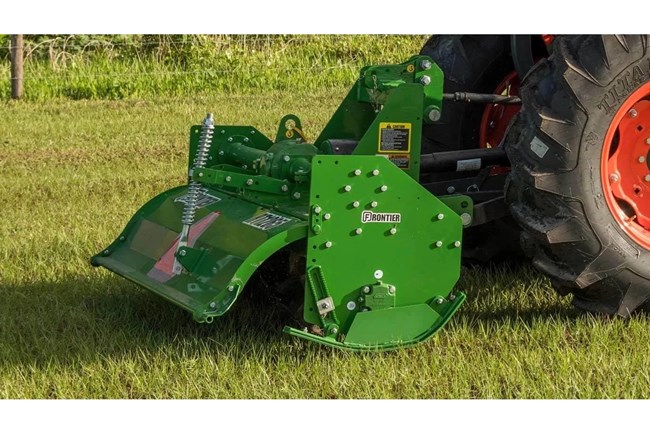

RT1273
Tractor Attachments and Implements
Overview:
The RT1273 - 73 In. Medium Duty Rotary Tiller offers enhanced efficiency and precision in tilling with its helical-shaped rotor that reduces horsepower requirements, adjustable skid shoes for depth control, and compatibility with a wide range of tractor series, making it an ideal choice for professional and effective soil management.
- Rotor is Helical Shaped for Higher Efficiency
- Skid Shoes Control Depth
- Medium-Duty Gearbox System
- Six L-Shaped Blades per Flange
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Helical Rotor for Efficiency
The helical-shaped rotor on the RT Series Rotary Tillers decreases horsepower required to drive units. They are designed so they enter the field at different times for more efficiency.
Skid Shoes Control Depth
The working depth can be adjusted by the height of the skids, which is easily done with the adjustment bracket on the RT Series Rotary Tillers.
Adjustable Offsets Allow Central or Side Position
Adjustable offset allows the tiller to be used in a central or side position with respect to the tractor’s wheel track allowing you to till closer to existing plants and into deep corners. The chain-supported tailgate is self-leveling.
Specifications
Safety And Markings
| Markings | Standard |
| Rear Door Support | Chain |
| Parking Stand | Standard |
Tractor Compatibility
| PTO Speed | 540 rpm |
| Maximum PTO Power | 75 hp |
| Maximum PTO Power | 56 kW |
| Minimum PTO Power | 26 kW |
| Minimum PTO Power | 35 hp |
Depth Control
| Maximum Working Depth | 22 cm |
| Maximum Working Depth | 8.7 in. |
| Depth Control Type | Skid shoes |
Dimensions
| Outside To Outside Width | 77 in. |
| Outside To Outside Width | 1956 mm |
| Working Width | 1854 mm |
| Working Width | 73 in. |
Weight
| Operating With Skid Shoes | 968 lb. |
| Operating With Skid Shoes | 439 kg |
Gearbox
| Gearbox Type | Single speed |
Hitch
| Quick Coupler (Category 2) | Yes |
| 3-Point Compatible | Category 2 |
Blade
| Blade Shape | L-shape |
Rotor
| Blades (Quantity) | 6 |
| Flanges (Quantity) | 8 |
Setup Time
| Labor Hours | 0.75 |
Drive System
| Drive System Type | Gear |
Warranty
| Time Period | 1 year |
PTO Shaft
| Clutch Type | Friction |
Duty
| Duty Type | Medium |
