John Deere RB2309

Double tap to zoom

RB2309

Tractor Attachments and Implements

Overview:

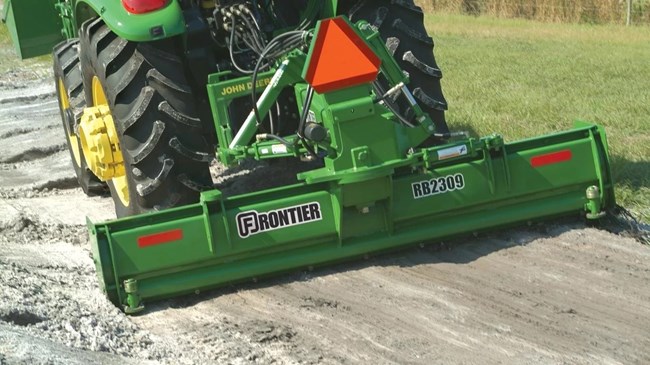

The Frontier™ RB2309 - 9 Ft. Heavy Duty Rear Blade offers durability and versatility when grading, leveling, scraping, and backfilling dirt, gravel, or snow making it an essential tool for efficient landscaping, road maintenance, and farm work.

Width: 108 in. (274.3 cm)
Heavy Duty
Optional End Plates
Optional Skid Shoes

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

Quickly and Efficiently Attach to Hitch

Front view of an RB2308 rear blade grading grassy dirt on the back of a 5100R tractor

The Frontier™ RB23 and RB24 Series Rear Blades are Quik-Coupler compatible with Category 2 hitches, allowing a quick, efficient hookup.

Manually Adjustable Angle, Tilt, and Offset

Rear view of adjustable turntable on Frontier rear blade hooked up to a tractor in a field

The turntable on the Frontier™ RB22, RB23 and RB24 Series Rear Blades allows a complete 360-degree turning radius for leveling perfection. Manually adjusting the offset, angle, and tilt allows the blade to adapt to a variety of conditions and provides added protection and leveling perfection.

Frame's Tubular Steel Is Crafted for Tough Jobs

3038E Tractor with rear blade and front loader on dirt drive

The tough, tubular steel frame on Frontier™ RB Series Rear Blades is perfect for grading and its full-radius moldboard more than handles landscaping needs.

Specifications

Weight

Shipping Per Unit	1297 lb.
Shipping Per Unit	588.3 kg
Machine	562.5 kg
Machine	1240 lb.

Parking Stand

Standard With Machine

Standard

Dimensions

Moldboard Height	48.3 cm
Moldboard Height	19 in.
Moldboard Length	108 in.
Moldboard Length	274.3 cm
Width In Working Position	9 ft
Width In Working Position	2.7 m
Moldboard Thickness	0.3125 in.
Moldboard Thickness	0.8 cm

Tractor Requirements

Hydraulic Offset Kit (Hoses And Fittings Included)	Up to three hydraulic remotes required
PTO	2WD: 89.5; 4WD: 82 kW
PTO	2WD: 120; 4WD: 110 hp

Angle, Tilt, Offset, Pivot

Tilt Positions/Degrees	Three positions, up and down, up to 23 degree (angle)
Pivot Angle Degrees	360 degree (angle)
Angle Reverse, Number Of Positions	Three positions each side, up to 45 degree (angle)
Offset Position Left or Right	0-19 in.
Offset Position Left or Right	0-48.26 cm
Angle Forward, Number Of Positions	Three positions each side, up to 45 degree (angle)

Hitch

Type	Category 2
Quick Hitch Compatibility	ASAE Category 2 quick coupler

Duty

Type

Heavy

Reversible Cutting Edge

Height	15.2 cm
Height	6 in.
Thickness	0.5 in.
Thickness	1.3 cm

Warranty

Time Period

1 year
