John Deere RB2284

Double tap to zoom

RB2284

Tractor Attachments and Implements

Overview:

The Frontier™ RB2284 Rear Blade offers versatility and durability with its full-radius moldboard and manually adjustable angle, tilt, and offset, making it ideal for efficient grading and leveling across diverse terrain conditions while ensuring prolonged use with its reversible cutting edge.

Width: 84 in. (213.4 cm)
Duty: Medium Plus
Optional End Plates Hold Extra Material
Optional Skid Shoes Increase Cutting Edge Life

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

Longer Wear Life With Reversible Cutting Edge

Close-up of a rear blade's black reversible cutting edge on green blade

All Frontier™ RB Series Rear Blade cutting edges are reversible, featuring bevels on both edges to give the blade twice the work life.

Manually Adjustable Angle, Tilt, and Offset

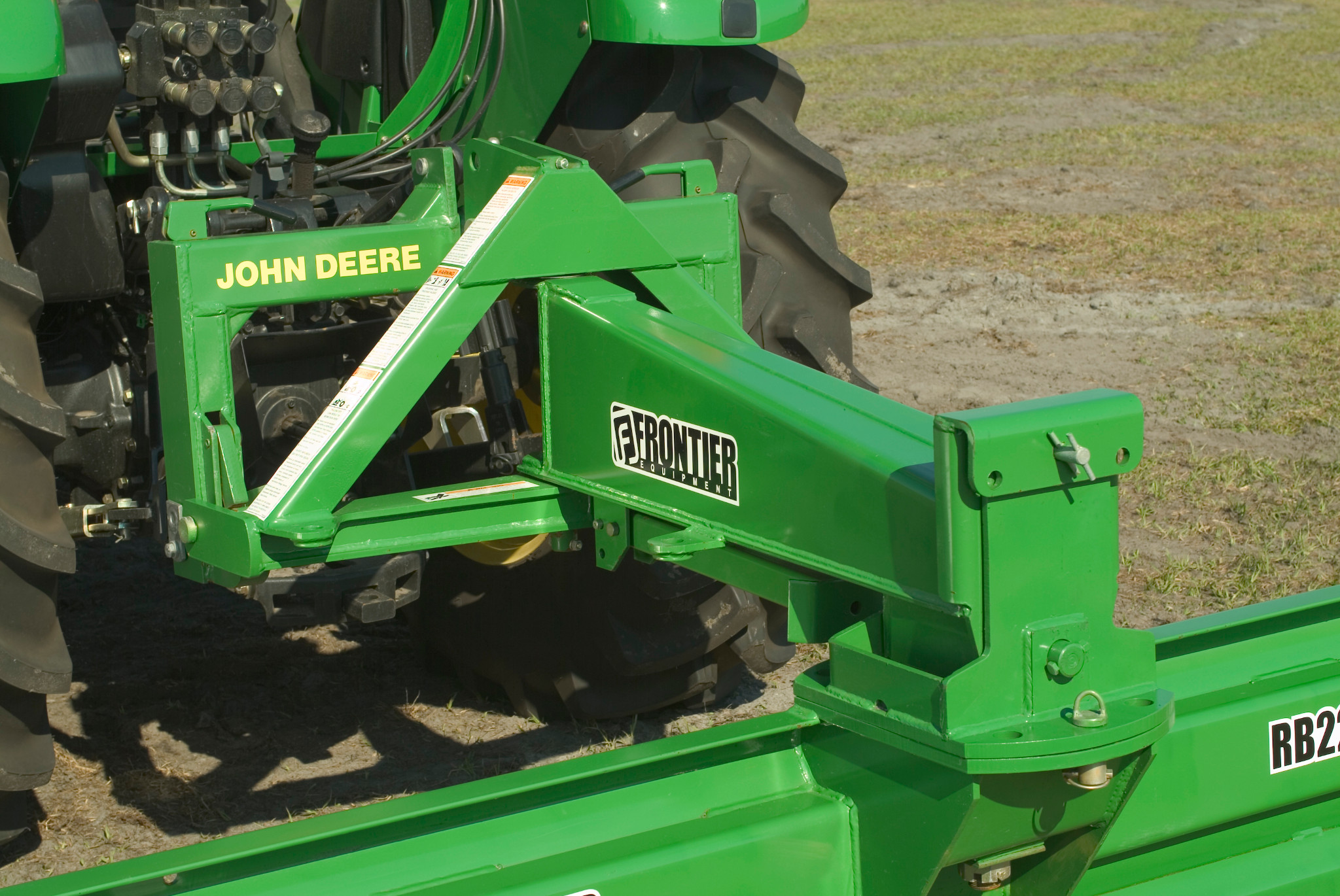

Rear view of adjustable turntable on Frontier rear blade hooked up to a tractor in a field

The turntable on the Frontier™ RB22, RB23 and RB24 Series Rear Blades allows a complete 360-degree turning radius for leveling perfection. Manually adjusting the offset, angle, and tilt allows the blade to adapt to a variety of conditions and provides added protection and leveling perfection.

Frame's Tubular Steel Is Crafted for Tough Jobs

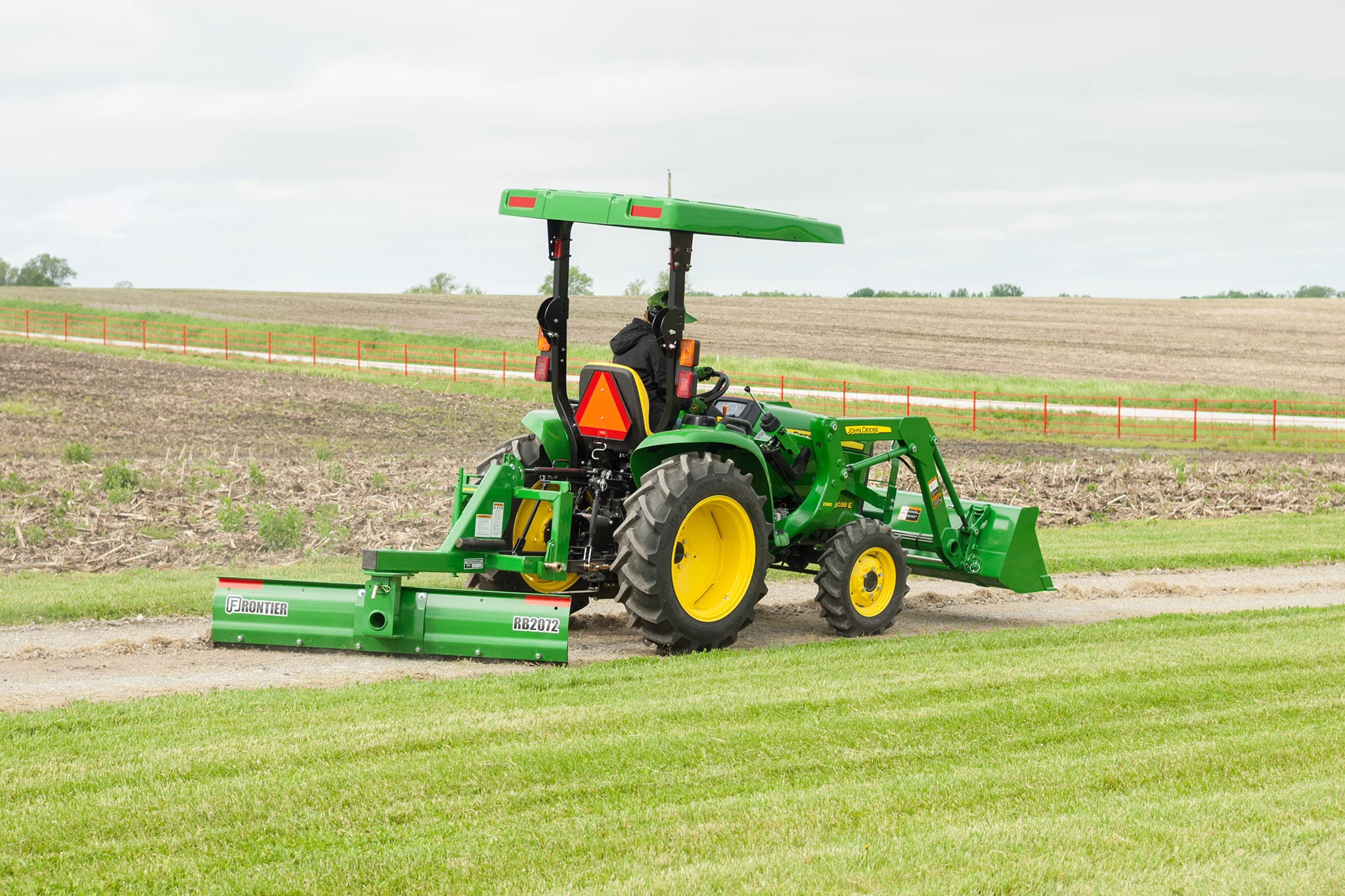

3038E Tractor with rear blade and front loader on dirt drive

The tough, tubular steel frame on Frontier™ RB Series Rear Blades is perfect for grading and its full-radius moldboard more than handles landscaping needs.

Specifications

Weight

Shipping Per Unit	812 lb.
Shipping Per Unit	360.6 kg
Machine	334.8 kg
Machine	755 lb.

Parking Stand

Standard With Machine

Yes

Dimensions

Moldboard Height	48.3 cm
Moldboard Height	19 in.
Moldboard Length	84 in.
Moldboard Length	213.4 cm
Width In Working Position	7 ft
Width In Working Position	2.1 m
Moldboard Thickness	0.25 in.
Moldboard Thickness	0.6 cm

Tractor Requirements

Hydraulic Offset Kit (Hoses And Fittings Included)	Optional hydraulic offset - up to one hydraulic remotes required
PTO	2WD: 59.7; 4WD: 52.2 kW
PTO	2WD: 80; 4WD: 70 hp

Angle, Tilt, Offset, Pivot

Tilt Positions/Degrees	Three positions, up or down up to 23 degree (angle)
Pivot Angle Degrees	360 degree (angle)
Angle Reverse, Number Of Positions	Three positions, each side up to 45 degree (angle)
Offset Position Left or Right	9, 18 in.
Offset Position Left or Right	22.9, 45.7 cm
Angle Forward, Number Of Positions	Three positions, each side up to 45 degree (angle)

Hitch

Type	Category 2
Quick Hitch Compatibility	ASAE Category 2 quick coupler compatible

Duty

Type	Medium plus

Reversible Cutting Edge

Height	15.2 cm
Height	6 in.
Thickness	0.5 in.
Thickness	1.3 cm

Warranty

Time Period

1 year
