John Deere RB2196
Double tap to zoom
RB2196
Tractor Attachments and Implements
Overview:

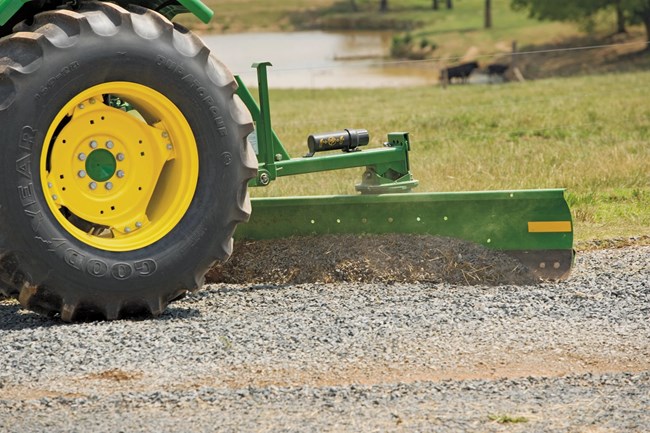

The Frontier™ RB2196 rear blade makes quick work of grading, ditching, and snow removal. Tough steel frame design and adjustable angles deliver reliable performance for operations needing durable, versatile ground management.
- Width: 96 in. (243.8 cm)
- Duty: Medium
- Angle Adjustment
- Reversible Cutting Edge
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Longer Wear Life With Reversible Cutting Edge
All Frontier™ RB Series Rear Blade cutting edges are reversible, featuring bevels on both edges to give the blade twice the work life.
Hitch Attaches Quickly and Efficiently
The Frontier™ RB20 and RB21 Series Rear Blades are all iMatch™ quick-hitch compatible and compatible with Category 1 hitches. Both systems provide a quick, efficient hookup.
Frame's Tubular Steel Is Crafted for Tough Jobs
The tough, tubular steel frame on Frontier™ RB Series Rear Blades is perfect for grading and its full-radius moldboard more than handles landscaping needs.
Specifications
Weight
| Shipping Per Unit | 510 lb. |
| Shipping Per Unit | 231.3 kg |
| Machine | 215.9 kg |
| Machine | 476 lb. |
Parking Stand
| Standard With Machine | Yes |
Dimensions
| Moldboard Height | 43.2 cm |
| Moldboard Height | 17 in. |
| Moldboard Length | 96 in. |
| Moldboard Length | 243.8 cm |
| Width In Working Position | 8 ft |
| Width In Working Position | 2.4 m |
| Moldboard Thickness | 0.25 in. |
| Moldboard Thickness | 0.6 cm |
Tractor Requirements
| PTO | 2WD: 48.5; 4WD: 44.7 kW |
| PTO | 2WD: 65; 4WD: 60 hp |
Angle, Tilt, Offset, Pivot
| Tilt Positions/Degrees | Three positions, up or down up to 22 degree (angle) |
| Pivot Angle Degrees | 360 degree (angle) |
| Angle Reverse, Number Of Positions | Three positions, each side up to 53 degree (angle) |
| Offset Position Left or Right | 6, 12 in. |
| Offset Position Left or Right | 15.2, 30.5 cm |
| Angle Forward, Number Of Positions | Three positions, each side up to 53 degree (angle) |
Hitch
| Type | Category 1 |
| Quick Hitch Compatibility | iMatch compatible (quick-attach system) |
Duty
| Type | Medium |
Reversible Cutting Edge
| Height | 15.2 cm |
| Height | 6 in. |
| Thickness | 0.5 in. |
| Thickness | 1.3 cm |
Warranty
| Time Period | 1 year |
