John Deere RB2160H

Double tap to zoom

RB2160H

Tractor Attachments and Implements

Overview:

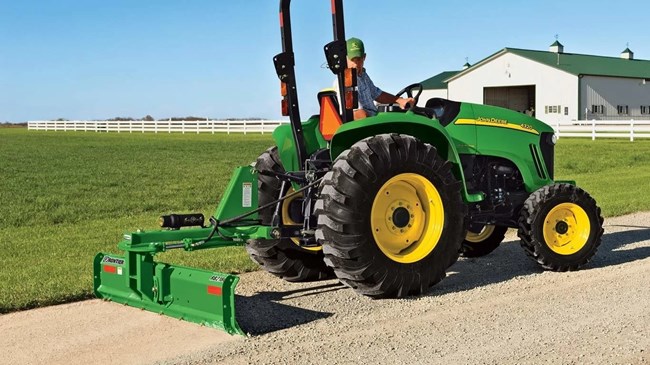

The Frontier™ RB2160H - 5 ft Medium Duty Hydraulic Rear Blade offers exceptional versatility and durability for efficient grading, leveling, and backfilling tasks, making it an essential attachment for enhancing productivity on diverse terrains.

Reversible Cutting Edge for Longer Wear Life
Hydraulic Cylinder Changes Blade Direction While on the Move
Move Hitch Pin to Allow Blade Radius to Turn 180 Degrees
Optional End Plates and Skid Shoes

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

Move Hitch Pin to Allow Blade Radius to Turn 180 Degrees

Close-up of the green hitch, pin, and implements on a rear blade necessary for 180-degree blade radius

The hitch pin connecting the cylinder to the blade can be removed and moved to the opposite side, allowing the blade to turn 180 degrees. This feature is great when backfilling.

Hydraulic Cylinder Changes Blade Direction While on the Move

Hydraulic cylinder on the side of the crossbar of the RB21 Hydraulic Rear Blade

The hydraulic cylinder on the Frontier™ RB21H Series Rear Blades makes it possible to adjust the angle of the blade in either direction while on the go.

Longer Wear Life With Reversible Cutting Edge

Close-up of a rear blade's black reversible cutting edge on green blade

All Frontier™ RB Series Rear Blade cutting edges are reversible, featuring bevels on both edges to give the blade twice the work life.

Specifications

Weight

Shipping Per Unit	426 lb.
Shipping Per Unit	193.2 kg
Machine	171.9 kg
Machine	379 lb.

Parking Stand

Standard With Machine

Yes

Dimensions

Moldboard Height	38.1 cm
Moldboard Height	15 in.
Moldboard Length	60 in.
Moldboard Length	152.4 cm
Width In Working Position	5 ft
Width In Working Position	1.5 m
Moldboard Thickness	0.25 in.
Moldboard Thickness	0.6 cm

Tractor Requirements

PTO	2WD: 37.3; 4WD: 33.6 kW
PTO	2WD: 50; 4WD: 45 hp

Angle, Tilt, Offset, Pivot

Tilt Positions/Degrees	Up or down, 0 to 20 degree (angle)
Pivot Angle Degrees	360 degree (angle)
Angle Reverse, Number Of Positions	Hydraulic, up to 40 degree (angle); Manual, seven positions, up to 45 degree (angle)
Offset Position Left or Right	6, 12 in.
Offset Position Left or Right	15.2, 30.5 cm
Angle Forward, Number Of Positions	Hydraulic, up to 40 degree (angle); Manual, seven positions, up to 45 degree (angle)

Setup Time

Labor Hours

2 hr

Hitch

Type	Category 1
Quick Hitch Compatibility	iMatch Compatible

Duty

Type

Standard

Reversible Cutting Edge

Height	15.2 cm
Height	6 in.
Thickness	0.5 in.
Thickness	1.3 cm

Warranty

Time Period

1 year
