John Deere PS1001

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / PS1001

Double tap to zoom



Features

Corrosion Resistance

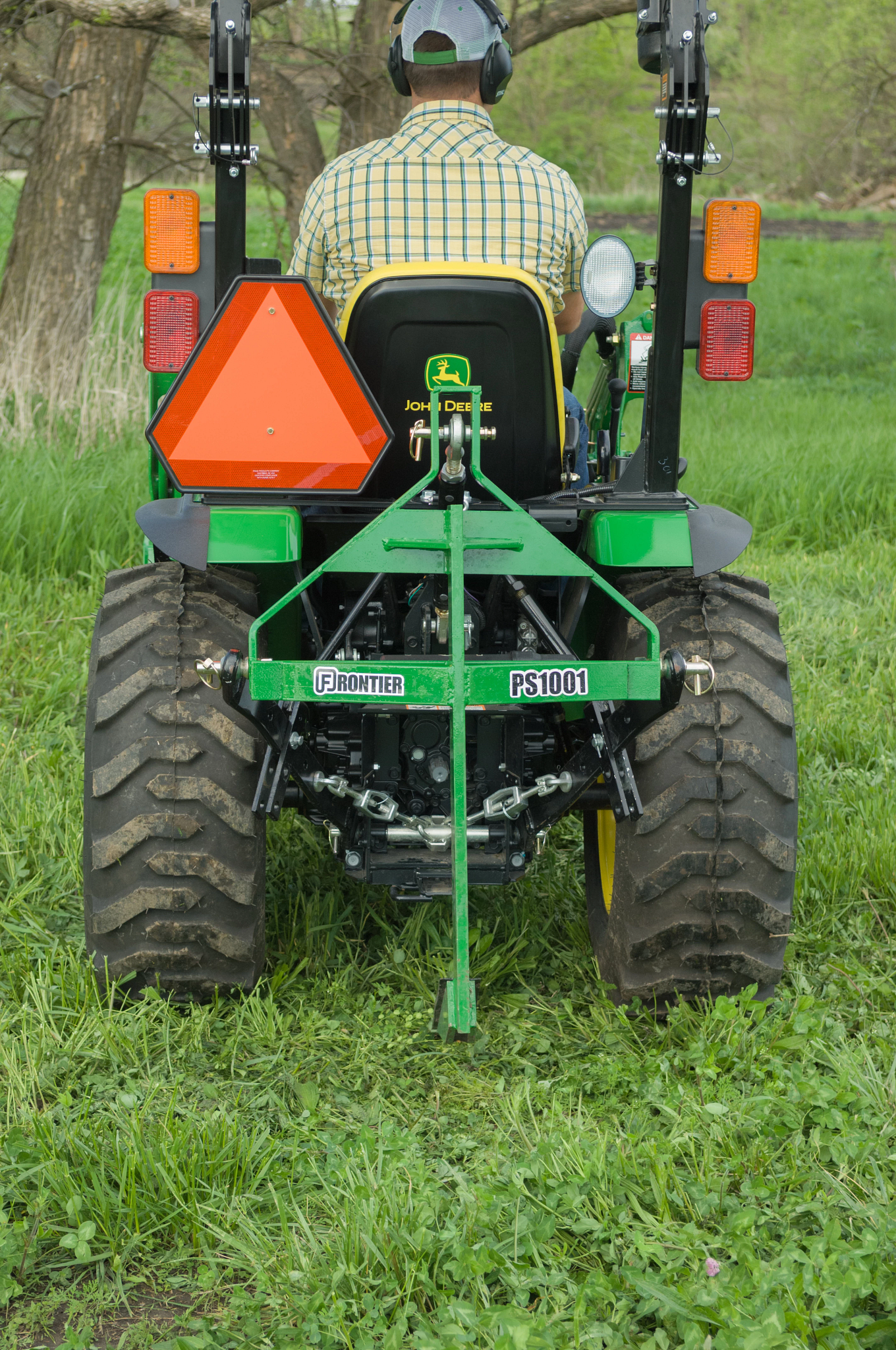

Rear view of a lawn tractor traveling over grass with the PS1001 Integral Subsoiler attached

The subsoiler features a corrosion-resistant, powder-coat paint that increases its durability. This protective coating helps prevent wear and tear, ensuring a longer lifespan and maintaining the equipment's appearance over time.

Hitch Compatibility

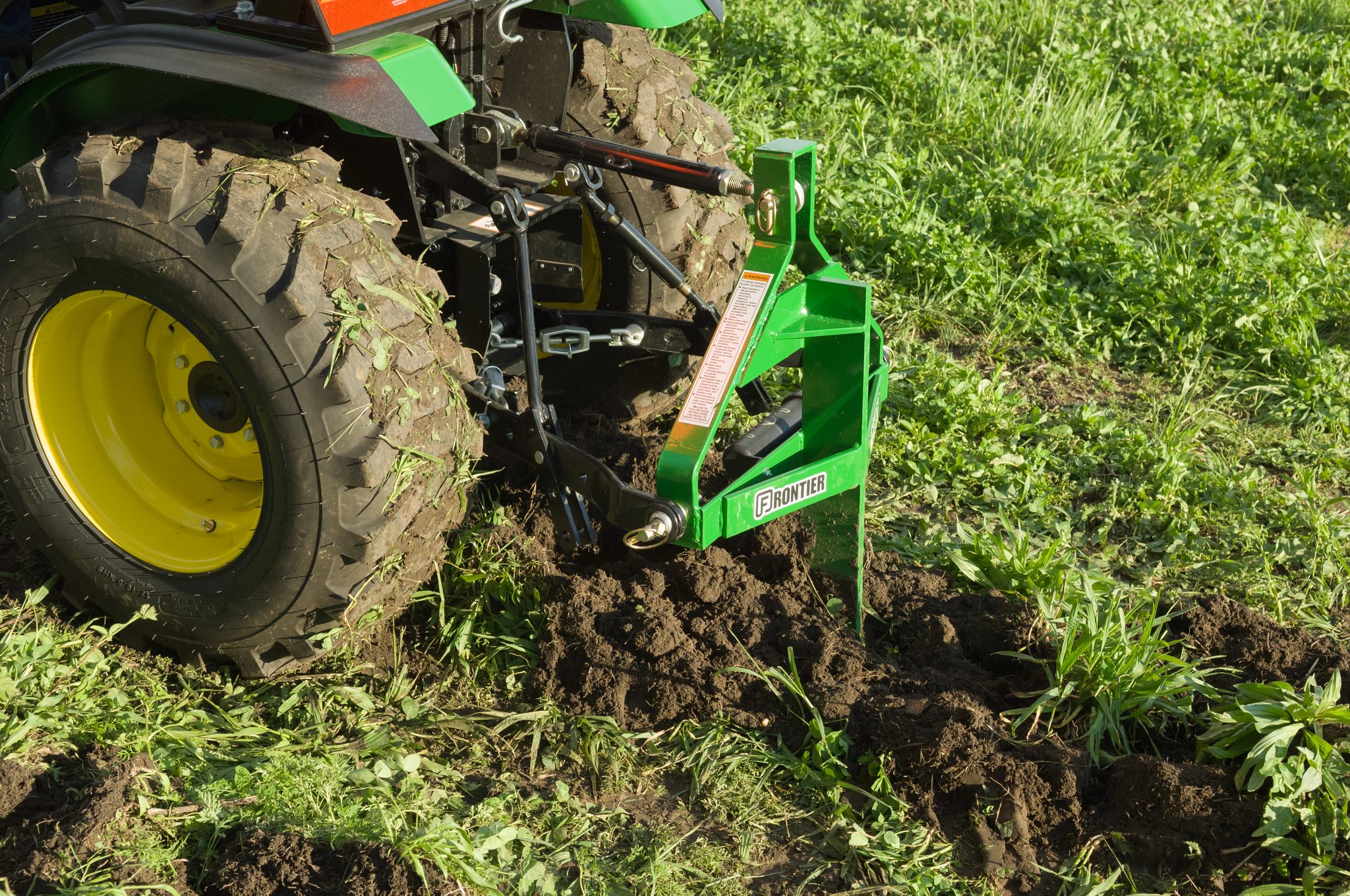

Rear left view of the back of a 2025R Compact Utility Tractor pulling a PS1001 Subsoiler through grassy soil

The PS1001 Integral Subsoiler is designed to fit tractors with Category 1 3-point hitches, ensuring a quick and easy connection for users. This compatibility allows operators to efficiently connect and disconnect the subsoiler, enhancing operational convenience.

Reversible Shank Point

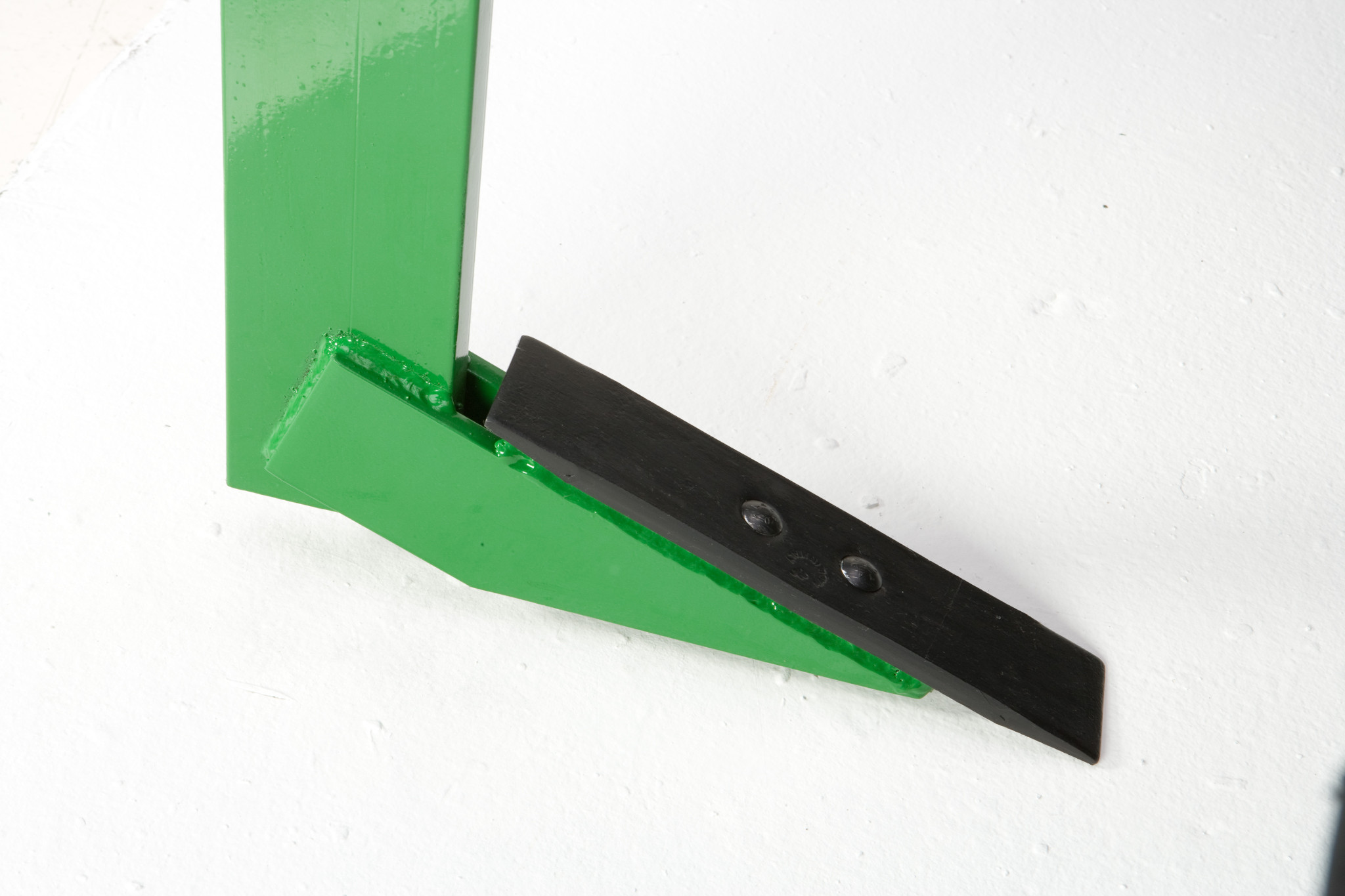

Close-up of a green shank with a black replaceable point bolted to the tip, resting on a white surface

Equipped with a reversible and replaceable sloped point, the subsoiler's wear life is greatly extended. This feature not only enhances the tool's dependability but also helps in maintaining consistent performance by reducing downtime for replacements.

Specifications

Warranty

Time Period1 year

Dimensions

Transport Height124 cm
Transport Height49 in.
Transport Width83 cm
Transport Width32.5 in.
Working Width/DepthWorking depth: up to 61 cm, 24 in.
Transport Length16 in.
Transport Length41 cm

Tractor Requirements

Horsepower19-34 kW
Horsepower25-45 hp

Weight

Implement44 kg
Implement96 lb.
Shipping136 lb.
Shipping62 kg

Moldboards/Tines/Shanks

Quantity1

Hitch

iMatch™ CompatibleNo
CategoryCategory 1

Packaged

QuantityTwo per pallet

Setup Time

Labor Hours0.5 hr
