John Deere PR1160

Double tap to zoom

PR1160

Tractor Attachments and Implements

Overview:

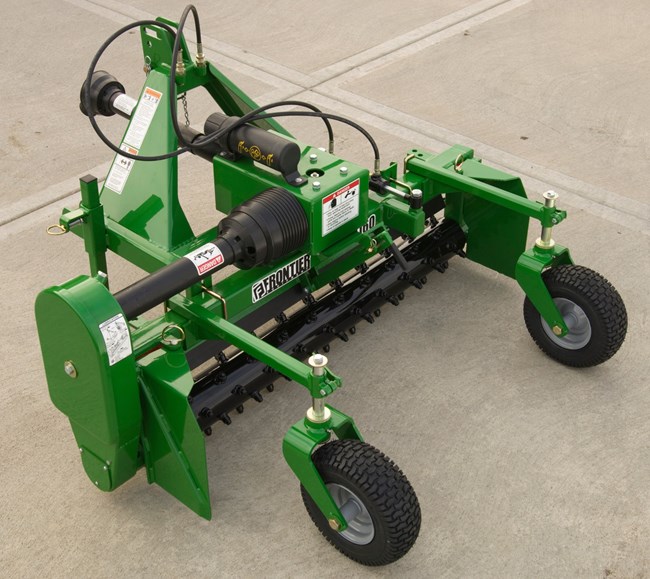

The Frontier™ PR1160 60 in. Power Rake offers exceptional durability and efficiency with its carbide teeth that retain moisture in the soil and its adjustable angle and depth controls, making it an ideal tool for creating smooth and even surfaces with ease and precision.

Angle Adjustment
Carbide Teeth Retain Moisture With Fracture Pattern
Adjustable End Plate
Roll-Back Barrier Provides Adjustable Pulverizing

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

Angle Adjustment

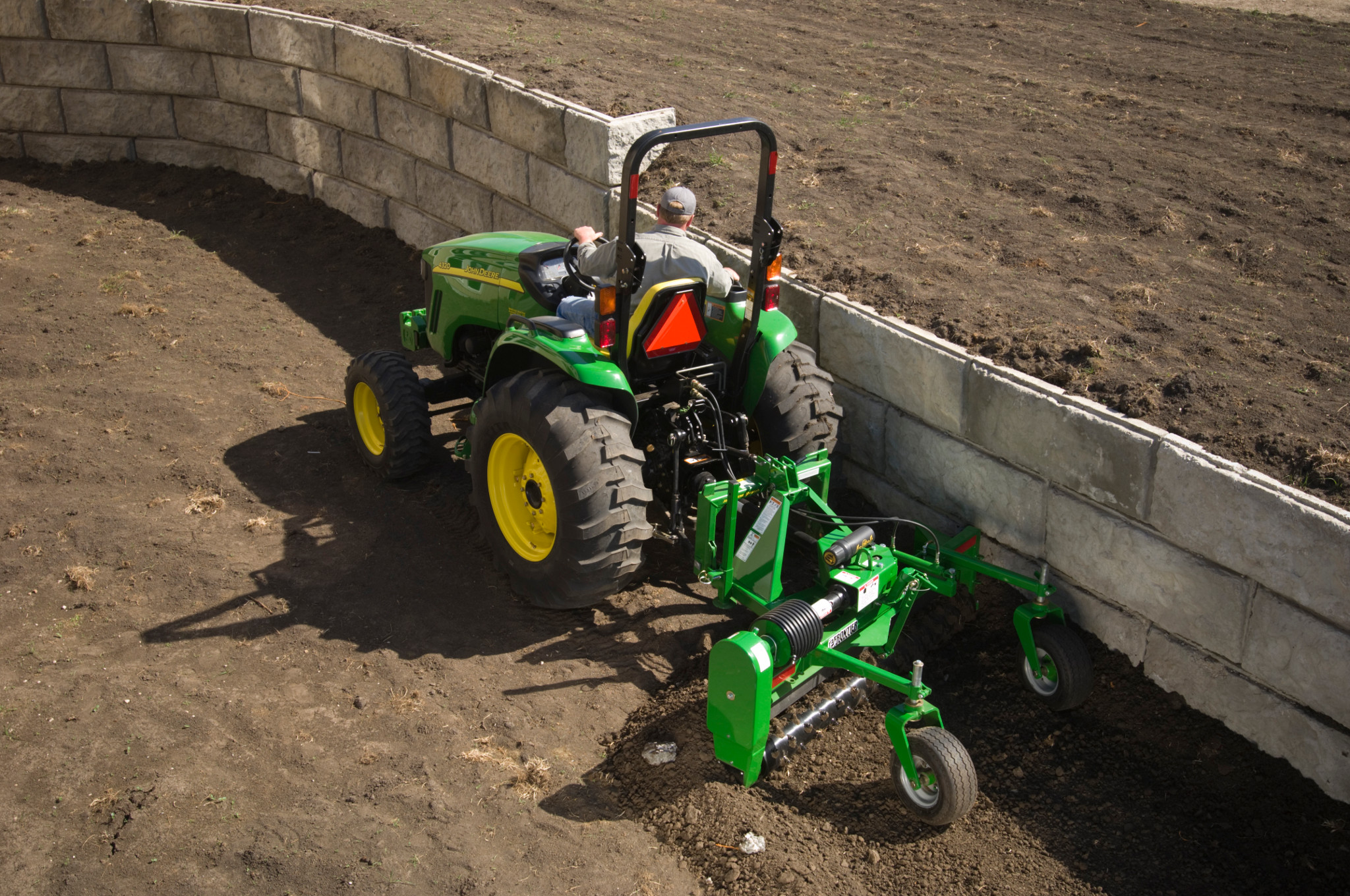

Frontier power rake hitched to a small tractor raking dirt along a stone retaining wall

From the tractor seat, the operator can easily adjust the angle of the Frontier™ PR11 Series Power Rake for directing material by using the hydraulic controls. The steel frame offers excellent visibility of the work being done.

Carbide Teeth Retain Moisture With Fracture Pattern

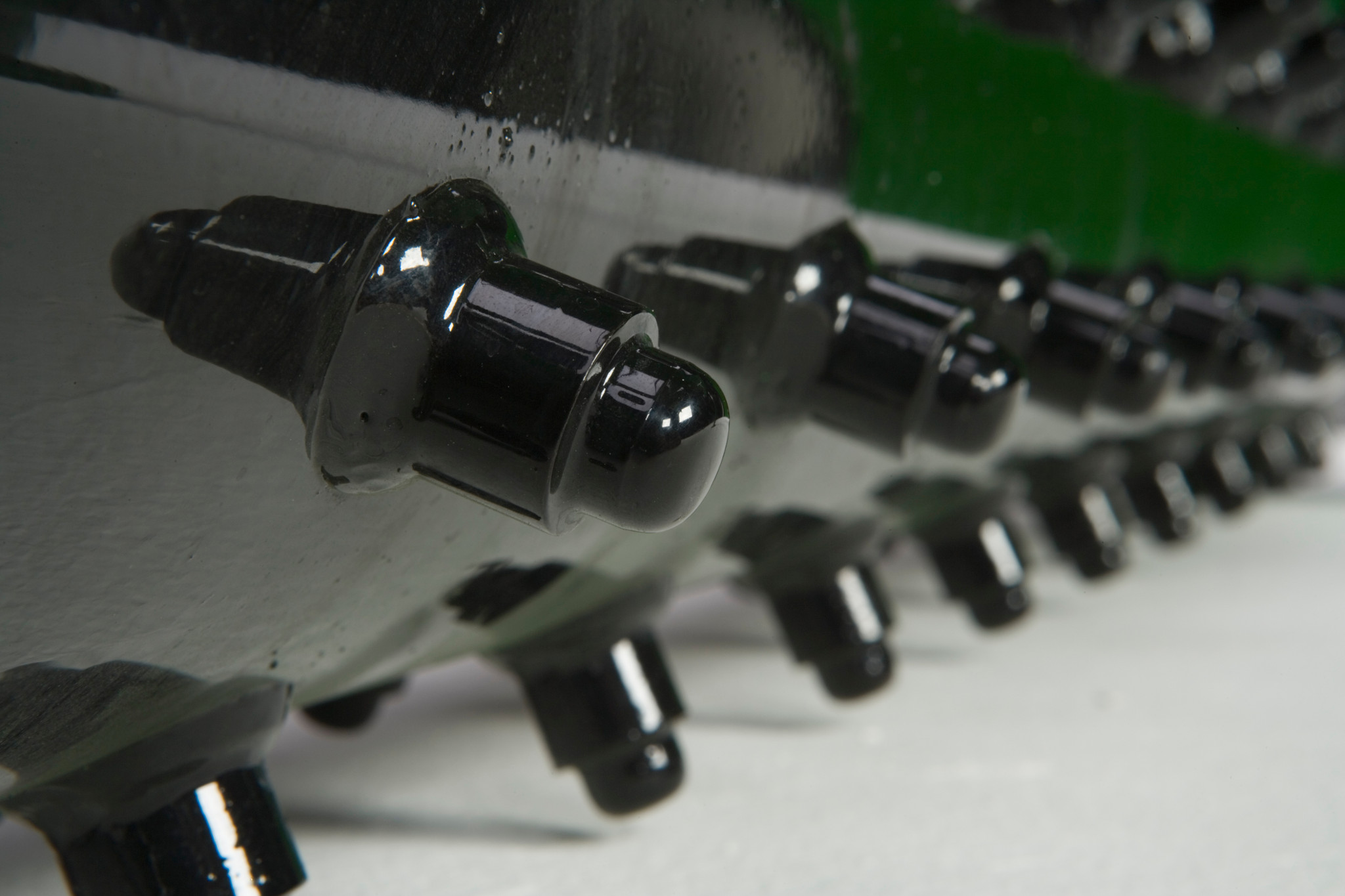

Close-up of a row of black carbide cutting teeth mounted along the edge of a rotating drum

By striking the seedbed sub base, the carbide teeth on Frontier™ PR11 Series Power Rakes leave a fracture pattern that retains moisture. The carbide material provides long life and durability.

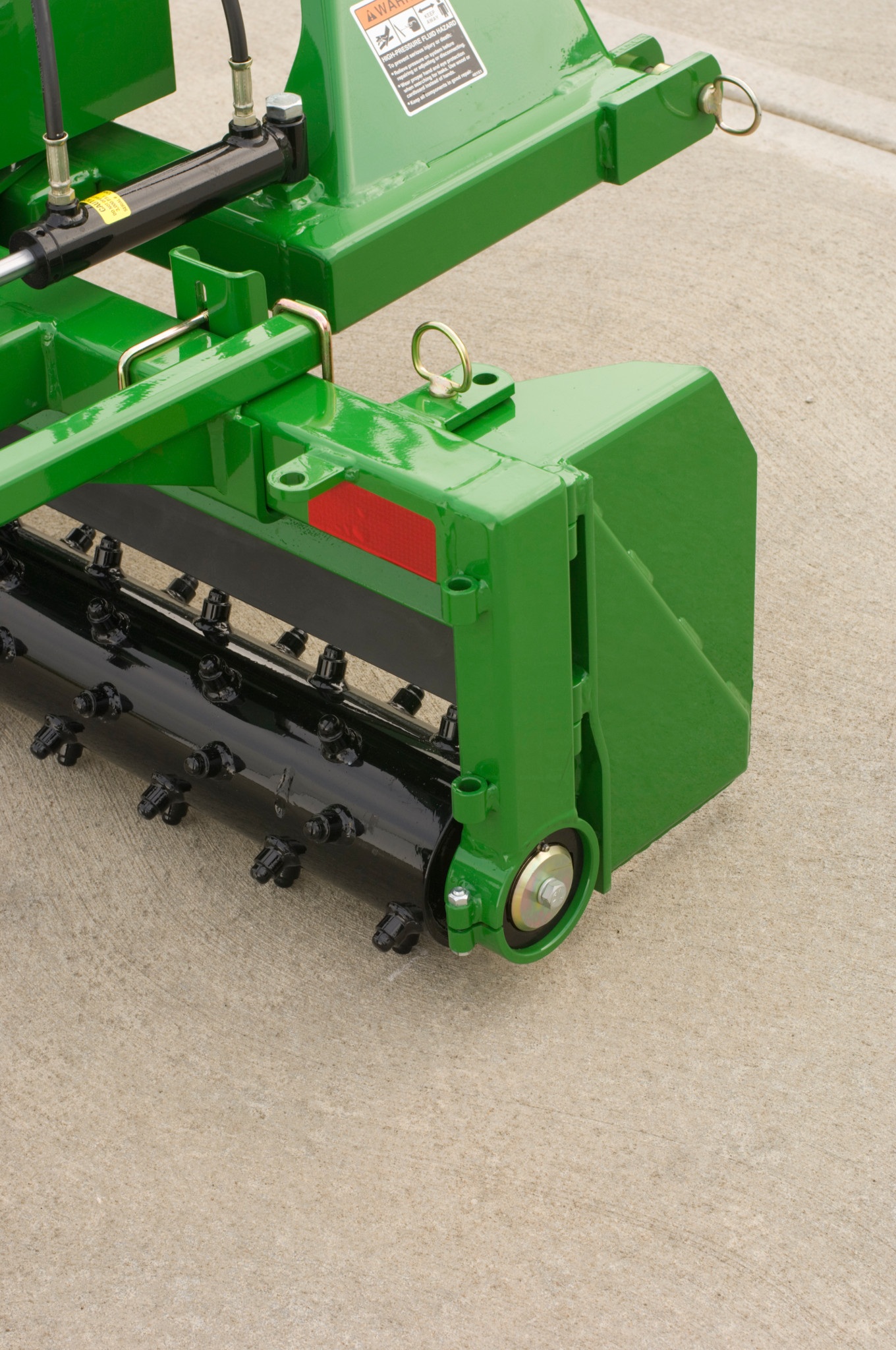

Adjustable End Plate

End plates on the Frontier™ PR11 Series Power Rakes are reinforced with hardened steel for longer life and are easily movable. When the end plate is in the forward position, the power rake becomes a box blade and collects larger material for disposal on the edge of the worksite. In the storage position, the power rake becomes a rear blade, forming windrows of larger material and debris. The end plate can be flared out when working along foundations or sidewalks.

Specifications

Hitch

Compatibility

Category 1

Dimensions

Transport Width	162.6 cm
Transport Width	64 in.
Working Width	142.2 cm
Working Width	56 in.
Machine Length	139.7 cm
Machine Length	55 in.
Working Width At Max Angle	137.2 cm
Working Width At Max Angle	54 in.
Machine Height	36 in.
Machine Height	91.4 cm

Tractor Compatibility

PTO Horsepower	18-35 hp
PTO Horsepower	13.4-26.1 kW
Hydraulic Requirement	1500 rpm
PTO Speed	540 rpm

Setup Time

Labor Hours

0.33 hr

Depth Control

Type	Dual independent adjustable gauge wheels

Parking Stands

Standard

Yes

Weight

Shipping	750 lb.
Shipping	340.2 kg
Operating	575 lb.
Operating	249.5 kg

Warranty

Time Period

1 year

Working angles

Degrees Left or Right

0-15 degree (angle)

Rotor

Quantity Of Carbide Teeth Per Rotor	89
Speed	285 rpm
Direction Of Travel	Against DOT
