Features

Anti-Burying Plate

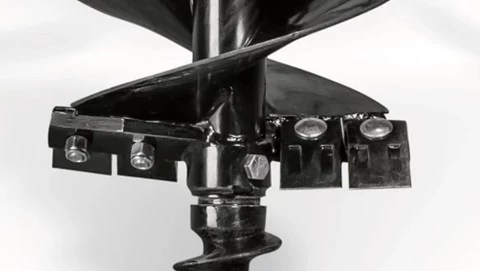

Studio close-up of the anti-burying plate on a black post hole digger's auger

The anti-burying plate positions the teeth at a steeper angle, ensuring aggressive soil penetration. This design prevents the auger from screwing itself into the ground, allowing soil to pulverize efficiently.

Auger Positioning Handle

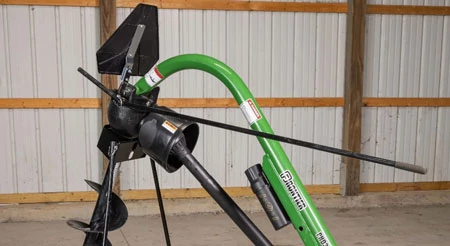

PHD395 post hole digger with auger positioning handle standing in a shop

The auger positioning handle allows the operator to easily align the auger into the desired position from the operator’s seat prior to digging. The auger positioning handle is in base equipment on all PHD Series Post-Hole Diggers.

Hook-Up Parking Stand

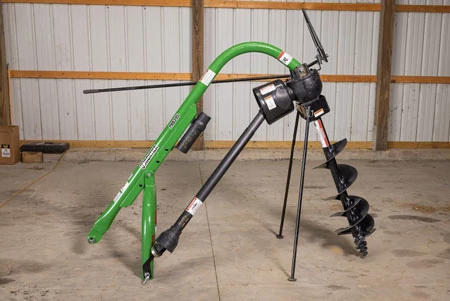

Side view of a post hole digger with green hook-up parking stand set up in a workshop

The removable hook-up parking stand makes mounting and detaching the post hole digger to the tractor a safer, easier, one-person job. While in-between jobs, the parking stand allows the post hole digger to be stored in the upright position.

Specifications

Auger

Auger Dimensions6x36, 9x36, 12x36 in.
Auger Flighting TypeSemi-Double Flighting
Auger Weight9.5 (6x36 in.), 14.5 (9x36 in.), 19.5 (12x36 in.) kg
Auger Weight21 (6x36 in.), 32 (9x36 in.), 43 (12x36 in.) lb.
Model NumberPHD125
Auger PointsCast Ductile Iron or Screw Point
Cutting EdgesReplaceable Cutting Edges

Auger Speed

Rotations Per Minute185

Weight

Shipping (2 Per Case)354 lb.
Shipping (2 Per Case)149.7 kg
Unit50.8 kg
Unit177 lb.

Tractor Compatibility

PTO HP Range15-25 hp
PTO HP Range13.4-18.6 kW

Dimensions

Yoke OD6 cm
Yoke OD2.36 in.
Boom OD2.87 in.
Boom OD7.3 cm

Gearbox

Gear Ratio2.92:1

3-Point Hitch

CategoryCategory 1, Limited Category 1
