Features

Customizable Weight Distribution

Rear left view of a tractor pulling a PF5072 Pro Finisher across an indoor riding arena

The adjustable design of the arena drag allows for controlled weight distribution across the implement. By modifying the drag’s configuration, operators can manage how deep the tines penetrate the footing, which is crucial for maintaining a consistent surface. This feature is especially valuable in arenas with varying traffic levels, ensuring appropriate care for all areas.

Adjustable S-Tines for Optimal Grooming

Side left view of a 4044M tractor with 400E loader dragging a PF5072 Pro Finisher across a fenced-in, dirt paddock

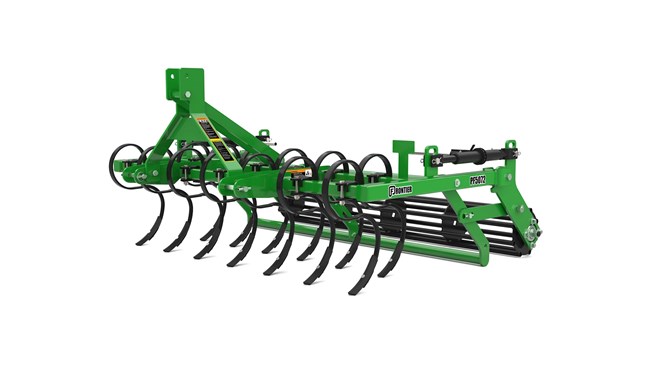

The arena drag features adjustable S-tines that effectively break down hard dirt clumps. This adjustability allows users to customize the drag's performance based on specific arena conditions, whether dealing with hard-packed surfaces or softer footing. Tailoring the implement to the arena’s needs ensures a consistently safe and effective surface.

Compatibility with Various Tractors

Rear right view of a tractor pulling a PF5072 pro finisher across an outdoor horse corral

Designed with quick-hitch compatibility for both medium and large tractors, this arena drag easily integrates into existing equipment lineups. This versatility allows equine businesses to maximize the utility of their current machinery without needing additional investments. Operators can switch between tasks seamlessly, enhancing overall productivity and efficiency.

Specifications

Construction

Hitch/S-Tine Tubing2 x 2 x 0.1875 in.
Hitch/S-Tine Tubing5.1 x 5.1 x 0.5 cm
Outside Tubing2.5 x 2.5 x 0.1875 in.
Outside Tubing6.4 x 6.4 x 0.5 cm
Number of S-Tines13
S-Tine Spacing3.4 in.
S-Tine Spacing8.6 cm

Dimensions

Working Width67.25 in.
Working Width170.8 cm
Overall Width74.25 in.
Overall Width188.6 cm
Overall Height36.25 in.
Overall Height92.1 cm
Overall Length67.75 in.
Overall Length172.1 cm
Height to Hitch Pins16.75 in.
Height to Hitch Pins42.5 cm

Weight

Operating Weight480 lb.
Operating Weight217.7 kg
Implement Code32.16
COG30

Hitch

StyleClevis with pin
CategoryCat 1
iMatch/Quick Hitch CompatibleYes

Tractor Requirements

Engine hp35-50 hp
Engine hp26.1-37.3 kW
