Features

Customizable Weight Distribution

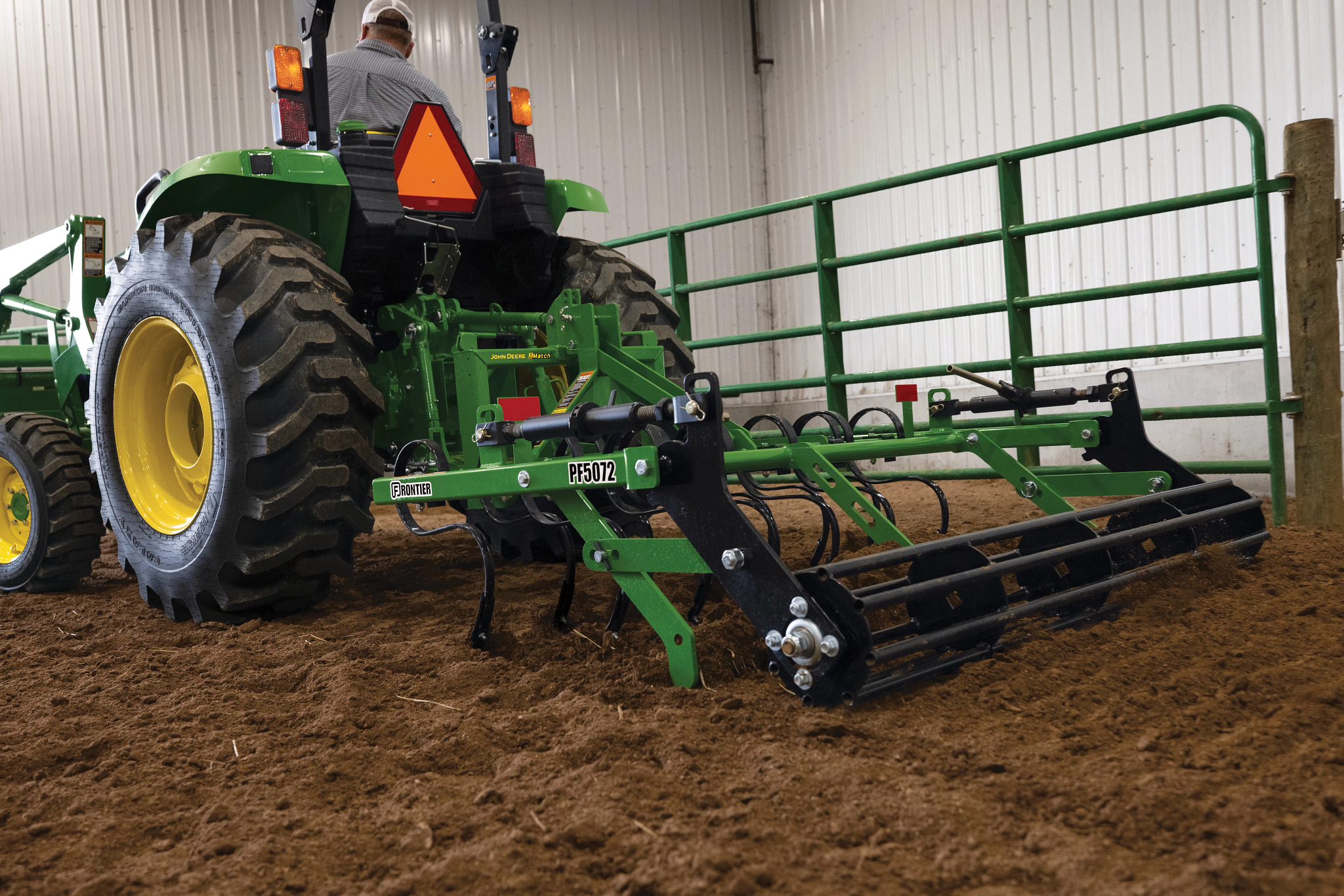

Rear left view of a tractor pulling a PF5072 Pro Finisher across an indoor riding arena

The adjustable design of the arena drag allows for controlled weight distribution across the implement. By modifying the drag’s configuration, operators can manage how deep the tines penetrate the footing, which is crucial for maintaining a consistent surface. This feature is especially valuable in arenas with varying traffic levels, ensuring appropriate care for all areas.

Adjustable S-Tines for Optimal Grooming

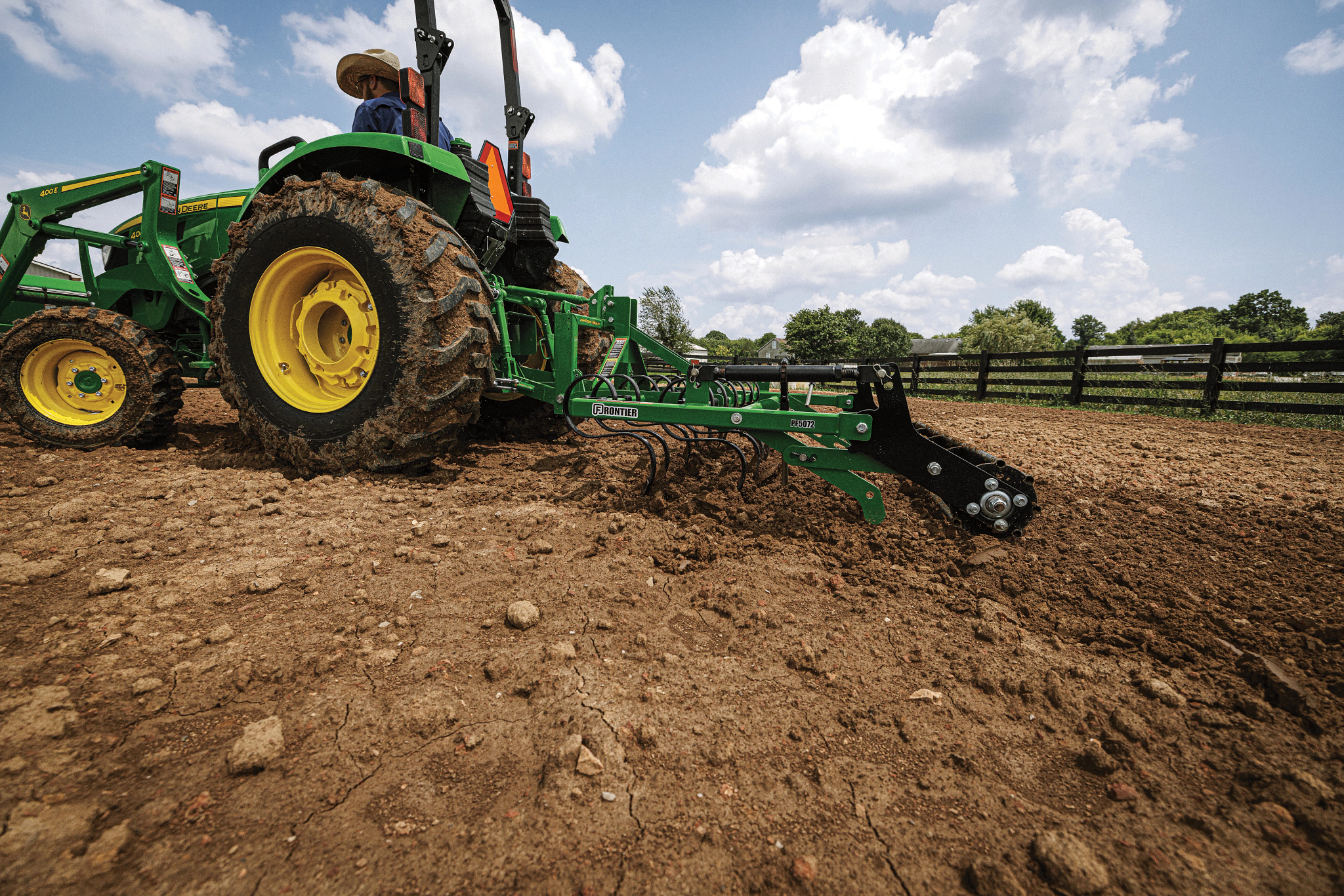

Side left view of a 4044M tractor with 400E loader dragging a PF5072 Pro Finisher across a fenced-in, dirt paddock

The arena drag features adjustable S-tines that effectively break down hard dirt clumps. This adjustability allows users to customize the drag's performance based on specific arena conditions, whether dealing with hard-packed surfaces or softer footing. Tailoring the implement to the arena’s needs ensures a consistently safe and effective surface.

Compatibility with Various Tractors

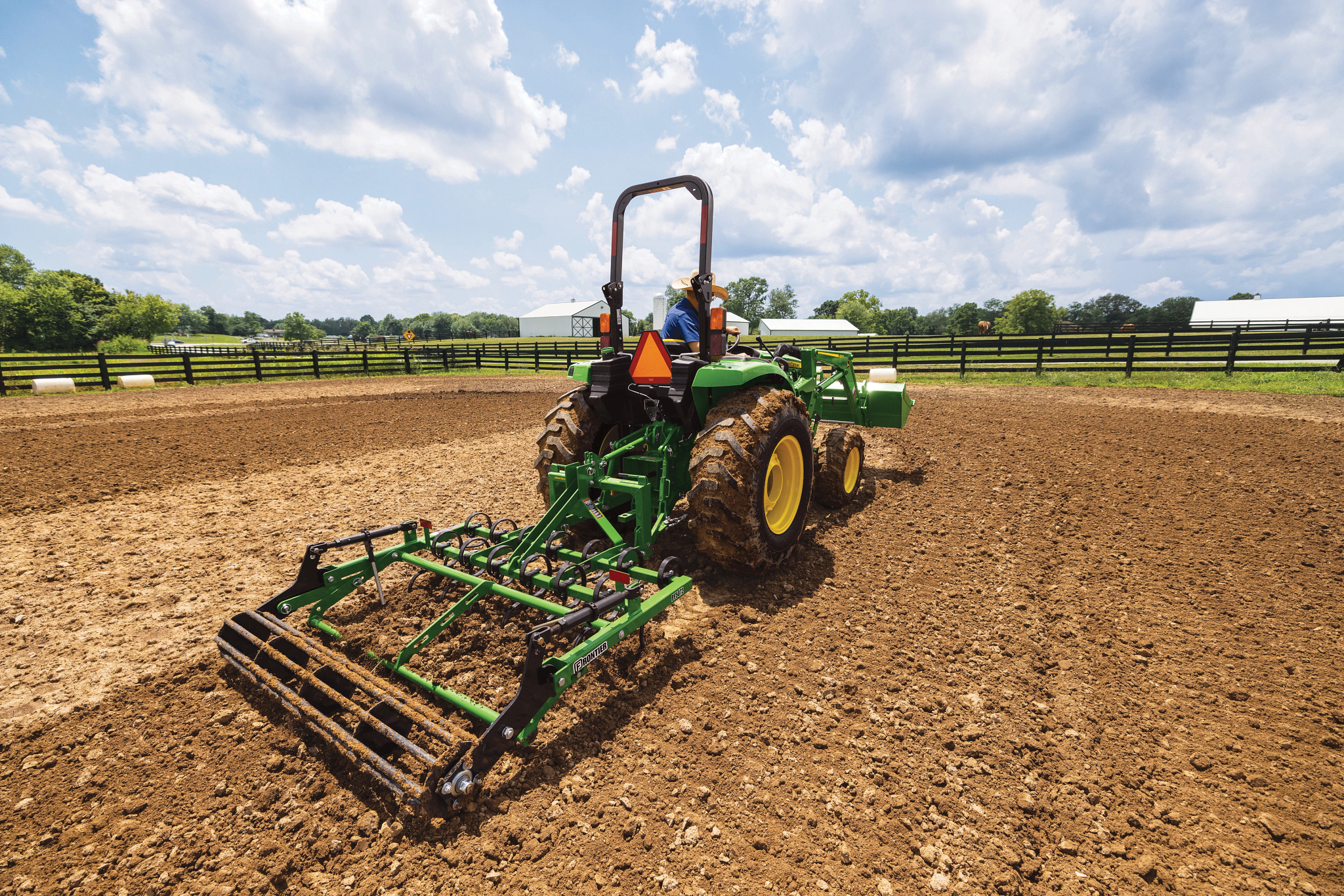

Rear right view of a tractor pulling a PF5072 pro finisher across an outdoor horse corral

Designed with quick-hitch compatibility for both medium and large tractors, this arena drag easily integrates into existing equipment lineups. This versatility allows equine businesses to maximize the utility of their current machinery without needing additional investments. Operators can switch between tasks seamlessly, enhancing overall productivity and efficiency.

Specifications

Construction

Hitch/S-Tine Tubing2 x 2 x 0.1875 in.
Hitch/S-Tine Tubing5.1 x 5.1 x 0.5 cm
Outside Tubing2.5 x 2.5 x 0.1875 in.
Outside Tubing6.4 x 6.4 x 0.5 cm
Number of S-Tines9
S-Tine Spacing3.7 in.
S-Tine Spacing9.4 cm

Dimensions

Working Width49.25 in.
Working Width125.1 cm
Overall Width56.25 in.
Overall Width142.9 cm
Overall Height35 in.
Overall Height88.9 cm
Overall Length67.75 in.
Overall Length172.1 cm
Height to Hitch Pins15.5 in.
Height to Hitch Pins39.4 cm

Weight

Operating Weight375 lb.
Operating Weight170.1 kg
Implement Code25.875
COG32

Hitch

StyleClevis with pin
CategoryCat 1 Limited
iMatch/Quick Hitch CompatibleYes

Tractor Requirements

Engine hp18-35 hp
Engine hp13.4-26.1 kW
