John Deere MS1112
Double tap to zoom
MS1112
Tractor Attachments and Implements
Overview:

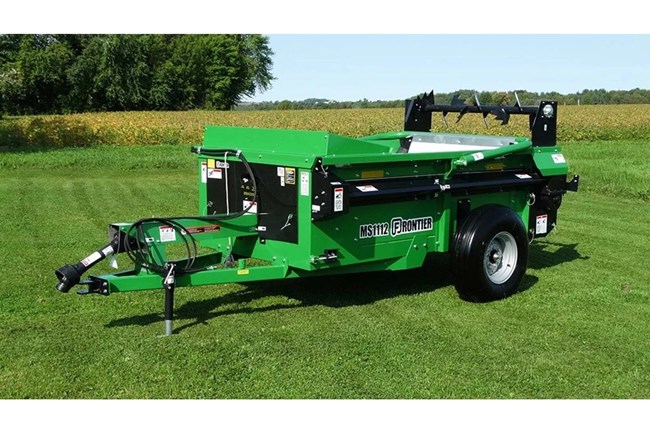

The Frontier™ MS1112 - 130-bu, 540 rpm PTO-Driven Two-Speed Manure Spreader delivers exceptional efficiency with its heavy-duty paddle beater assemblies for aggressive shredding and an innovative poly-bonded floor that minimizes apron drag, ensuring an even and smooth spread for optimal material distribution across fields.
- Heavy-Duty Paddle Beater
- Poly-Bonded Floor
- Field-Installed Top Beater Kits
- Hydraulic Conversion Kits
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Heavy-Duty Paddle Beater Assemblies
The heavy-duty paddle beater assemblies on the MS11 Series Small Manure Spreaders ensure aggressive shredding action, while the large-diameter beaters deliver greater tip speed for wide, even, and chunk-free spread patterns.

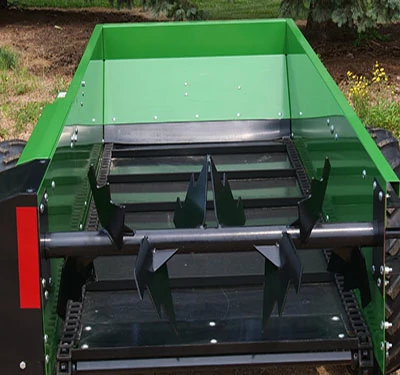

Poly-Bonded Floor
All models come with a poly-bonded floor to reduce apron drag.
Years of Trouble-Free Service
The manure spreaders sides are constructed of durable powder-coated steel.
Specifications
Paddles
| Horizontal | 10 |
| Replaceable | No |
Dimensions
| Inside Depth | 22 in. |
| Inside Length | 3.2 m |
| Overall Loading Height - Top Of Flare | 43.5 in. |
| Inside Width | 122 cm |
| Horizontal Beater Configuration | 4.66 m |
| Top Of Flare Width | 137 cm |
| Overall Width With Standard Tires | 80 in. |
| Overall Width With Standard Tires | 203 cm |
| Inside Depth | 56 cm |
| Inside Length | 127.2 in. |
| Overall Loading Height - Top Of Flare | 110 cm |
| Inside Width | 48 in. |
| Horizontal Beater Configuration | 15.3 ft |
| Top Of Flare Width | 54 in. |
Beaters
| Lower | Yes |
| Lower | 22 in. |
| Lower | 56 cm |
Capacity
| Struck Level | 2.124 m³ |
| Struck Level | 75 cu ft |
| Heaped | 125 bu |
| Heaped | 4.405 m³ |
Weight
| Implement With Base Tire | 726 kg |
| Implement With Base Tire | 1600 lb. |
| Towing Unit Minimum Weight | 4547 lb. |
| Towing Unit Minimum Weight | 2062 kg |
Rear pan
| Standard | No |
| Optional | Yes |
Drive System
| Chain Type | 67XH |
| PTO Drive | Yes |
Wheels And Tires
| Spindle Size | 5 cm |
| Spindle Size | 2 in. |
| Hub Style | Greaseable |
| Tire Size | 10x15 |
| Axle | Single |
Setup Time
| Labor Hours | 0.5 |
Warranty
| Time Period | 1 year |
Lighting, Marking, And Safety
| Safety Tow Chain | Standard |
| Jack | Standard |
Construction
| Box | Corrosion resistant galvanized steel |
| Floor | Bonded poly |
PTO drive
| Standard | 540 rpm |
