John Deere MG20F

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / MG20F

Double tap to zoom



Features

Full Upper and Lower Tines

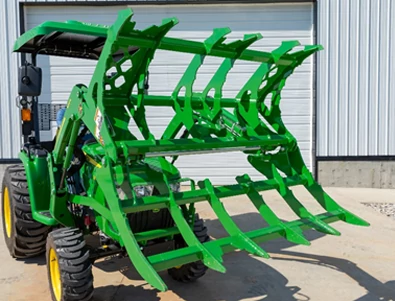

Front right view of an MG20F series mechanical grapple open wide on the front of a tractor in a shop yard

With teeth on both the upper and lower tines, the MG20F is crafted to securely grab, transport, and maintain a hold on materials, ensuring efficacy in various tasks from brush clearing to moving large loads.

Lower Cost with No Third Hydraulic Function Required

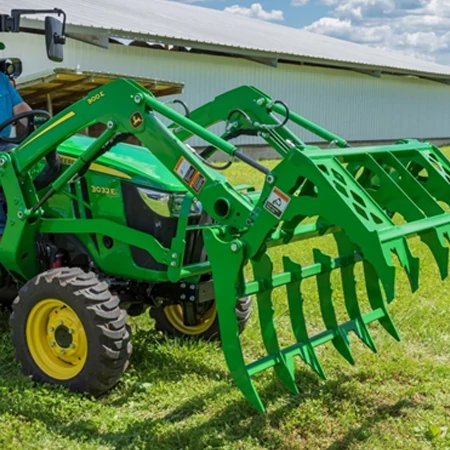

Front right view of an MG20F mechanical grapple with jaws open on a 3032E compact utility tractor

The MG20F Mechanical Grapple eliminates the need for a third hydraulic function, making it a cost-effective choice. It is secured on the loader frame while the bucket cylinders operate the upper section, providing efficient grappling action.

Quick-Attach Loader Carrier Compatibility

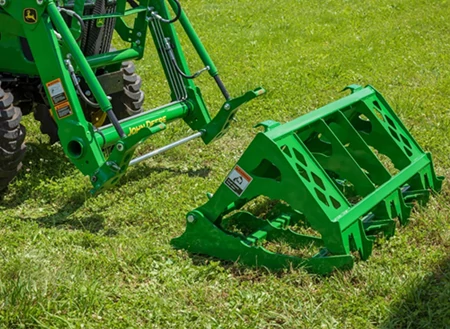

Right side view of an MG20F root grapple lying in the grass in front of a loader with quick-attach capabilities

The MG20F is compatible with NSL (non self-leveling) 120R, 220R, and 300E Loaders using a quick-attach system. This design adds convenience and flexibility to attach and detach the grapple easily.

Specifications

Dimensions

Height (Open)32.66 in.
Height (Open)82.95 cm
Width136.85 cm
Width53.88 in.
Height (Closed)23.8 in.
Height (Closed)60.45 cm

Weight

Shipping316 lb.
Shipping143.33 kg
Operational281 lb.
Operational127.46 kg

Capacity

Maximum Clamping Diameter68.58 cm
Maximum Clamping Diameter27 in.
Lift Capacity544.31 kg
Lift Capacity1200 lb.
Minimum Clamping Diameter19.05 cm
Minimum Clamping Diameter7.5 in.

Loader Interface

CompatibilityJohn Deere Quick Attach- See Compatibility Chart

Additional Information

Date Collected2021-11-08
