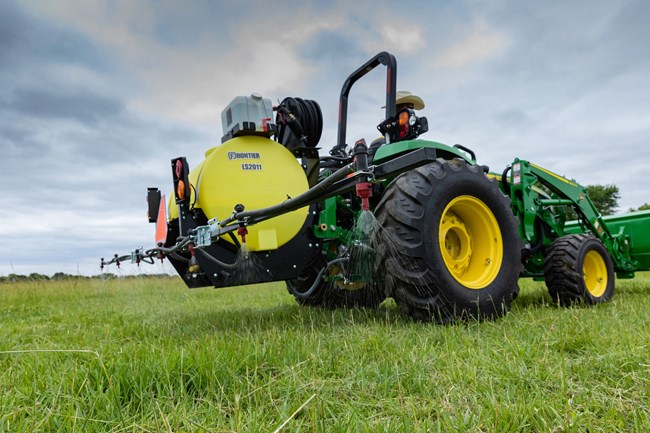

John Deere LS2015

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / LS2015

Double tap to zoom



Features

Tank Components for Consistent Placement of Chemicals

Close-up of the jet recirculation stream within a yellow LS2004 3-Point Mounted Liquid Sprayer's tank

Jet agitation or recirculation ensures even mixture of material from start to finish. With an in-line filter and shutoff valve, a dirty filter can be cleaned whenever needed, even if the tank is full. When you’re done, a tank sump allows for complete drainage.

Reach Stubborn Weeds

Close-up of a hose reel mounted on a yellow agricultural sprayer, featuring a coiled black hose and fittings, with a grassy field and trees in the background.

For hard-to-reach or small areas, a 100-ft (30.5-m) hose reel kit is available (pictured). All models in the LS20 Series Sprayers include a hand-held spray gun with a 30-ft (9.14-m) hose as standard equipment.

iMatch™ Quick-Hitch Compatible for Easy Hookup

Top view of the green frame, yellow tank, and connection point between an LS liquid sprayer and tractor using iMatch™ Quick-Hitch compatibility

Implement-to-tractor hookup is simple with iMatch™ Quick-Hitch Category 1 compatibility.

Specifications

Boom

Sizes18, 24, 30 ft, Boomless: 30 ft; 5.5, 7.3, 9.1 m, Boomless: 9.1 m
StructureSquare tube construction; Sections: Three
FoldManual
BreakawayRear

Application

Nozzle TypeNozzle body: 1/4 turn diaphragm with check valve
Nozzle TipQuantity: 3 (boomless), 7, 14, 18; Type: Air induction, 110-degree flat spray (Boomless: flood)
Nozzle Tip Size1.5 L/min, 0.4 gpm; Boomless: 1.9 L/min, 0.5 gpm
Nozzle Spacing76, 51 cm, 30, 20 in.; Boomless: N/A
Spot SprayerSpray gun, 30 ft (9.1 m) hose

Dimensions

Working Width18, 24, 30 ft
Working Width5.5, 7.3, 9.1 m
Working Width - Boomless30 ft
Working Width - Boomless9.1 m
Transport Width6.4, 6.3; Boomless: 4.6 ft
Transport Width1.96, 1.93; Boomless: 1.4 m
Length57, 54; Boomless: 51 in.
Length145, 137; Boomless: 130 cm
Height57, 83, 89; Boomless: 57 in.
Height145, 211, 226; Boomless: 145 cm

Weight

Dry Weight293-472 lb.
Dry Weight133-214 kg
Laden Weight1585-1806 lb.
Laden Weight719-819 kg

Control System

Pump ControlPTO
Pressure ControlAdjustable
Max Working Pressure150 psi
Max Working Pressure10.3 bar
Section Control6B control valves
AgitationJet agitation

Tank

Sprayer Tank CapacitySprayer tank: 150; Fresh water tank: 5 gal.
Sprayer Tank CapacitySprayer tank: 567.8; Fresh water tank: 19 L

Pump

TypeDry boom
PTOStandard 6-roller pump: Hypro 6 roller PTO cast iron (6500C); Optional 6-roller pump: Hypro 6 roller PTO silver cast (6500XL); Optional 7-roller pump: Hypro 7 roller PTO cast iron (7700C); Optional 7-roller pump: Hypro 7 roller PTO silver cast (7700XL)
Flow RateHypro 6-roller pump: max flow at 540 rpm: 36.7 L/min, 9.7 gpm; Hypro 7-roller pump: max flow at 540 rpm: 53.8 L/min, 14.2 gpm
Max Pressure20.7 bar, 300 psi (6-roller pump); 13.8 bar/ 200 psi (7-roller pump)
Hose Size0.5 in., 1.3 cm

Hitch

TypeCategory 2; Quick hitch compatible

Options

EquipmentOptional hose reel, 100 ft (30.5 m) hose

Safety features

Transport Lights7-pin trailer plug (SAE J560)

Additional Information

Date Collected2020-08-01
