John Deere LS2006
Double tap to zoom
LS2006
Tractor Attachments and Implements
Overview:

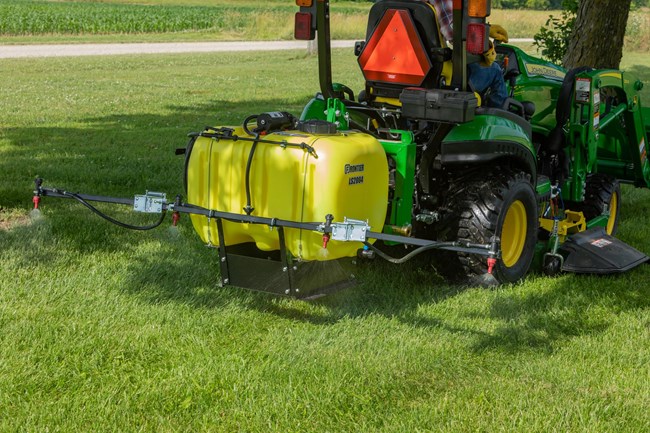

The Frontier™ LS2006 3-Point Mounted Liquid Sprayer delivers cost-effective, reliable spraying across varied agricultural and turf applications.
- Working Width: 12.5 ft (3.8 m), 18 ft (5.5 m), or 24 ft (7.3 m)
- Tank Capacity: 60 gal. (227 L)
- Folding Breakaway Boom or Boomless Option
- PTO Roller Pump Standard
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

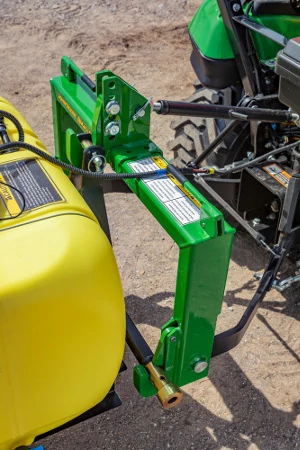

iMatch™ Quick-Hitch Compatible for Easy Hookup
Implement-to-tractor hookup is simple with iMatch™ Quick-Hitch Category 1 compatibility.
Reach Stubborn Weeds

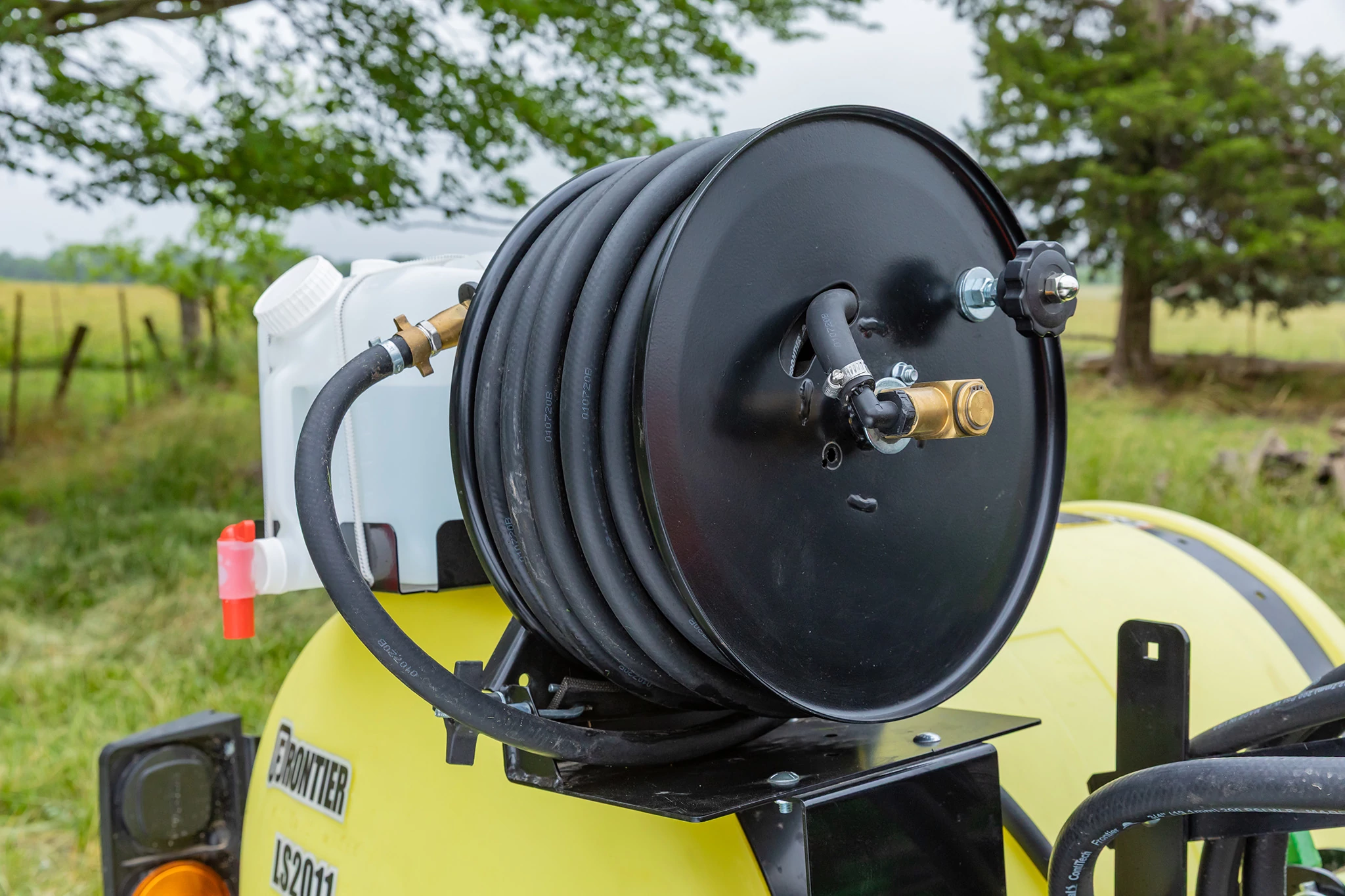

For hard-to-reach or small areas, a 100-ft (30.5-m) hose reel kit is available (pictured). All models in the LS20 Series Sprayers include a hand-held spray gun with a 30-ft (9.14-m) hose as standard equipment.
Tank Components for Consistent Placement of Chemicals

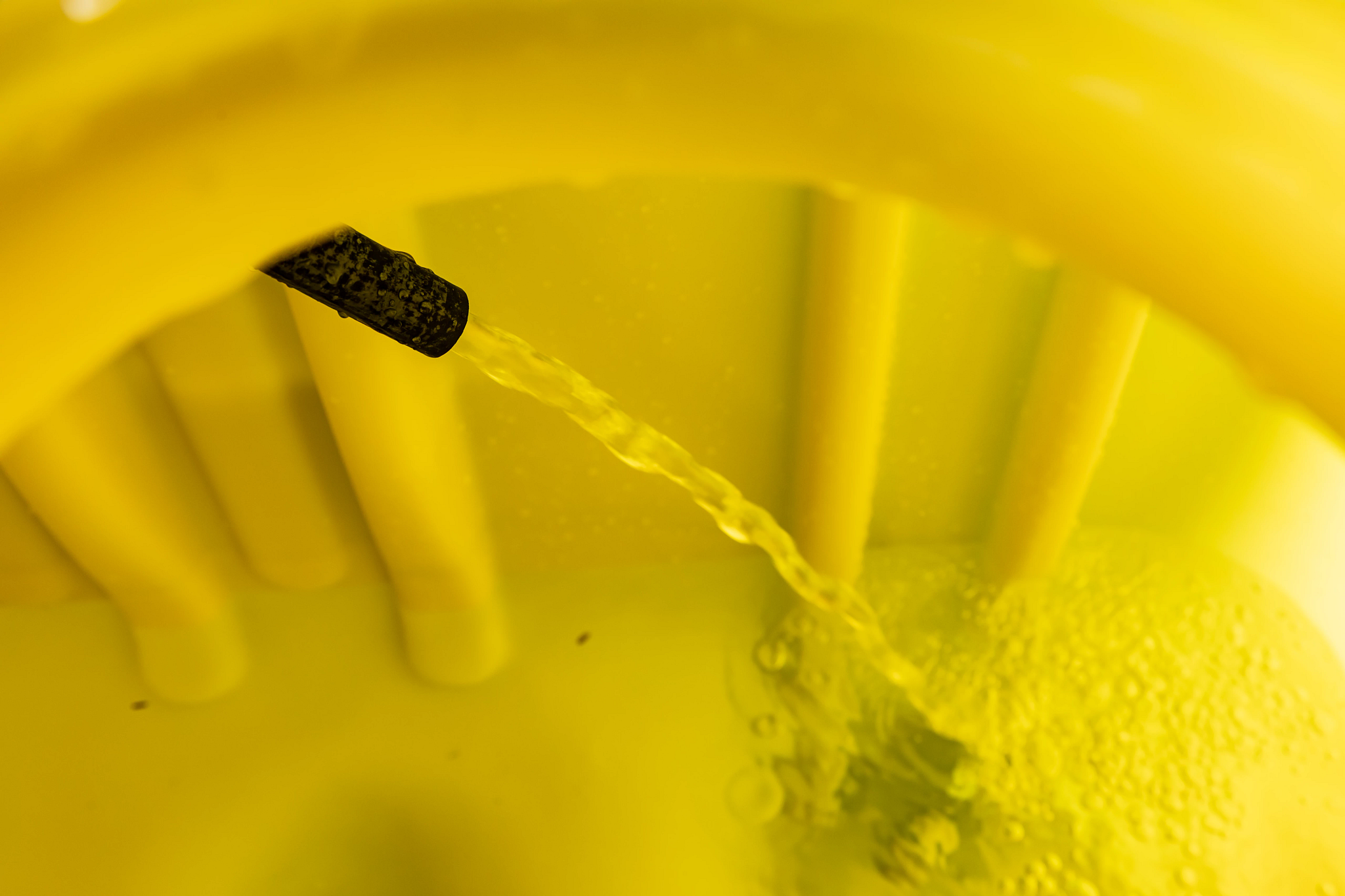

Jet agitation or recirculation ensures even mixture of material from start to finish. With an in-line filter and shutoff valve, a dirty filter can be cleaned whenever needed, even if the tank is full. When you’re done, a tank sump allows for complete drainage.
Specifications
Boom
| Sizes | 12.5, 18, 24 ft, Boomless: 24 ft; 3.8, 5.5, Boomless: 7.3 m |
| Structure | Square tube construction, three sections |
| Fold | Manual |
| Breakaway | Rear |
Application
| Nozzle Type | Nozzle body: 1/4 turn diaphragm with check valve |
| Nozzle Tip | Quantity: 3 (boomless), 5, 7; Type: Air induction, 110-degree flat spray (Boomless: flood) |
| Nozzle Tip Size | 1.5 L/min, 0.4 gpm; Boomless: 1.9 L/min, 0.5 gpm |
| Nozzle Spacing | 76 cm, 30 in.; Boomless: N/A |
| Spot Sprayer | Spray gun, 30 ft (9.1 m) hose |
Dimensions
| Working Width | 12.5, 18 ft |
| Working Width | 3.8, 5.5 m |
| Working Width - Boomless | 24 ft |
| Working Width - Boomless | 7.3 m |
| Transport Width | 4.25, 6.4; Boomless: 2.9 ft |
| Transport Width | 1.32, 1.96; Boomless: 0.89 m |
| Length | 43, 45; Boomless: 39 in. |
| Length | 109, 114; Boomless: 99 cm |
| Height | 40; Boomless: 40 in. |
| Height | 102; Boomless: 102 cm |
Weight
| Dry Weight | 109-230 lb. |
| Dry Weight | 49-104 kg |
| Laden Weight | 651-793 lb. |
| Laden Weight | 295-335 kg |
Control System
| Pump Control | PTO |
| Pressure Control | Adjustable |
| Max Working Pressure | 150 psi |
| Max Working Pressure | 10.3 bar |
| Section Control | 6B control valves (boomless inline valves) |
| Agitation | Jet agitation |
Tank
| Sprayer Tank Capacity | 60 gal. |
| Sprayer Tank Capacity | 227 L |
Pump
| Type | Dry boom |
| PTO | Standard 6-roller pump: Hypro 6 roller PTO cast iron (6500C); Optional 6-roller pump: Hypro 6 roller PTO silver cast (6500XL) |
| Flow Rate | Hypro 6-roller pump maximum flow at 540 rpm: 36.7 L/min, 9.7 gpm |
| Max Pressure | 20.7 bar, 300 psi (6-roller pump) |
| Hose Size | 0.5 in., 1.3 cm |
Hitch
| Type | Category 1; Quick hitch compatible |
Options
| Equipment | Optional hose reel, 100 ft (30.5 m) hose |
Additional Information
| Date Collected | 2020-08-01 |
