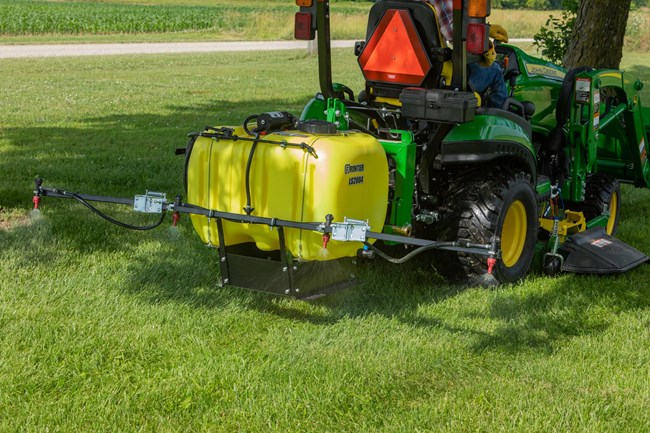

John Deere LS2004

New Products / John Deere / John Deere Products / Tractors / Tractor Attachments and Implements / LS2004

Double tap to zoom



Features

iMatch™ Quick-Hitch Compatible for Easy Hookup

Top view of the green frame, yellow tank, and connection point between an LS liquid sprayer and tractor using iMatch™ Quick-Hitch compatibility

Implement-to-tractor hookup is simple with iMatch™ Quick-Hitch Category 1 compatibility.

Reach Stubborn Weeds

Close-up of a hose reel mounted on a yellow agricultural sprayer, featuring a coiled black hose and fittings, with a grassy field and trees in the background.

For hard-to-reach or small areas, a 100-ft (30.5-m) hose reel kit is available (pictured). All models in the LS20 Series Sprayers include a hand-held spray gun with a 30-ft (9.14-m) hose as standard equipment.

Tank Components for Consistent Placement of Chemicals

Close-up of the jet recirculation stream within a yellow LS2004 3-Point Mounted Liquid Sprayer's tank

Jet agitation or recirculation ensures even mixture of material from start to finish. With an in-line filter and shutoff valve, a dirty filter can be cleaned whenever needed, even if the tank is full. When you’re done, a tank sump allows for complete drainage.

Specifications

Boom

Sizes3 m, 3.8 m; 10 ft, 12.5 ft; Boomless: 7.3 m, 24 ft
StructureSquare tube construction, three sections
FoldManual
BreakawayRear

Application

Nozzle TypeNozzle body: 1/4 turn diaphragm with check valve
Nozzle TipQuantity: three (boomless), four, five; Type: Air induction, 110-degree flat spray (boomless: flood)
Nozzle Tip Size0.4 gpm, 1.5 L/min; Boomless: 0.5 gpm, 1.9 L/min
Nozzle Spacing76 cm, 30 in.; Boomless: N/A
Spot SprayerSprayer wand, spray gun; Hose length: 6.1 m, 20 ft

Dimensions

Working Width10, 12.5 ft
Working Width3, 3.8 m
Working Width - Boomless24 ft
Working Width - Boomless7.3 m
Transport Width3.6, 4.33; Boomless: 2.75 ft
Transport Width1.12, 1.32; Boomless: 0.84 m
Length32; Boomless: 28 in.
Length81.28; Boomless: 71 cm
Height32, 34; Boomless: 34 in.
Height81, 86; Boomless: 86 cm

Weight

Dry Weight79-96 lb.
Dry Weight36-44 kg
Laden Weight79-96 lb.
Laden Weight36-44 kg

Control System

Pump ControlInline switch
Pressure ControlAdjustable; Not applicable on 3 m (10 ft) boom
Max Working Pressure100 psi
Max Working Pressure6.9 bar
Section ControlInline valves
AgitationExcess flow plumb to tank

Tank

Sprayer Tank Capacity45 gal.
Sprayer Tank Capacity170.3 L

Tractor Compatibility

Voltage12
Current DrawAt 6.9 bar (100 psi): 10 amp, 17.5 amp

Pump

TypeDry boom
ElectricStandard: Electric diaphragm, 15.5 L/min, 4.1 gpm; Optional: Electric diaphragm, 8.3 L/min, 2.2 gpm
Flow RateElectric pump maximum flow: 8.3 L/min, 2.2 gpm; 15.5 L/min, 4.1 gpm
Max PressureElectric pump: 6.9 bar, 100 psi
Hose Size0.95 cm, 1.3 cm; 3/8 in., 1/2 in.; Boomless: 1.3 cm, 0.5 in.

Hitch

TypeLimited Category 1/Category 1; Quick hitch compatible

Options

EquipmentOptional hose reel; Hose length: 30.5 m, 100 ft

Additional Information

Date Collected2020-08-01
