John Deere LS1130BL

Double tap to zoom

LS1130BL

Tractor Attachments and Implements

Overview:

The Frontier™ LS1130BL Boomless 3-Point Mounted Liquid Sprayer delivers efficient and precise liquid application, enhancing crop yield and maximizing productivity with its robust design and versatile functionality.

Up to 30 ft. (9.14 m) working width
2 Tank Options – 250- or 300-gal. (946.4- or 1135.6-L)
Fully-Integrated Parking Stand With Built-In Pallet Fork Pockets
Category 2 and 3 Quick Coupler Compatible

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

Easy to Maneuver

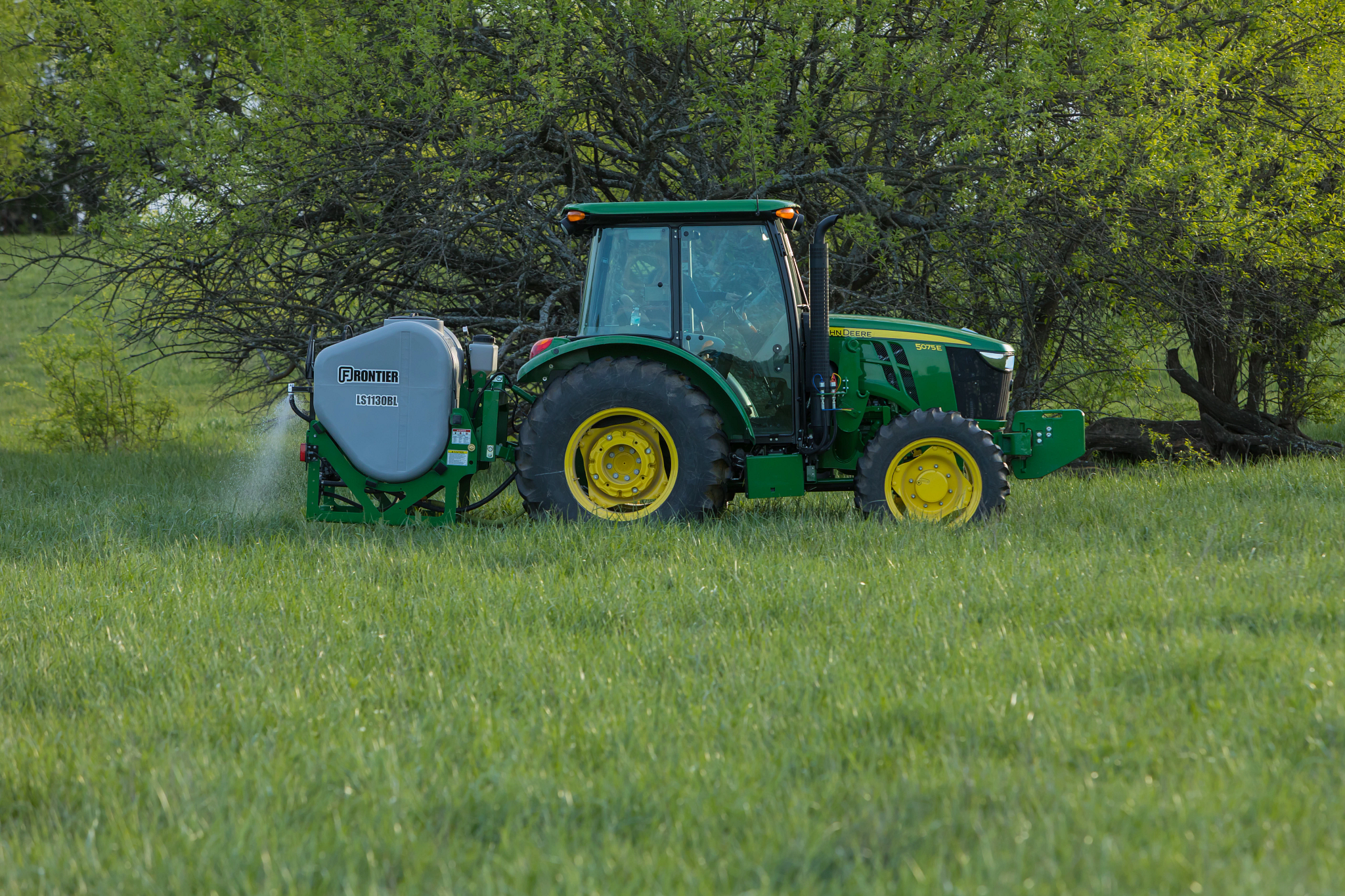

Tractor with yellow wheels pulling a tank sprayer, parked in a grassy field with leafy trees in the background on a sunny day.

The LS1130BL boomless model uses 2 nozzles located directly behind the tank that provide a 30-ft (9.1 m) maximum spray width. It’s perfect for working in areas with trees or other obstacles to work around.

Easy loading and unloading

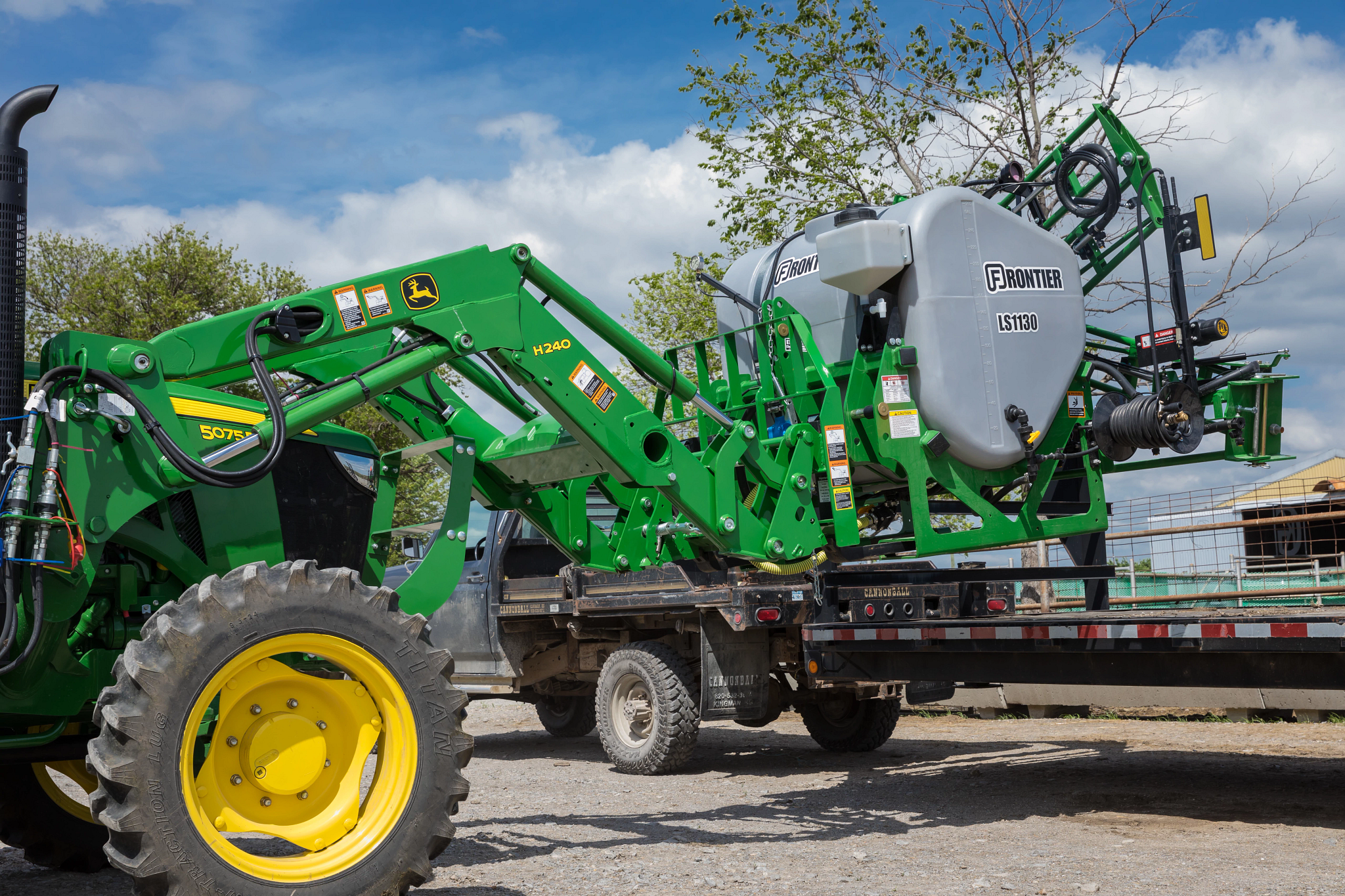

John Deere tractor with a front loader lifting and loading a large sprayer tank labeled onto a flatbed truck outdoors under a partly cloudy sky.

Tube frame design includes a parking stand with integrated pallet fork tine pockets for easy loading, unloading, and positioning for storage

Teardrop-Shaped Tank Allows for Quick Clean-up

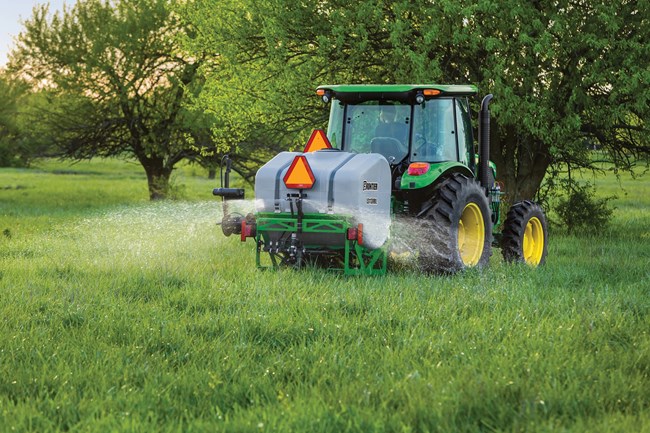

Field view of LS1130 Sprayer on 5075E Tractor spraying in grassy field

The shape of the tank allows the liquid inside the tank to completely drain out, making it faster to switch from one chemical to the next, or prepare for storage.

Specifications

Speed

Application Speed	4-10 mph
Application Speed	6.4-16.1 km/h
Maximum Transport Speed	25 mph
Maximum Transport Speed	40 km/h

Tractor Compatibility

Horsepower Range	50 hp
Horsepower Range	37.3 kW

Pump

Hydraulic	FMC-75-HYD-204 (pump 75 / motor 204)
Flow Rate	Maximium with PTO pump: 79.5 L/min, 21 gpm; With hydraulic pump: 102.2 L/min, 27 gpm

Dimensions

Working Width	30 ft
Working Width	9.14 m
Transport Width	6.9 ft
Transport Width	2.1 m

Weight

Dry Weight	635, 650 lb.
Dry Weight	288, 295 kg
Loaded with Options	2721 (Option one); 3154 (Option two) lb.
Loaded with Options	1234 (Option one); 1431 (Option two) kg

Tank

Sprayer Tank Capacity	250 (Tank one); 300 (Tank two) gal.
Sprayer Tank Capacity	946 (Tank one); 1136 (Tank two) L

Boom

Structure

Boom-less

Hitch

Type	Category 2 and 3, 3-point hitch with quick-hitch

Frame

Structure

Tube frame

Application

Section Valves	SV.1999A.1V.WP
Nozzle Tip	Hypro XT-Boom Xtender XT020
Nozzle Spacing	Off center: 50.8cm, 20 in.

Safety features

Transport Lights	Installed
Stand	Fully integrated with pallet fork insert
