John Deere LR5060
Double tap to zoom

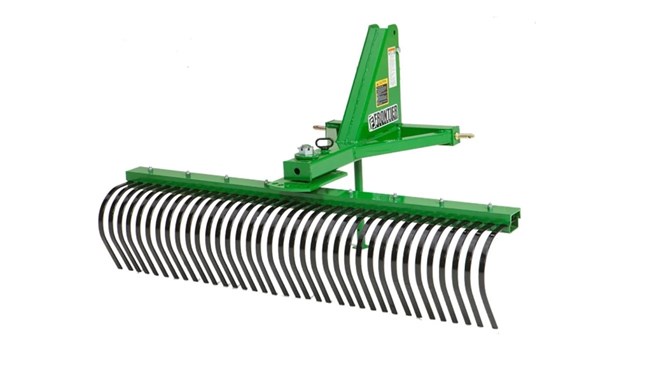

LR5060
Tractor Attachments and Implements
Overview:
The Frontier™ LR5060 Standard Duty Landscape Rake offers versatility and durability for efficient soil leveling and debris removal. It combines a strong steel frame with adjustable tine beam positions for superior raking performance and compatibility with Category 1 3-point and iMatch™ hitches.
- Width: 5 ft.
- Rotate a Full 360 Degrees With 5 Forward and 5 Reverse Settings
- iMatch™ Compatible
- Strong Tubular Steel Frame
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Compatible With Tractors Equipped With Category 1 3-Point and iMatch™ Hitches
These standard-duty landscape rakes are compatible with tractors equipped with Category 1 3-point hitches and are also iMatch™ hitch. iMatch compatibility ensures a quick and efficient hookup.
Tubular Steel Frame and Angled Tine Beam
A strong, tubular-steel frame supports an angled tine beam for superior performance.
Multiple Positions for Desired Raking Profile
Standard-duty landscaping rake models feature high-strength, formed tine beams constructed with a slotted, bolt-in mounting system. The spring steel tines are spaced at 1-in. (2.5-cm) intervals for exceptional performance in pick-up, grooming, and material distribution. This mounting ensures positive spacing and alignment over each tine.
Specifications
Hitch
| iMatch™ compatible (Cat.1) | Yes |
| Compatibility | Category 1 |
Duty
| Type | Standard |
Weight
| Shipping | 581 lb. |
| Shipping | 256.7 kg |
| Operating | 248 lb. |
| Operating | 112.5 kg |
Dimensions
| Working Width | 152.4 cm |
| Working Width | 60 in. |
Tines
| Dimensions | 0.8x2.5 cm |
| Dimensions | 0.3125x1 in. |
| Quantity | 30 |
| Spacing | 2.54 cm |
| Spacing | 1 in. |
Tractor Compatibility
| PTO Horsepower | 50 hp |
| PTO Horsepower | 11.2-26.1 kW |
Pivot
| Degrees | 360 degree (angle) |
Warranty
| Time Period | 1 year |
Raking angle
| Positions | Forward: 5; Reverse: 5 |
| Degrees | 0, 15, 30 degree (angle) |
Shipping
| Configuration | Two units |
Parking Stands
| Standard | Yes |
